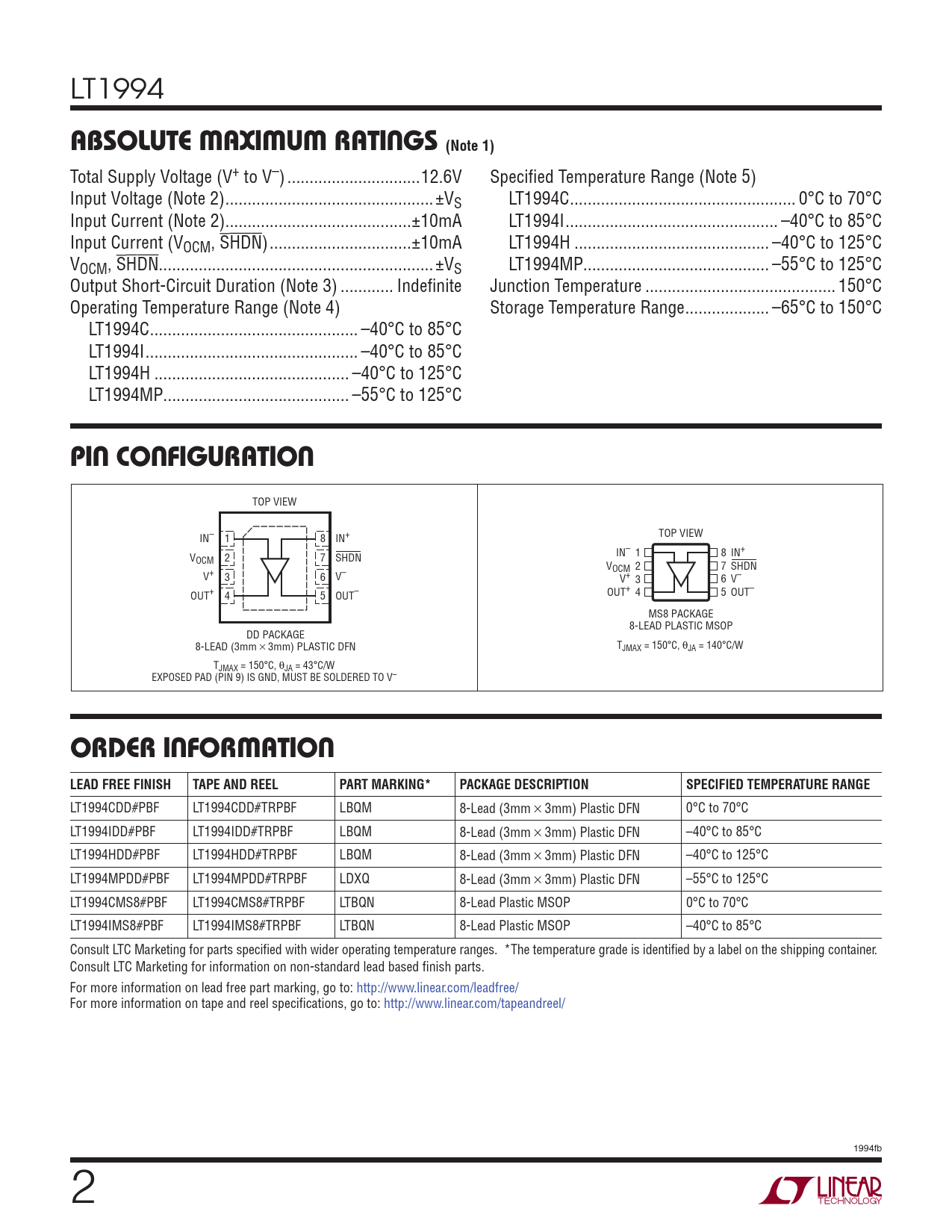

Datasheet LT1994 (Analog Devices) - 2

LT1994
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) ..12.6V Specifi ed Temperature Range (Note 5) Input Voltage (Note 2) ... ±VS LT1994C ... 0°C to 70°C Input Current (Note 2) ..±10mA LT1994I .. –40°C to 85°C Input Current (VOCM, SHDN) ..±10mA LT1994H .. –40°C to 125°C VOCM, SHDN..±VS LT1994MP.. –55°C to 125°C Output Short-Circuit Duration (Note 3) .. Indefi nite Junction Temperature ... 150°C Operating Temperature Range (Note 4) Storage Temperature Range ... –65°C to 150°C LT1994C ... –40°C to 85°C LT1994I .. –40°C to 85°C LT1994H .. –40°C to 125°C LT1994MP.. –55°C to 125°C
PIN CONFIGURATION
TOP VIEW TOP VIEW IN– 1 8 IN+ V 2 7 IN– 1 8 IN+ OCM SHDN V 2 OCM 7 SHDN V+ 3 6 V– V+ 3 6 V– OUT+ 4 5 OUT– OUT+ 4 5 OUT– MS8 PACKAGE 8-LEAD PLASTIC MSOP DD PACKAGE 8-LEAD (3mm s 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 140°C/W TJMAX = 150°C, θJA = 43°C/W EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO V–
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1994CDD#PBF LT1994CDD#TRPBF LBQM 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LT1994IDD#PBF LT1994IDD#TRPBF LBQM 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LT1994HDD#PBF LT1994HDD#TRPBF LBQM 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT1994MPDD#PBF LT1994MPDD#TRPBF LDXQ 8-Lead (3mm × 3mm) Plastic DFN –55°C to 125°C LT1994CMS8#PBF LT1994CMS8#TRPBF LTBQN 8-Lead Plastic MSOP 0°C to 70°C LT1994IMS8#PBF LT1994IMS8#TRPBF LTBQN 8-Lead Plastic MSOP –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 1994fb 2
