Datasheet LTC6401-20 (Analog Devices) - 3
| Hersteller | Analog Devices |
| Beschreibung | 1.3GHz Low Noise, Low Distortion Differential ADC Driver for 140MHz IF |
| Seiten / Seite | 16 / 3 — DC ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which … |
| Dateiformat / Größe | PDF / 230 Kb |
| Dokumentensprache | Englisch |

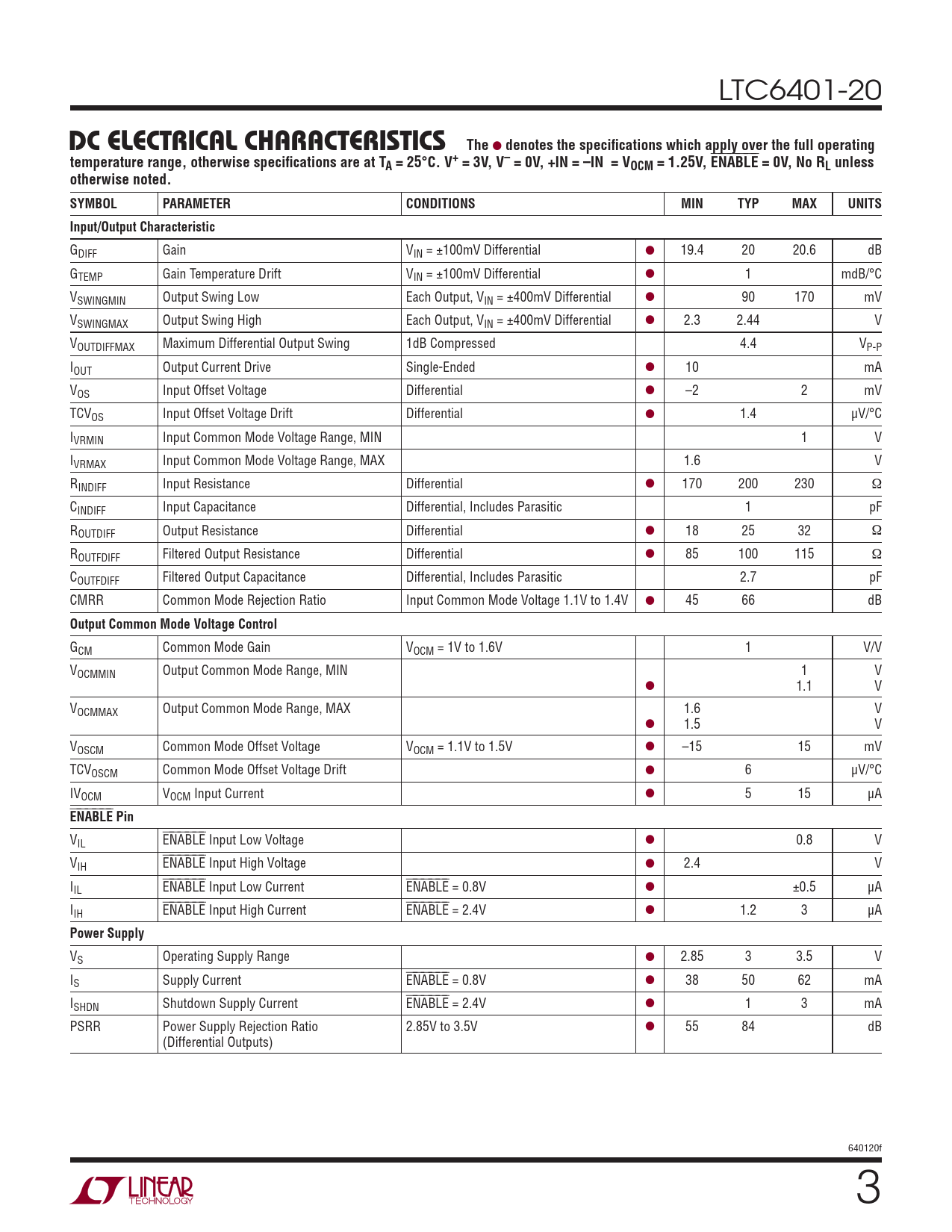

DC ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the full operating
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC6401-20
DC ELECTRICAL CHARACTERISTICS The
●
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. V+ = 3V, V– = 0V, +IN = –IN = VOCM = 1.25V,
⎯
E
⎯
N
⎯
A
⎯
B
⎯
L
⎯
E = 0V, No RL unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Input/Output Characteristic
GDIFF Gain VIN = ±100mV Differential ● 19.4 20 20.6 dB GTEMP Gain Temperature Drift VIN = ±100mV Differential ● 1 mdB/°C VSWINGMIN Output Swing Low Each Output, VIN = ±400mV Differential ● 90 170 mV VSWINGMAX Output Swing High Each Output, VIN = ±400mV Differential ● 2.3 2.44 V VOUTDIFFMAX Maximum Differential Output Swing 1dB Compressed 4.4 VP-P IOUT Output Current Drive Single-Ended ● 10 mA VOS Input Offset Voltage Differential ● –2 2 mV TCVOS Input Offset Voltage Drift Differential ● 1.4 μV/°C IVRMIN Input Common Mode Voltage Range, MIN 1 V IVRMAX Input Common Mode Voltage Range, MAX 1.6 V RINDIFF Input Resistance Differential ● 170 200 230 Ω CINDIFF Input Capacitance Differential, Includes Parasitic 1 pF ROUTDIFF Output Resistance Differential ● 18 25 32 Ω ROUTFDIFF Filtered Output Resistance Differential ● 85 100 115 Ω COUTFDIFF Filtered Output Capacitance Differential, Includes Parasitic 2.7 pF CMRR Common Mode Rejection Ratio Input Common Mode Voltage 1.1V to 1.4V ● 45 66 dB
Output Common Mode Voltage Control
GCM Common Mode Gain VOCM = 1V to 1.6V 1 V/V VOCMMIN Output Common Mode Range, MIN 1 V ● 1.1 V VOCMMAX Output Common Mode Range, MAX 1.6 V ● 1.5 V VOSCM Common Mode Offset Voltage VOCM = 1.1V to 1.5V ● –15 15 mV TCVOSCM Common Mode Offset Voltage Drift ● 6 μV/°C IVOCM VOCM Input Current ● 5 15 μA ⎯
E
⎯
N
⎯
A
⎯
B
⎯
L
⎯
E Pin
VIL ⎯E⎯N⎯A⎯B⎯L⎯E Input Low Voltage ● 0.8 V VIH ⎯E⎯N⎯A⎯B⎯L⎯E Input High Voltage ● 2.4 V IIL ⎯E⎯N⎯A⎯B⎯L⎯E Input Low Current ⎯E⎯N⎯A⎯B⎯L⎯E = 0.8V ● ±0.5 μA IIH ⎯E⎯N⎯A⎯B⎯L⎯E Input High Current ⎯E⎯N⎯A⎯B⎯L⎯E = 2.4V ● 1.2 3 μA
Power Supply
VS Operating Supply Range ● 2.85 3 3.5 V IS Supply Current ⎯E⎯N⎯A⎯B⎯L⎯E = 0.8V ● 38 50 62 mA ISHDN Shutdown Supply Current ⎯E⎯N⎯A⎯B⎯L⎯E = 2.4V ● 1 3 mA PSRR Power Supply Rejection Ratio 2.85V to 3.5V ● 55 84 dB (Differential Outputs) 640120f 3
