Datasheet AD8372 (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | 41 dB Range, 1 dB Step Size, Programmable Dual VGA |
| Seiten / Seite | 16 / 6 — AD8372. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. Rating. … |
| Revision | C |
| Dateiformat / Größe | PDF / 667 Kb |
| Dokumentensprache | Englisch |

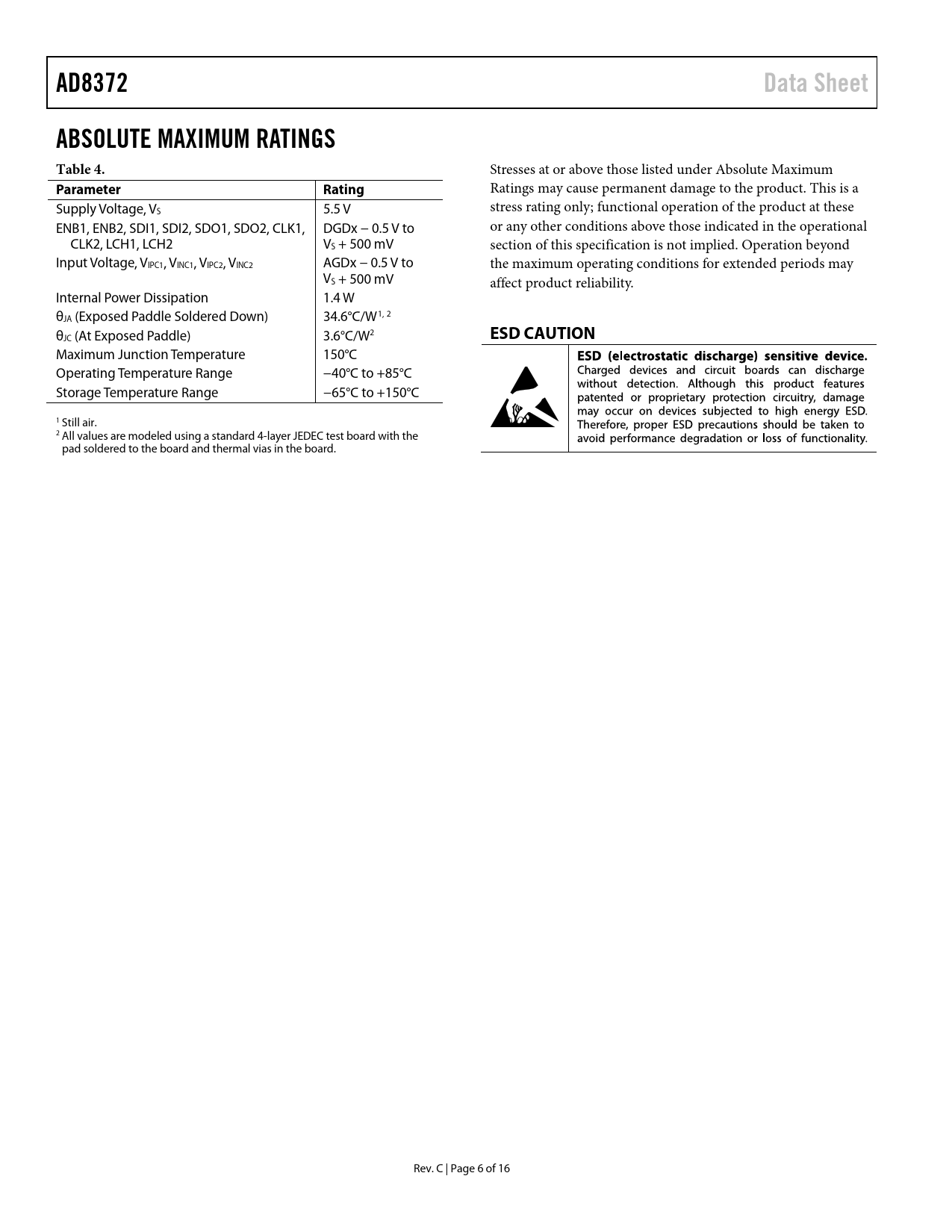

AD8372. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
AD8372 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 4.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage, VS 5.5 V stress rating only; functional operation of the product at these ENB1, ENB2, SDI1, SDI2, SDO1, SDO2, CLK1, DGDx − 0.5 V to or any other conditions above those indicated in the operational CLK2, LCH1, LCH2 VS + 500 mV section of this specification is not implied. Operation beyond Input Voltage, VIPC1, VINC1, VIPC2, VINC2 AGDx − 0.5 V to the maximum operating conditions for extended periods may VS + 500 mV affect product reliability. Internal Power Dissipation 1.4 W θJA (Exposed Paddle Soldered Down) 34.6°C/W1, 2 θJC (At Exposed Paddle) 3.6°C/W2
ESD CAUTION
Maximum Junction Temperature 150°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C 1 Still air. 2 All values are modeled using a standard 4-layer JEDEC test board with the pad soldered to the board and thermal vias in the board. Rev. C | Page 6 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS SERIAL CONTROL INTERFACE TIMING ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION SINGLE-ENDED AND DIFFERENTIAL SIGNALS PASSIVE FILTER TECHNIQUES DIGITAL GAIN CONTROL DRIVING ANALOG-TO-DIGITAL CONVERTERS EVALUATION BOARD SCHEMATIC OUTLINE DIMENSIONS ORDERING GUIDE
