PIN FUNCTIONS. –IN (Pin 1):. V– (Pin 6/Exposed Pad Pin 9):. OCM (Pin 2):. SHDN (Pin 7):. V+ (Pin 3):. +IN (Pin 8):. +OUT (Pin 4):
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC6362
PIN FUNCTIONS –IN (Pin 1):
Inverting Input of Amplifier. Valid input range
V– (Pin 6/Exposed Pad Pin 9):
Negative Power Supply, is from V– to V+. Typically 0V. Negative supply can be negative as long as
V
2.8V ≤ (V+ – V–) ≤ 5.25V still holds.
OCM (Pin 2):
Output Common Mode Reference Voltage. The voltage on this pin sets the output common mode
SHDN (Pin 7):
When SHDN is floating or directly tied to voltage level. If left floating, an internal resistor divider V+ the LTC6362 is in the normal (active) operating mode. develops a default voltage of 2.5V with a 5V supply. When the SHDN pin is connected to V–, the part is disabled
V+ (Pin 3):
Positive Power Supply. Operational supply and draws approximately 70µA of supply current. range is 2.8V to 5.25V when V– = 0V.
+IN (Pin 8):
Noninverting Input of Amplifier. Valid input
+OUT (Pin 4):
Positive Output Pin. Output capable of range is from V– to V+. swinging rail-to-rail.
–OUT (Pin 5):
Negative Output Pin. Output capable of swinging rail-to-rail.

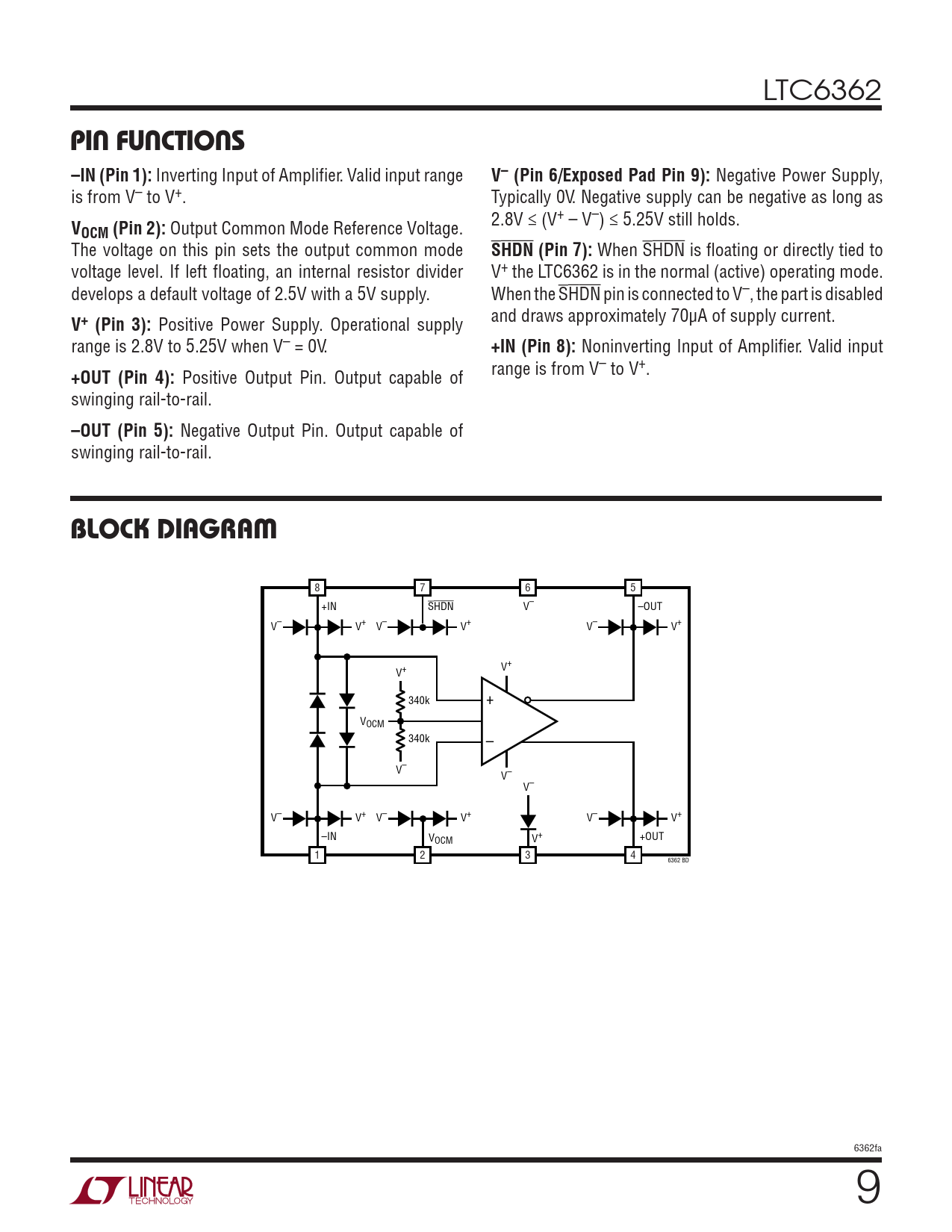

BLOCK DIAGRAM
8 7 6 5 +IN V– SHDN –OUT V– V+ V– V+ V– V+ V+ V+ 340k + VOCM 340k – V– V– V– V– V+ V– V+ V– V+ –IN VOCM V+ +OUT 1 2 3 4 6362 BD 6362fa 9 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
