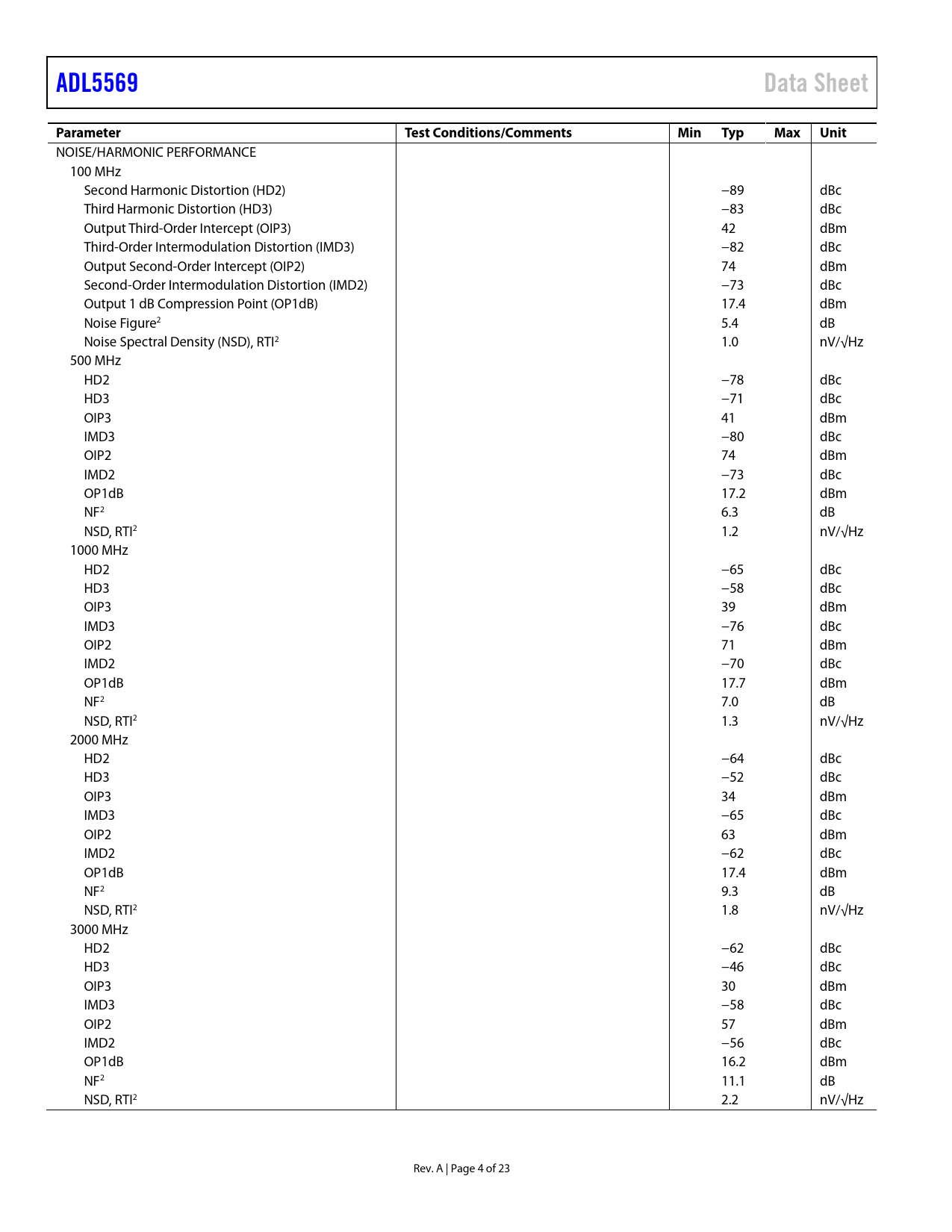

ADL5569 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit
NOISE/HARMONIC PERFORMANCE 100 MHz Second Harmonic Distortion (HD2) −89 dBc Third Harmonic Distortion (HD3) −83 dBc Output Third-Order Intercept (OIP3) 42 dBm Third-Order Intermodulation Distortion (IMD3) −82 dBc Output Second-Order Intercept (OIP2) 74 dBm Second-Order Intermodulation Distortion (IMD2) −73 dBc Output 1 dB Compression Point (OP1dB) 17.4 dBm Noise Figure2 5.4 dB Noise Spectral Density (NSD), RTI2 1.0 nV/√Hz 500 MHz HD2 −78 dBc HD3 −71 dBc OIP3 41 dBm IMD3 −80 dBc OIP2 74 dBm IMD2 −73 dBc OP1dB 17.2 dBm NF2 6.3 dB NSD, RTI2 1.2 nV/√Hz 1000 MHz HD2 −65 dBc HD3 −58 dBc OIP3 39 dBm IMD3 −76 dBc OIP2 71 dBm IMD2 −70 dBc OP1dB 17.7 dBm NF2 7.0 dB NSD, RTI2 1.3 nV/√Hz 2000 MHz HD2 −64 dBc HD3 −52 dBc OIP3 34 dBm IMD3 −65 dBc OIP2 63 dBm IMD2 −62 dBc OP1dB 17.4 dBm NF2 9.3 dB NSD, RTI2 1.8 nV/√Hz 3000 MHz HD2 −62 dBc HD3 −46 dBc OIP3 30 dBm IMD3 −58 dBc OIP2 57 dBm IMD2 −56 dBc OP1dB 16.2 dBm NF2 11.1 dB NSD, RTI2 2.2 nV/√Hz Rev. A | Page 4 of 23 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Applications Information Basic Connections Input and Output Interfacing Single-Ended Input to Differential Output Gain Adjustment and Interfacing Effect of Load Capacitance GSPS ADC Interfacing Soldering Information and Recommended Land Pattern Evaluation Board Outline Dimensions Ordering Guide
