FEATURES. DESCRIPTION. Wide Input Range: 5V to 42V. Low Dropout Under All Conditions: 450mV at 2.1A
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LT8697 USB 5V 2.5A Output, 42V Input Synchronous Buck with Cable Drop Compensation
FEATURES DESCRIPTION
n
Wide Input Range: 5V to 42V
The LT®8697 is a compact, high efficiency, high speed n
Low Dropout Under All Conditions: 450mV at 2.1A
synchronous monolithic step-down switching regulator n
Accurate 5V Output: ±1.3% Over Full Temperature
designed to power 5V USB applications. A precise output
Range
voltage and programmable cable drop compensation main- n
Programmable Cable Drop Compensation
tain accurate 5V regulation at the USB socket connected n
Programmable Output Current Limit
to the end of a long cable. Forced continuous operation n
Output Current Monitor
allows the LT8697 to sink current, further enhancing ac- n
Dual Input Feedback Permits Regulation on Output
curate 5V regulation during load transients.
of USB Switch
Accurate and programmable output current limit, a power n
Forced Continuous Mode for Fast Load Step
good indicator pin and an output current monitor pin
Response
improve system reliability and safety, allow the user to n High Efficiency Synchronous Operation at 2MHz: implement latch-off or auto-retry functionality and can 93% Efficiency at 2.1A, 5VOUT from 12VIN eliminate the need for a USB switch IC. Dual feedback al- 95% Efficiency at 0.9A, 5VOUT from 12VIN lows regulation on the output of a USB switch and limits n Fast Minimum Switch-On Time: 45ns cable drop compensation to a maximum of 5.8V output, n Adjustable Output from 5.0V to 5.25V protecting USB devices during fault conditions. Thermal n Adjustable and Synchronizable: 300kHz to 2.2MHz shutdown provides additional protection by limiting power n Small Thermally Enhanced 3mm × 5mm 24-Lead dissipation in the IC during an overtemperature fault. QFN Package The LT8697 is available in a small 24-lead 3mm × 5mm
APPLICATIONS
package with an exposed pad for low thermal resistance. L n , LT, LTC, LTM, Linear Technology, the Linear logo and Burst Mode are registered trademarks Automotive and Industrial USB of Linear Technology Corporation. All other trademarks are the property of their respective owners. n Precision 5V Supply

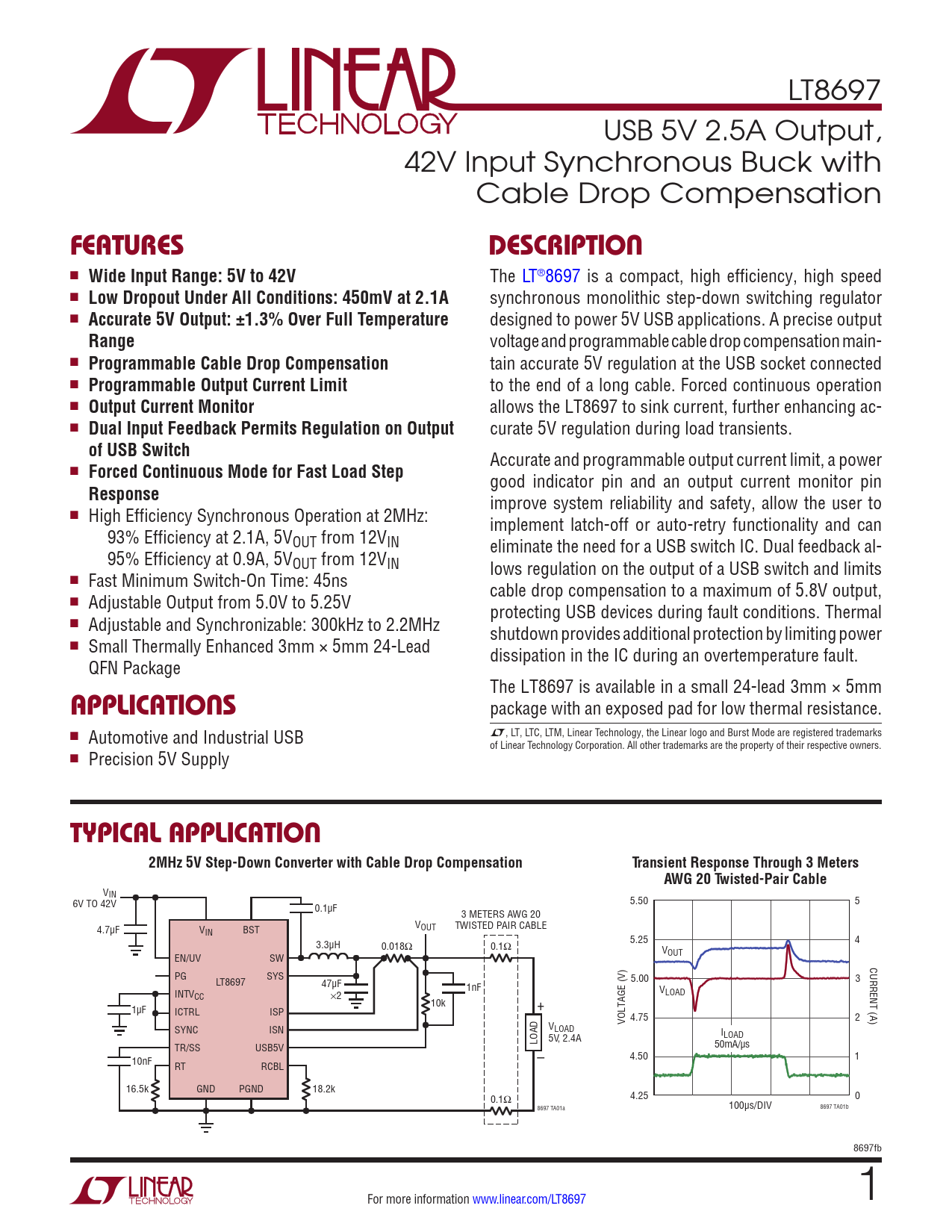

TYPICAL APPLICATION 2MHz 5V Step-Down Converter with Cable Drop Compensation Transient Response Through 3 Meters AWG 20 Twisted-Pair Cable
VIN 6V TO 42V 5.50 5 0.1µF 3 METERS AWG 20 4.7µF V VOUT TWISTED PAIR CABLE IN BST 3.3µH 5.25 4 0.018Ω 0.1Ω V EN/UV SW OUT CURRENT (A) PG SYS LT8697 47µF 5.00 3 1nF INTV V CC ×2 LOAD 10k 1µF + ICTRL ISP VOLTAGE (V) 4.75 2 SYNC ISN VLOAD I LOAD 5V, 2.4A LOAD TR/SS USB5V 50mA/µs 10nF – 4.50 1 RT RCBL 16.5k GND PGND 18.2k 0.1Ω 4.25 0 8697 TA01a 100µs/DIV 8697 TA01b 8697fb For more information www.linear.com/LT8697 1 Document Outline Features Applications Typical Application Absolute Maximum Ratings Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
