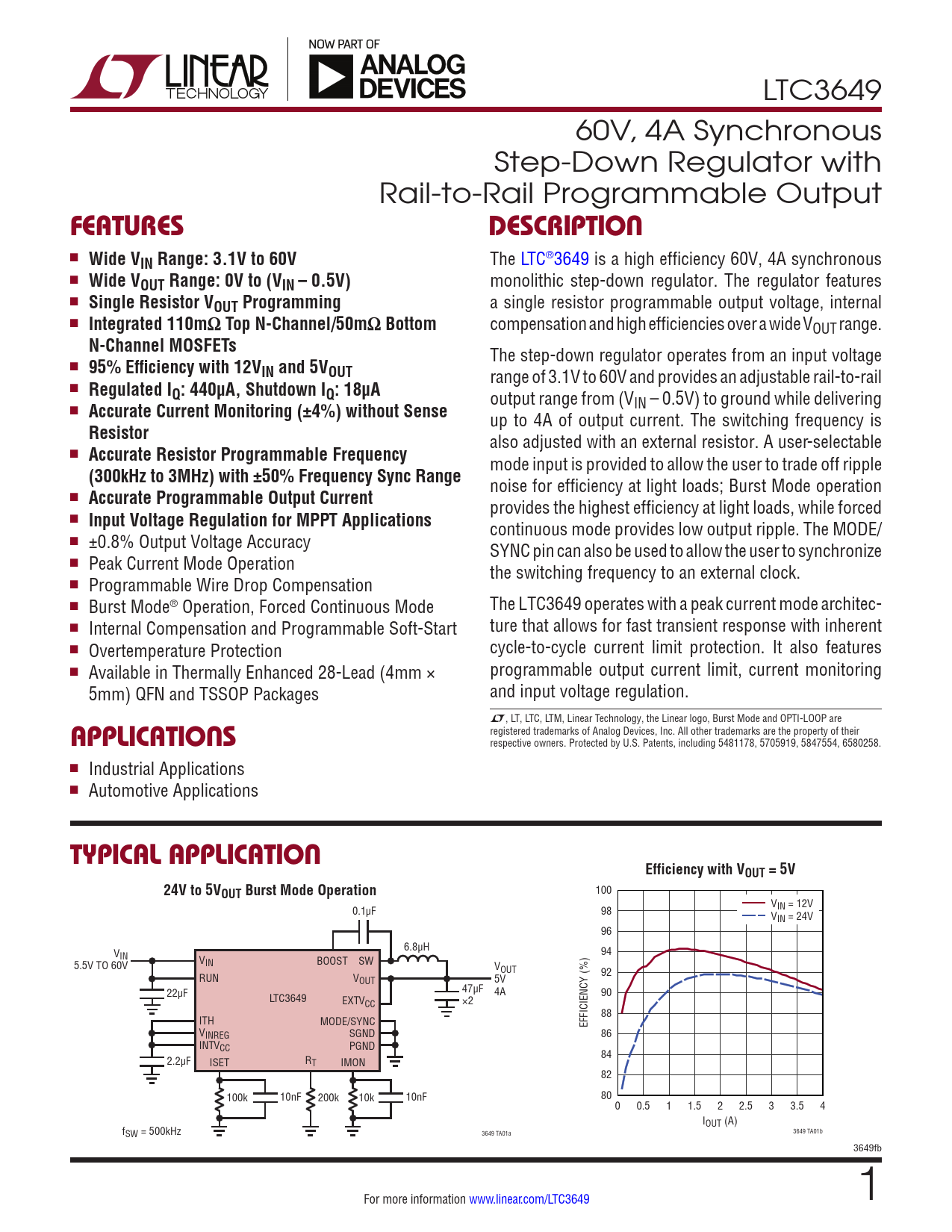

LTC3649 60V, 4A Synchronous Step-Down Regulator with Rail-to-Rail Programmable Output
FEATURES DESCRIPTION
n
Wide VIN Range: 3.1V to 60V
The LTC®3649 is a high efficiency 60V, 4A synchronous n
Wide VOUT Range: 0V to (VIN – 0.5V)
monolithic step-down regulator. The regulator features n
Single Resistor VOUT Programming
a single resistor programmable output voltage, internal n
Integrated 110mΩ Top N-Channel/50mΩ Bottom
compensation and high efficiencies over a wide VOUT range.
N-Channel MOSFETs
The step-down regulator operates from an input voltage n
95% Efficiency with 12VIN and 5VOUT
range of 3.1V to 60V and provides an adjustable rail-to-rail n
Regulated IQ: 440µA, Shutdown IQ: 18µA
output range from (VIN – 0.5V) to ground while delivering n
Accurate Current Monitoring (±4%) without Sense
up to 4A of output current. The switching frequency is
Resistor
also adjusted with an external resistor. A user-selectable n
Accurate Resistor Programmable Frequency
mode input is provided to allow the user to trade off ripple
(300kHz to 3MHz) with ±50% Frequency Sync Range
noise for efficiency at light loads; Burst Mode operation n
Accurate Programmable Output Current
provides the highest efficiency at light loads, while forced n
Input Voltage Regulation for MPPT Applications
continuous mode provides low output ripple. The MODE/ n ±0.8% Output Voltage Accuracy SYNC pin can also be used to allow the user to synchronize n Peak Current Mode Operation the switching frequency to an external clock. n Programmable Wire Drop Compensation n Burst Mode® Operation, Forced Continuous Mode The LTC3649 operates with a peak current mode architec- n Internal Compensation and Programmable Soft-Start ture that allows for fast transient response with inherent n Overtemperature Protection cycle-to-cycle current limit protection. It also features n Available in Thermally Enhanced 28-Lead (4mm × programmable output current limit, current monitoring 5mm) QFN and TSSOP Packages and input voltage regulation. L, LT, LTC, LTM, Linear Technology, the Linear logo, Burst Mode and OPTI-LOOP are
APPLICATIONS
registered trademarks of Analog Devices, Inc. All other trademarks are the property of their respective owners. Protected by U.S. Patents, including 5481178, 5705919, 5847554, 6580258. n Industrial Applications n Automotive Applications
TYPICAL APPLICATION Efficiency with VOUT = 5V 24V to 5VOUT Burst Mode Operation
