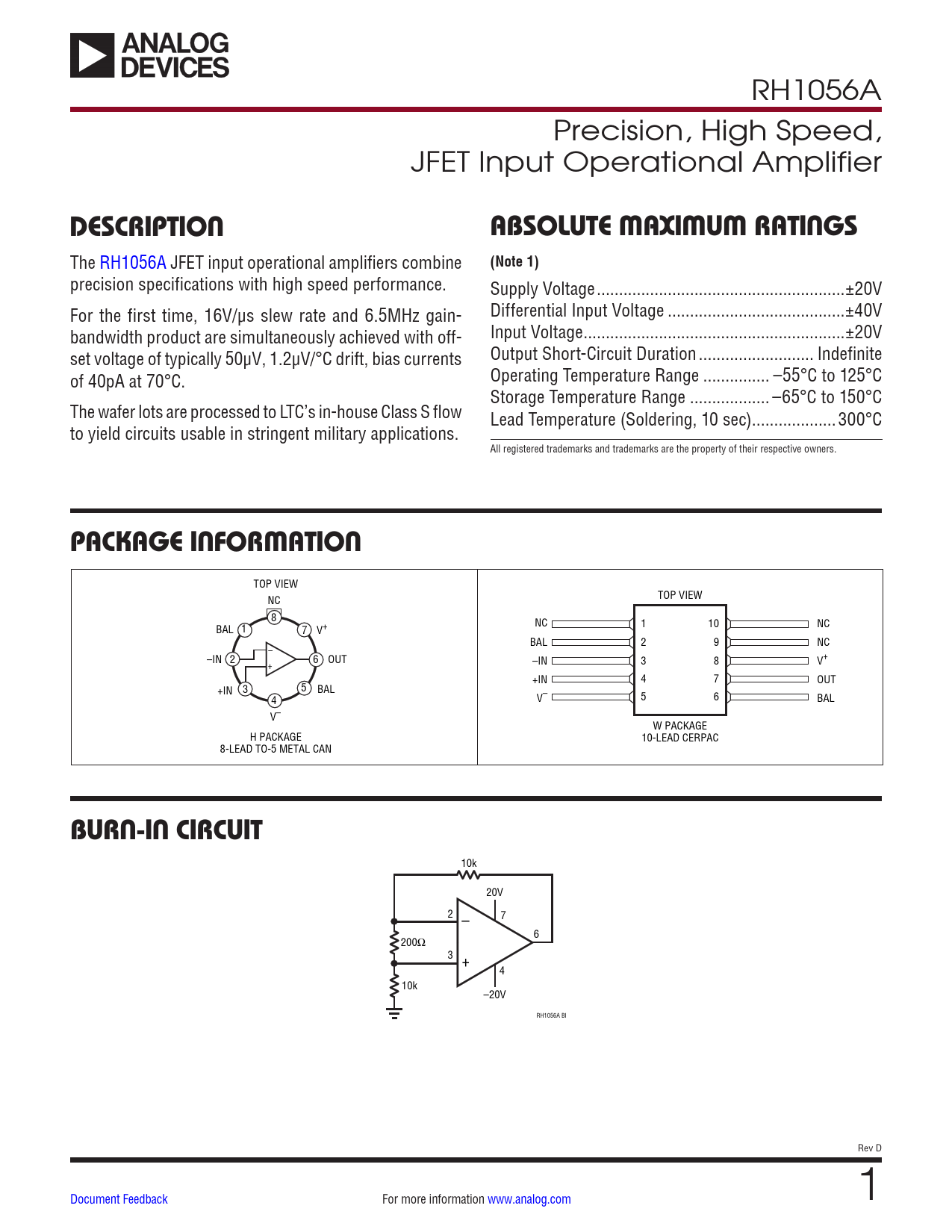

Datasheet RH1056A (Analog Devices)

RH1056A Precision, High Speed, JFET Input Operational Amplifier
DESCRIPTION ABSOLUTE MAXIMUM RATINGS
The RH1056A JFET input operational amplifiers combine
(Note 1)
precision specifications with high speed performance. Supply Voltage ..±20V For the first time, 16V/µs slew rate and 6.5MHz gain- Differential Input Voltage ..±40V bandwidth product are simultaneously achieved with off- Input Voltage ...±20V set voltage of typically 50µV, 1.2µV/°C drift, bias currents Output Short-Circuit Duration .. Indefinite of 40pA at 70°C. Operating Temperature Range ... –55°C to 125°C Storage Temperature Range .. –65°C to 150°C The wafer lots are processed to LTC’s in-house Class S flow Lead Temperature (Soldering, 10 sec) ...300°C to yield circuits usable in stringent military applications. All registered trademarks and trademarks are the property of their respective owners.
PACKAGE INFORMATION
TOP VIEW NC TOP VIEW 8 BAL 1 7 NC 1 10 NC V+ BAL 2 9 NC – –IN 2 6 OUT –IN 3 8 V+ + +IN 4 7 OUT +IN 3 5 BAL 4 V– 5 6 BAL V– W PACKAGE H PACKAGE 10-LEAD CERPAC 8-LEAD TO-5 METAL CAN
BURN-IN CIRCUIT
10k 20V 2 – 7 6 200Ω 3 + 4 10k –20V RH1056A BI Rev D Document Feedback For more information www.analog.com 1 Document Outline Package Information Burn-In Circuit Table 2: Electrical Test Requirements Total Dose Bias Circuit Revision History
