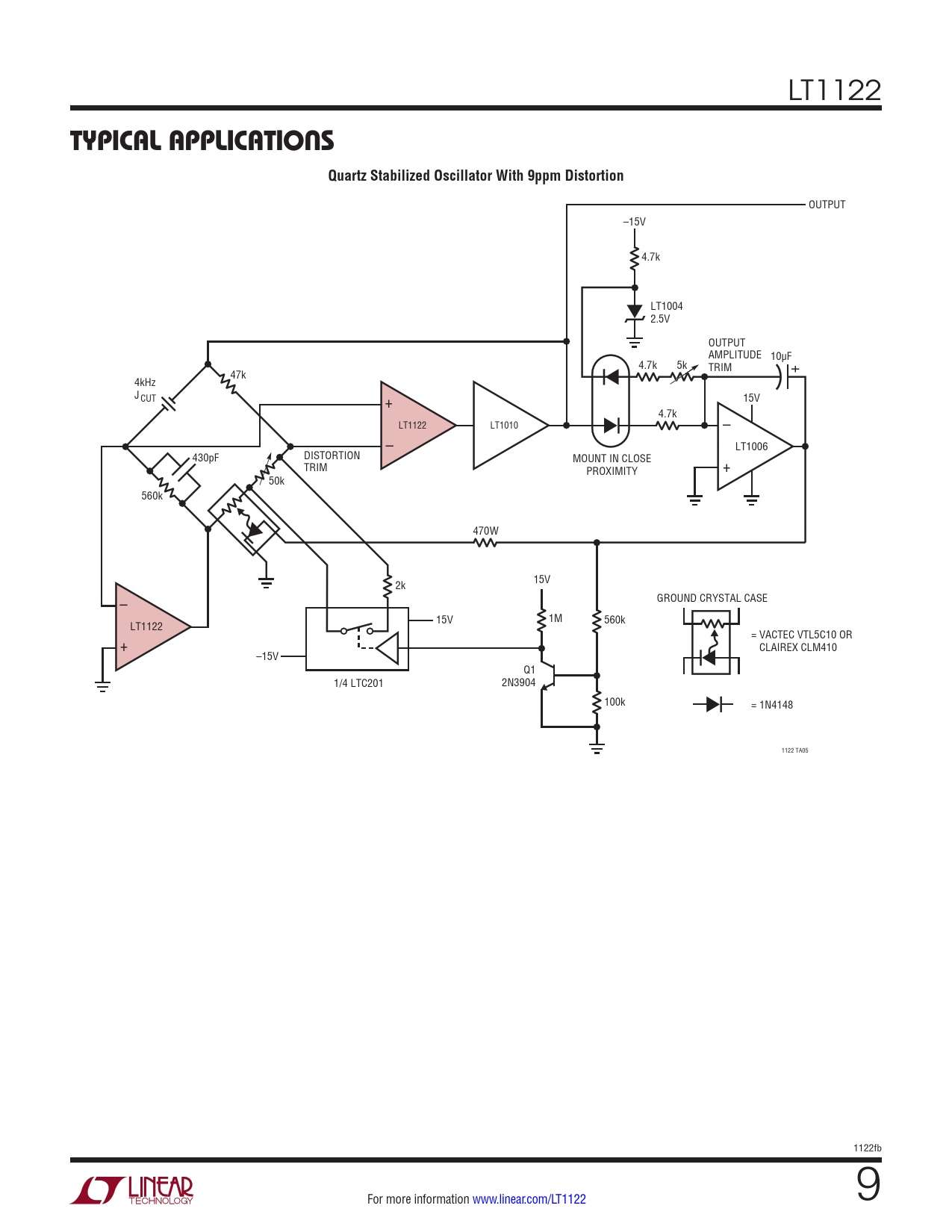

TYPICAL APPLICATIONS. Quartz Stabilized Oscillator With 9ppm Distortion
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LT1122
TYPICAL APPLICATIONS Quartz Stabilized Oscillator With 9ppm Distortion
OUTPUT –15V 4.7k LT1004 2.5V OUTPUT AMPLITUDE 10µF 4.7k 5k + TRIM 47k 4kHz J CUT + 15V 4.7k LT1122 LT1010 – – LT1006 430pF DISTORTION MOUNT IN CLOSE TRIM PROXIMITY + 50k 560k 470W 2k 15V GROUND CRYSTAL CASE – 15V 1M LT1122 560k = VACTEC VTL5C10 OR + CLAIREX CLM410 –15V Q1 1/4 LTC201 2N3904 100k = 1N4148 1122 TA05 1122fb For more information www.linear.com/LT1122 9
