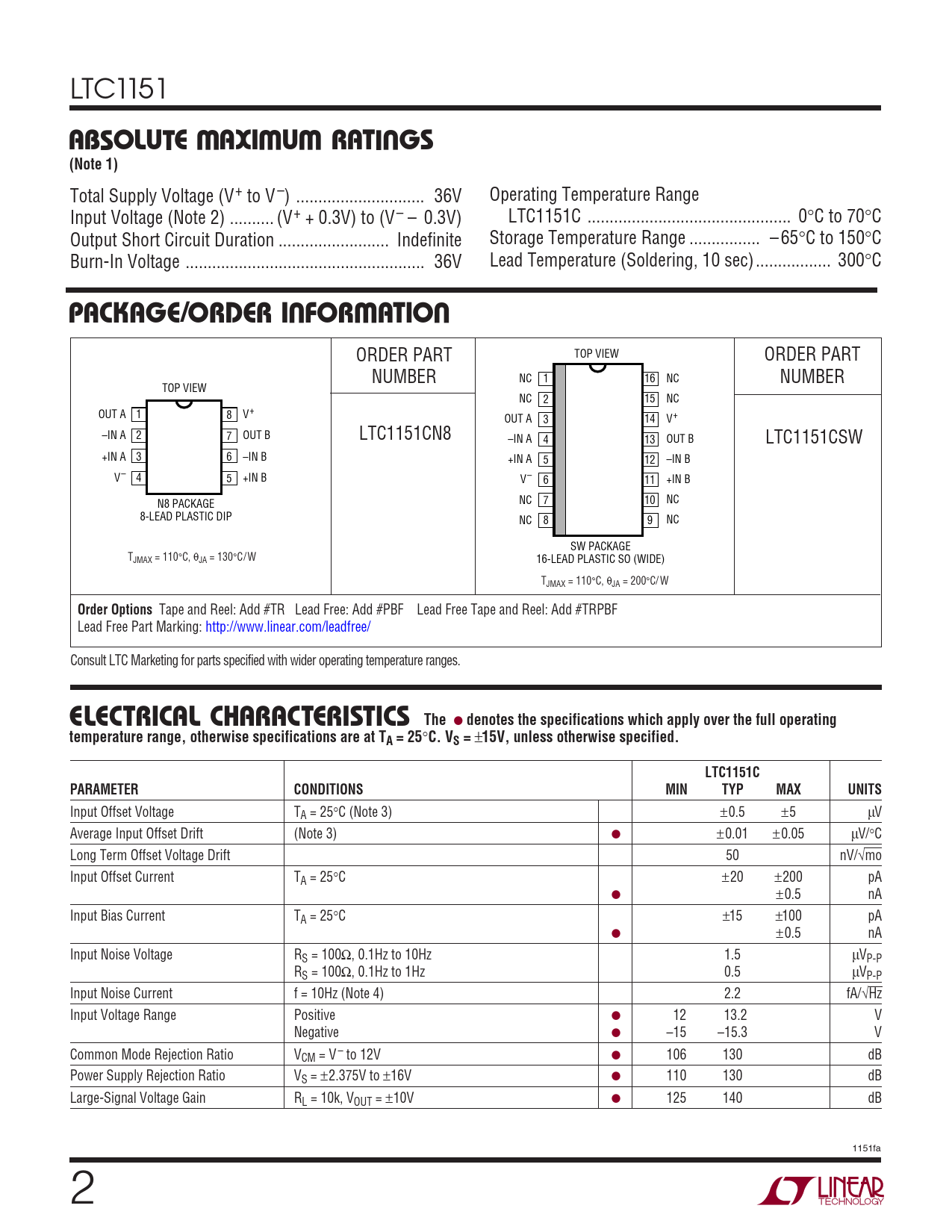

LTC1151
W W W U ABSOLUTE AXI U A R TI GS (Note 1)
Total Supply Voltage (V+ to V –) ... 36V Operating Temperature Range Input Voltage (Note 2) .. (V+ + 0.3V) to (V– – 0.3V) LTC1151C .. 0°C to 70°C Output Short Circuit Duration ... Indefinite Storage Temperature Range .. – 65°C to 150°C Burn-In Voltage .. 36V Lead Temperature (Soldering, 10 sec)... 300°C
U W U PACKAGE/ORDER I FOR ATIO
ORDER PART TOP VIEW ORDER PART NUMBER NC 1 16 NC NUMBER TOP VIEW NC 2 15 NC OUT A 1 8 V+ OUT A 3 14 V+ –IN A 2 7 OUT B LTC1151CN8 –IN A 4 13 OUT B LTC1151CSW +IN A 3 6 –IN B +IN A 5 12 –IN B V– 4 5 +IN B V– 6 11 +IN B N8 PACKAGE NC 7 10 NC 8-LEAD PLASTIC DIP NC 8 9 NC SW PACKAGE TJMAX = 110°C, θJA = 130°C/ W 16-LEAD PLASTIC SO (WIDE) TJMAX = 110°C, θJA = 200°C/ W
Order Options
Tape and Reel: Add #TR Lead Free: Add #PBF Lead Free Tape and Reel: Add #TRPBF Lead Free Part Marking: http://www.linear.com/leadfree/ Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CH C ARA TERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS =
±
15V, unless otherwise specified. LTC1151C PARAMETER CONDITIONS MIN TYP MAX UNITS
Input Offset Voltage TA = 25°C (Note 3) ±0.5 ±5 µV Average Input Offset Drift (Note 3) ● ±0.01 ±0.05 µV/°C Long Term Offset Voltage Drift 50 nV/√mo Input Offset Current TA = 25°C ±20 ±200 pA ● ±0.5 nA Input Bias Current TA = 25°C ±15 ±100 pA ● ±0.5 nA Input Noise Voltage RS = 100Ω, 0.1Hz to 10Hz 1.5 µVP-P RS = 100Ω, 0.1Hz to 1Hz 0.5 µVP-P Input Noise Current f = 10Hz (Note 4) 2.2 fA/√Hz Input Voltage Range Positive ● 12 13.2 V Negative ● –15 –15.3 V Common Mode Rejection Ratio VCM = V – to 12V ● 106 130 dB Power Supply Rejection Ratio VS = ±2.375V to ±16V ● 110 130 dB Large-Signal Voltage Gain RL = 10k, VOUT = ±10V ● 125 140 dB 1151fa 2
