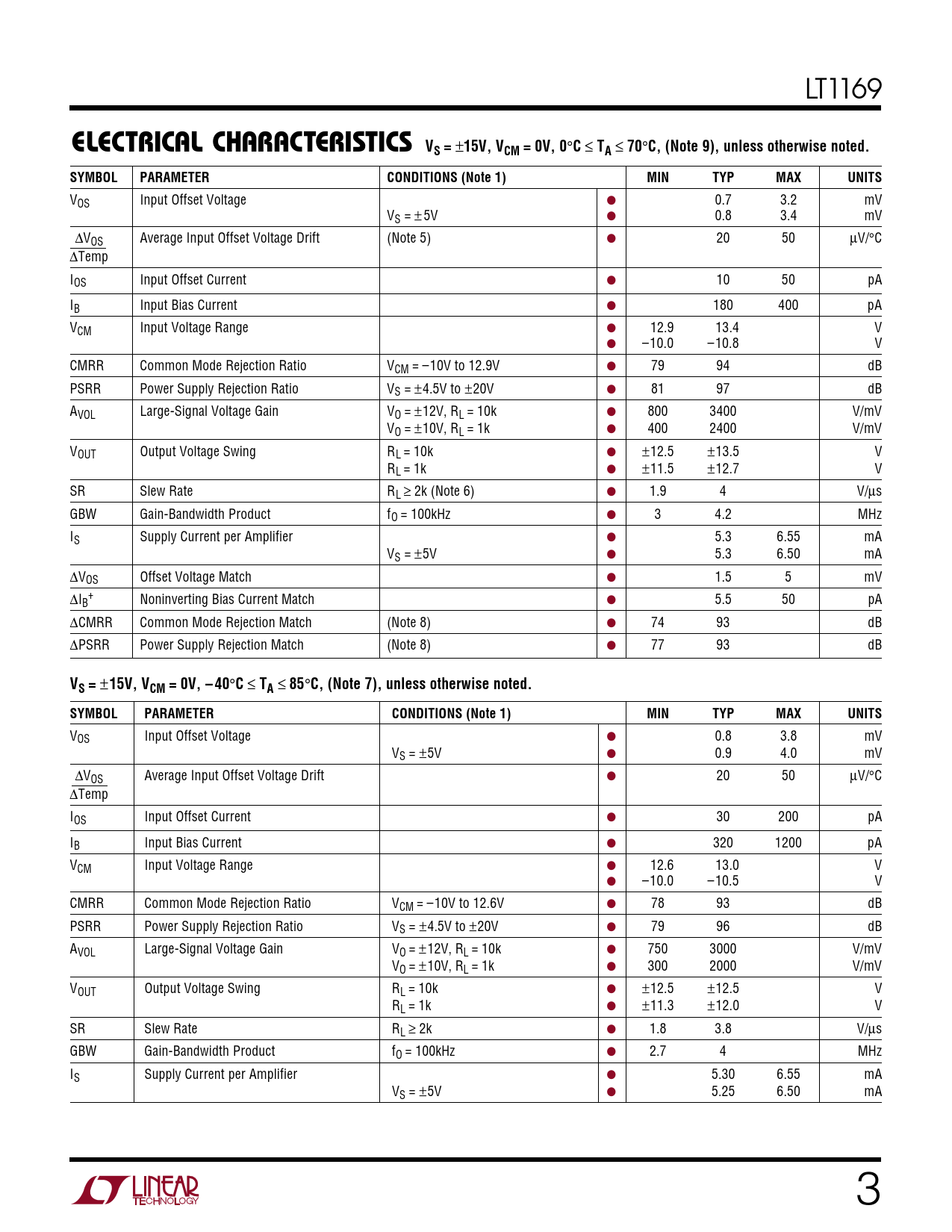

LT1169
ELECTRICAL CHAR C A TERISTICS VS =
±
15V, VCM = 0V, 0
°
C
≤
TA
≤
70
°
C, (Note 9), unless otherwise noted. SYMBOL PARAMETER CONDITIONS (Note 1) MIN TYP MAX UNITS
VOS Input Offset Voltage ● 0.7 3.2 mV VS = ± 5V ● 0.8 3.4 mV ∆VOS Average Input Offset Voltage Drift (Note 5) ● 20 50 µV/°C ∆Temp IOS Input Offset Current ● 10 50 pA IB Input Bias Current ● 180 400 pA VCM Input Voltage Range ● 12.9 13.4 V ● –10.0 –10.8 V CMRR Common Mode Rejection Ratio VCM = –10V to 12.9V ● 79 94 dB PSRR Power Supply Rejection Ratio VS = ±4.5V to ±20V ● 81 97 dB AVOL Large-Signal Voltage Gain VO = ±12V, RL = 10k ● 800 3400 V/mV VO = ±10V, RL = 1k ● 400 2400 V/mV VOUT Output Voltage Swing RL = 10k ● ±12.5 ±13.5 V RL = 1k ● ±11.5 ±12.7 V SR Slew Rate RL ≥ 2k (Note 6) ● 1.9 4 V/µs GBW Gain-Bandwidth Product fO = 100kHz ● 3 4.2 MHz IS Supply Current per Amplifier ● 5.3 6.55 mA VS = ±5V ● 5.3 6.50 mA ∆VOS Offset Voltage Match ● 1.5 5 mV ∆I + B Noninverting Bias Current Match ● 5.5 50 pA ∆CMRR Common Mode Rejection Match (Note 8) ● 74 93 dB ∆PSRR Power Supply Rejection Match (Note 8) ● 77 93 dB
VS =
±
15V, VCM = 0V, – 40
°
C
≤
TA
≤
85
°
C, (Note 7), unless otherwise noted. SYMBOL PARAMETER CONDITIONS (Note 1) MIN TYP MAX UNITS
VOS Input Offset Voltage ● 0.8 3.8 mV VS = ±5V ● 0.9 4.0 mV ∆VOS Average Input Offset Voltage Drift ● 20 50 µV/°C ∆Temp IOS Input Offset Current ● 30 200 pA IB Input Bias Current ● 320 1200 pA VCM Input Voltage Range ● 12.6 13.0 V ● –10.0 –10.5 V CMRR Common Mode Rejection Ratio VCM = –10V to 12.6V ● 78 93 dB PSRR Power Supply Rejection Ratio VS = ±4.5V to ±20V ● 79 96 dB AVOL Large-Signal Voltage Gain VO = ±12V, RL = 10k ● 750 3000 V/mV VO = ±10V, RL = 1k ● 300 2000 V/mV VOUT Output Voltage Swing RL = 10k ● ±12.5 ±12.5 V RL = 1k ● ±11.3 ±12.0 V SR Slew Rate RL ≥ 2k ● 1.8 3.8 V/µs GBW Gain-Bandwidth Product fO = 100kHz ● 2.7 4 MHz IS Supply Current per Amplifier ● 5.30 6.55 mA VS = ±5V ● 5.25 6.50 mA 3
