Datasheet LT6011, LT6012 (Analog Devices) - 7
| Hersteller | Analog Devices |
| Beschreibung | Dual/Quad 135µA, 14nV/√Hz, Rail-to-Rail Output Precision Op Amp |
| Seiten / Seite | 20 / 7 — elecTrical characTerisTics. The. denotes the specifications which apply … |
| Dateiformat / Größe | PDF / 384 Kb |
| Dokumentensprache | Englisch |
elecTrical characTerisTics. The. denotes the specifications which apply over the full operating
Modelllinie für dieses Datenblatt
- LT6011ACDD#PBF LT6011ACDD#TRPBF LT6011ACS8#PBF LT6011ACS8#TRPBF LT6011AIDD#PBF LT6011AIDD#TRPBF LT6011AIS8#PBF LT6011AIS8#TRPBF LT6011CDD#PBF LT6011CDD#TRPBF LT6011CMS8#PBF LT6011CMS8#TRPBF LT6011CS8#PBF LT6011CS8#TRPBF LT6011IDD#PBF LT6011IDD#TRPBF LT6011IMS8#PBF LT6011IMS8#TRPBF LT6011IS8#PBF LT6011IS8#TRPBF
Textversion des Dokuments
LT6011/LT6012
elecTrical characTerisTics The
l

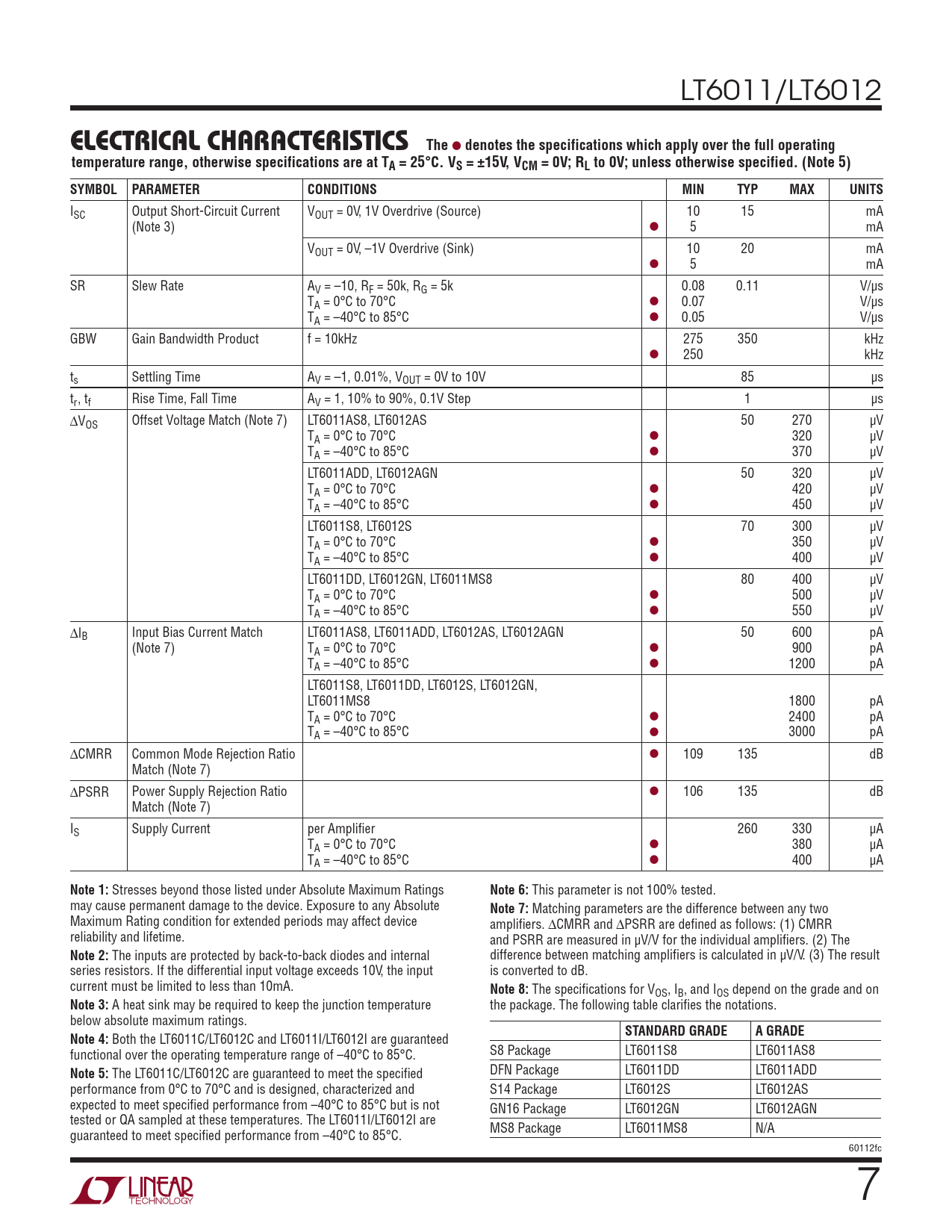

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VS = ±15V, VCM = 0V; RL to 0V; unless otherwise specified. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
ISC Output Short-Circuit Current VOUT = 0V, 1V Overdrive (Source) 10 15 mA (Note 3) l 5 mA VOUT = 0V, –1V Overdrive (Sink) 10 20 mA l 5 mA SR Slew Rate AV = –10, RF = 50k, RG = 5k 0.08 0.11 V/µs TA = 0°C to 70°C l 0.07 V/µs TA = –40°C to 85°C l 0.05 V/µs GBW Gain Bandwidth Product f = 10kHz 275 350 kHz l 250 kHz ts Settling Time AV = –1, 0.01%, VOUT = 0V to 10V 85 µs tr , tf Rise Time, Fall Time AV = 1, 10% to 90%, 0.1V Step 1 µs ∆VOS Offset Voltage Match (Note 7) LT6011AS8, LT6012AS 50 270 µV TA = 0°C to 70°C l 320 µV TA = –40°C to 85°C l 370 µV LT6011ADD, LT6012AGN 50 320 µV TA = 0°C to 70°C l 420 µV TA = –40°C to 85°C l 450 µV LT6011S8, LT6012S 70 300 µV TA = 0°C to 70°C l 350 µV TA = –40°C to 85°C l 400 µV LT6011DD, LT6012GN, LT6011MS8 80 400 µV TA = 0°C to 70°C l 500 µV TA = –40°C to 85°C l 550 µV ∆IB Input Bias Current Match LT6011AS8, LT6011ADD, LT6012AS, LT6012AGN 50 600 pA (Note 7) TA = 0°C to 70°C l 900 pA TA = –40°C to 85°C l 1200 pA LT6011S8, LT6011DD, LT6012S, LT6012GN, LT6011MS8 1800 pA TA = 0°C to 70°C l 2400 pA TA = –40°C to 85°C l 3000 pA ∆CMRR Common Mode Rejection Ratio l 109 135 dB Match (Note 7) ∆PSRR Power Supply Rejection Ratio l 106 135 dB Match (Note 7) IS Supply Current per Amplifier 260 330 µA TA = 0°C to 70°C l 380 µA TA = –40°C to 85°C l 400 µA
