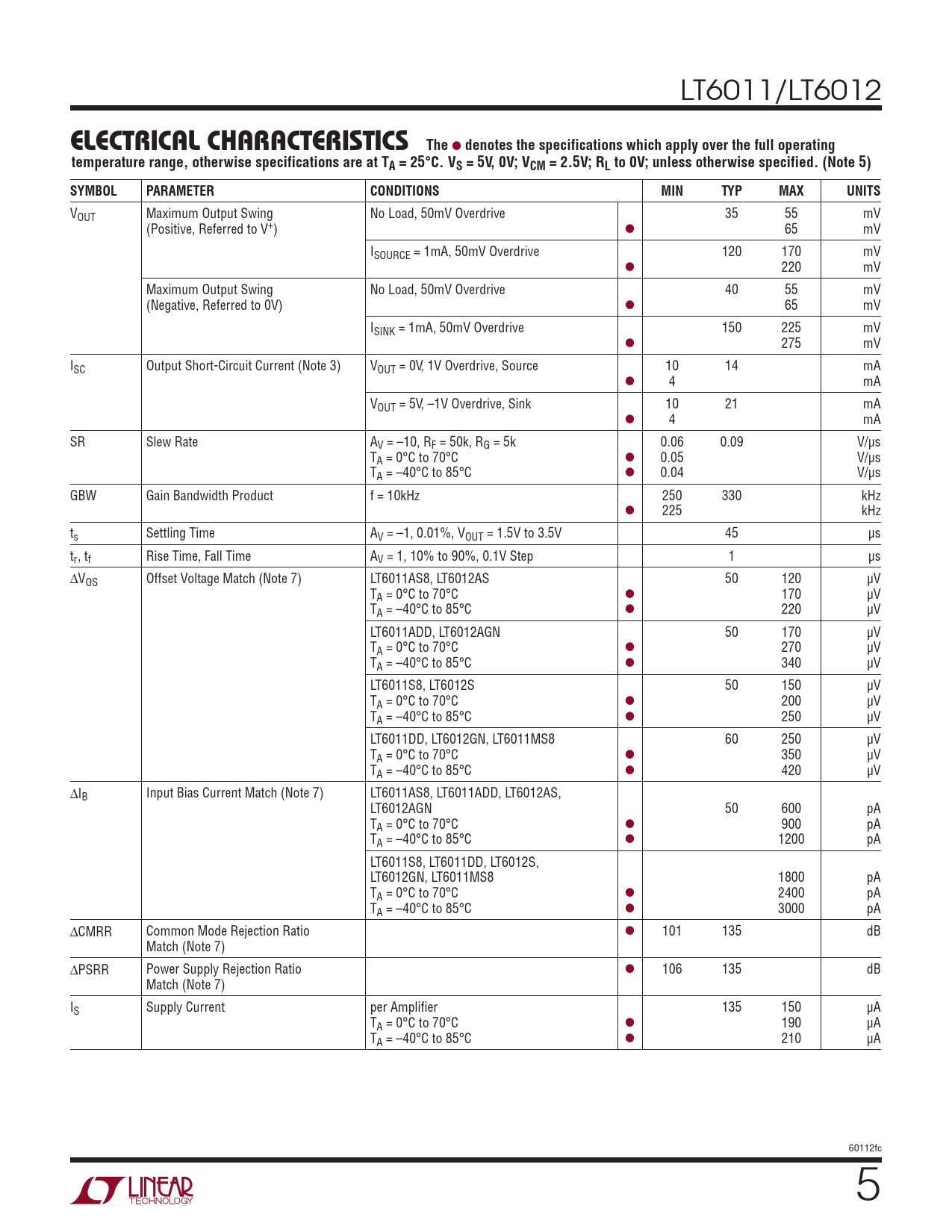

LT6011/LT6012
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VS = 5V, 0V; VCM = 2.5V; RL to 0V; unless otherwise specified. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOUT Maximum Output Swing No Load, 50mV Overdrive 35 55 mV (Positive, Referred to V+) l 65 mV ISOURCE = 1mA, 50mV Overdrive 120 170 mV l 220 mV Maximum Output Swing No Load, 50mV Overdrive 40 55 mV (Negative, Referred to 0V) l 65 mV ISINK = 1mA, 50mV Overdrive 150 225 mV l 275 mV ISC Output Short-Circuit Current (Note 3) VOUT = 0V, 1V Overdrive, Source 10 14 mA l 4 mA VOUT = 5V, –1V Overdrive, Sink 10 21 mA l 4 mA SR Slew Rate AV = –10, RF = 50k, RG = 5k 0.06 0.09 V/µs TA = 0°C to 70°C l 0.05 V/µs TA = –40°C to 85°C l 0.04 V/µs GBW Gain Bandwidth Product f = 10kHz 250 330 kHz l 225 kHz ts Settling Time AV = –1, 0.01%, VOUT = 1.5V to 3.5V 45 µs tr , tf Rise Time, Fall Time AV = 1, 10% to 90%, 0.1V Step 1 µs ∆VOS Offset Voltage Match (Note 7) LT6011AS8, LT6012AS 50 120 µV TA = 0°C to 70°C l 170 µV TA = –40°C to 85°C l 220 µV LT6011ADD, LT6012AGN 50 170 µV TA = 0°C to 70°C l 270 µV TA = –40°C to 85°C l 340 µV LT6011S8, LT6012S 50 150 µV TA = 0°C to 70°C l 200 µV TA = –40°C to 85°C l 250 µV LT6011DD, LT6012GN, LT6011MS8 60 250 µV TA = 0°C to 70°C l 350 µV TA = –40°C to 85°C l 420 µV ∆IB Input Bias Current Match (Note 7) LT6011AS8, LT6011ADD, LT6012AS, LT6012AGN 50 600 pA TA = 0°C to 70°C l 900 pA TA = –40°C to 85°C l 1200 pA LT6011S8, LT6011DD, LT6012S, LT6012GN, LT6011MS8 1800 pA TA = 0°C to 70°C l 2400 pA TA = –40°C to 85°C l 3000 pA ∆CMRR Common Mode Rejection Ratio l 101 135 dB Match (Note 7) ∆PSRR Power Supply Rejection Ratio l 106 135 dB Match (Note 7) IS Supply Current per Amplifier 135 150 µA TA = 0°C to 70°C l 190 µA TA = –40°C to 85°C l 210 µA 60112fc 5 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Package/Order Information Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Application Related Parts
