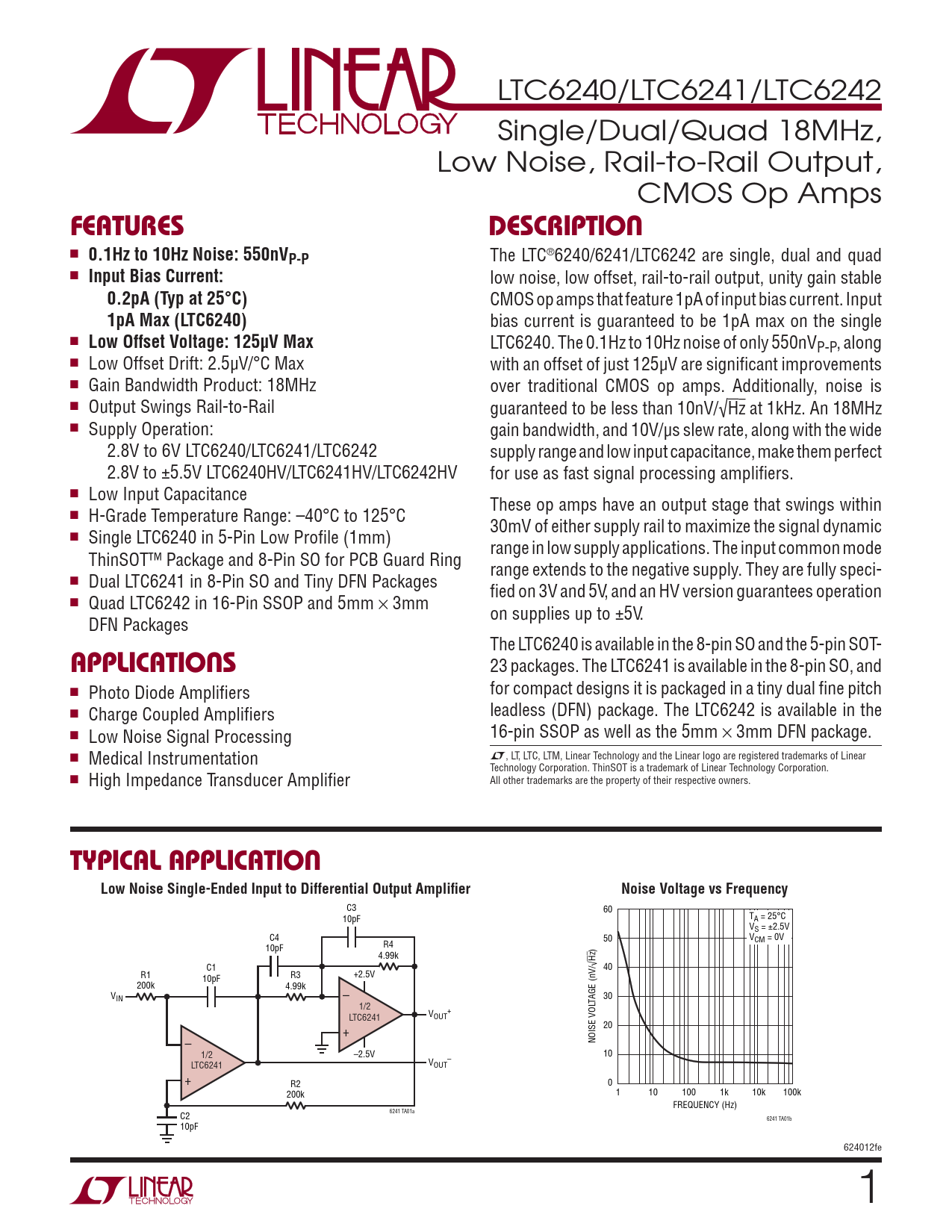

LTC6240/LTC6241/LTC6242 Single/Dual/Quad 18MHz, Low Noise, Rail-to-Rail Output, CMOS Op Amps
FEATURES DESCRIPTION
n
0.1Hz to 10Hz Noise: 550nVP-P
The LTC®6240/6241/LTC6242 are single, dual and quad n
Input Bias Current:
low noise, low offset, rail-to-rail output, unity gain stable
0.2pA (Typ at 25°C)
CMOS op amps that feature 1pA of input bias current. Input
1pA Max (LTC6240)
bias current is guaranteed to be 1pA max on the single n
Low Offset Voltage: 125μV Max
LTC6240. The 0.1Hz to 10Hz noise of only 550nVP-P, along n Low Offset Drift: 2.5μV/°C Max with an offset of just 125μV are signifi cant improvements n Gain Bandwidth Product: 18MHz over traditional CMOS op amps. Additionally, noise is n Output Swings Rail-to-Rail guaranteed to be less than 10nV/√Hz at 1kHz. An 18MHz n Supply Operation: gain bandwidth, and 10V/μs slew rate, along with the wide 2.8V to 6V LTC6240/LTC6241/LTC6242 supply range and low input capacitance, make them perfect 2.8V to ±5.5V LTC6240HV/LTC6241HV/LTC6242HV for use as fast signal processing amplifi ers. n Low Input Capacitance These op amps have an output stage that swings within n H-Grade Temperature Range: –40°C to 125°C 30mV of either supply rail to maximize the signal dynamic n Single LTC6240 in 5-Pin Low Profi le (1mm) range in low supply applications. The input common mode ThinSOT™ Package and 8-Pin SO for PCB Guard Ring range extends to the negative supply. They are fully speci- n Dual LTC6241 in 8-Pin SO and Tiny DFN Packages fi ed on 3V and 5V, and an HV version guarantees operation n Quad LTC6242 in 16-Pin SSOP and 5mm × 3mm on supplies up to ±5V. DFN Packages The LTC6240 is available in the 8-pin SO and the 5-pin SOT-
APPLICATIONS
23 packages. The LTC6241 is available in the 8-pin SO, and n for compact designs it is packaged in a tiny dual fi ne pitch Photo Diode Amplifi ers n leadless (DFN) package. The LTC6242 is available in the Charge Coupled Amplifi ers n 16-pin SSOP as well as the 5mm Low Noise Signal Processing × 3mm DFN package. n Medical Instrumentation L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. ThinSOT is a trademark of Linear Technology Corporation. n High Impedance Transducer Amplifi er All other trademarks are the property of their respective owners.
TYPICAL APPLICATION Low Noise Single-Ended Input to Differential Output Amplifi er Noise Voltage vs Frequency
C3 60 10pF TA = 25°C VS = ±2.5V C4 50 VCM = 0V R4 10pF ) 4.99k Hz C1 /√ 40 R1 10pF R3 +2.5V 200k 4.99k GE (nV VIN – TA 30 1/2 V + LTC6241 OUT 20 + – NOISE VOL 1/2 –2.5V 10 V – LTC6241 OUT + R2 0 200k 1 10 100 1k 10k 100k FREQUENCY (Hz) 6241 TA01a C2 6241 TA01b 10pF 624012fe 1
