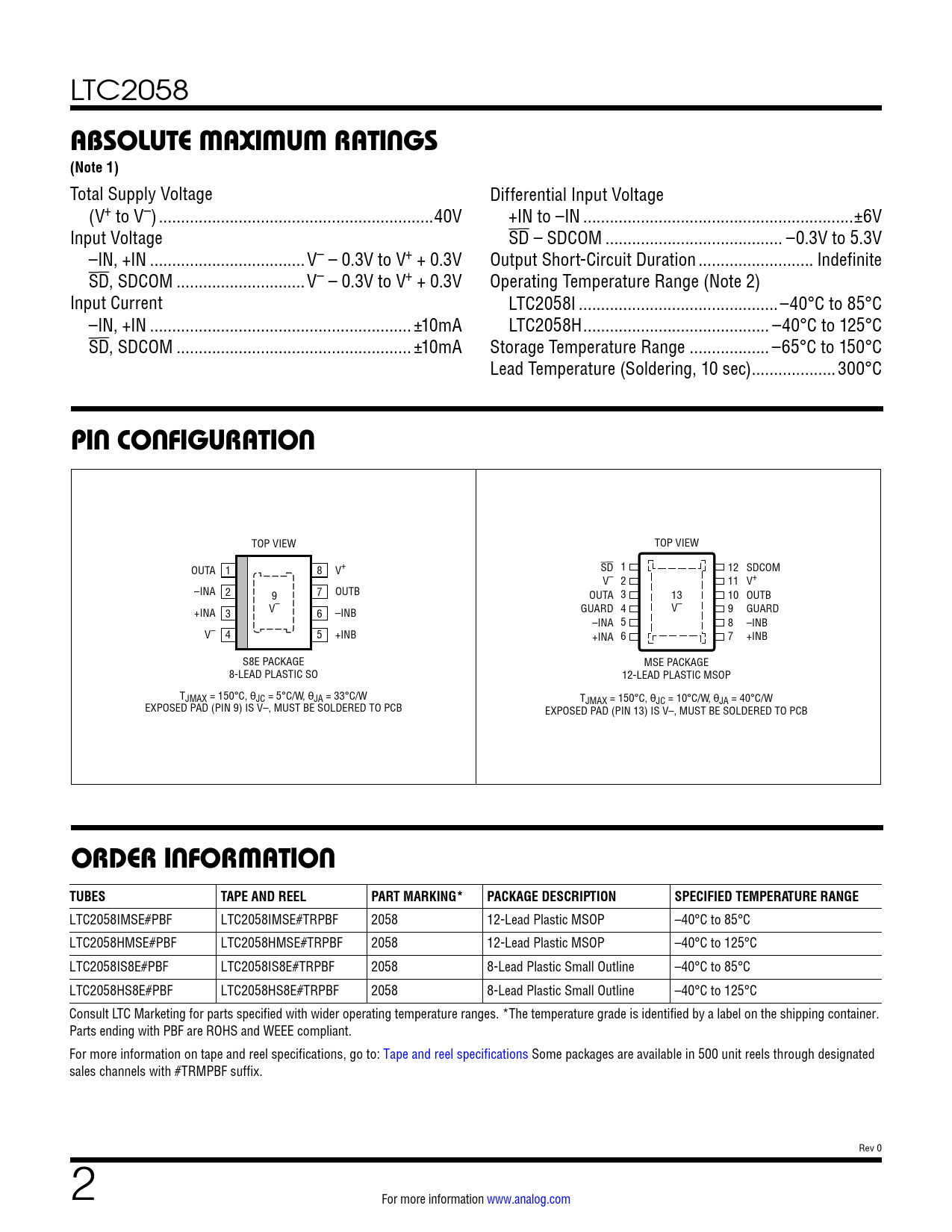

LTC2058
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage Differential Input Voltage (V+ to V–) ..40V +IN to –IN ...±6V Input Voltage SD – SDCOM .. –0.3V to 5.3V –IN, +IN ...V– – 0.3V to V+ + 0.3V Output Short-Circuit Duration .. Indefinite SD, SDCOM ...V– – 0.3V to V+ + 0.3V Operating Temperature Range (Note 2) Input Current LTC2058I ...–40°C to 85°C –IN, +IN ... ±10mA LTC2058H .. –40°C to 125°C SD, SDCOM ... ±10mA Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW OUTA 1 8 V+ SD 1 12 SDCOM V– 2 11 V+ –INA 2 7 9 OUTB OUTA 3 13 10 OUTB +INA 3 V– 6 –INB GUARD 4 V– 9 GUARD –INA 5 8 –INB V– 4 5 +INB +INA 6 7 +INB S8E PACKAGE MSE PACKAGE 8-LEAD PLASTIC SO 12-LEAD PLASTIC MSOP TJMAX = 150°C, θJC = 5°C/W, θJA = 33°C/W TJMAX = 150°C, θJC = 10°C/W, θJA = 40°C/W EXPOSED PAD (PIN 9) IS V–, MUST BE SOLDERED TO PCB EXPOSED PAD (PIN 13) IS V–, MUST BE SOLDERED TO PCB
ORDER INFORMATION TUBES TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC2058IMSE#PBF LTC2058IMSE#TRPBF 2058 12-Lead Plastic MSOP –40°C to 85°C LTC2058HMSE#PBF LTC2058HMSE#TRPBF 2058 12-Lead Plastic MSOP –40°C to 125°C LTC2058IS8E#PBF LTC2058IS8E#TRPBF 2058 8-Lead Plastic Small Outline –40°C to 85°C LTC2058HS8E#PBF LTC2058HS8E#TRPBF 2058 8-Lead Plastic Small Outline –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Parts ending with PBF are ROHS and WEEE compliant. For more information on tape and reel specifications, go to: Tape and reel specifications Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev 0 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagrams Applications Information Typical Applications Package Description Typical Application Related Parts
