Datasheet LT1004 (Analog Devices) - 9
| Hersteller | Analog Devices |
| Beschreibung | Micropower Voltage Reference |
| Seiten / Seite | 12 / 9 — package DescripTion. Please refer to … |
| Dateiformat / Größe | PDF / 684 Kb |
| Dokumentensprache | Englisch |
package DescripTion. Please refer to http://www.linear.com/product/LT1004#packaging for the most recent package drawings
Modelllinie für dieses Datenblatt
- LT1004C-1.2DICE LT1004C-1.2DICE#MILDICE LT1004C-2.5DICE LT1004C-2.5DICE#MILDICE LT1004CS8-1.2#PBF LT1004CS8-1.2#TRPBF LT1004CS8-2.5#PBF LT1004CS8-2.5#TRPBF LT1004CZ-1.2#PBF LT1004CZ-1.2#TRPBF LT1004CZ-2.5#PBF LT1004CZ-2.5#TRPBF LT1004IS8-1.2#PBF LT1004IS8-1.2#TRPBF LT1004IS8-2.5#PBF LT1004IS8-2.5#TRPBF LT1004IZ-1.2#PBF LT1004IZ-1.2#TRPBF LT1004IZ-2.5#PBF LT1004IZ-2.5#TRPBF
Textversion des Dokuments
LT1004

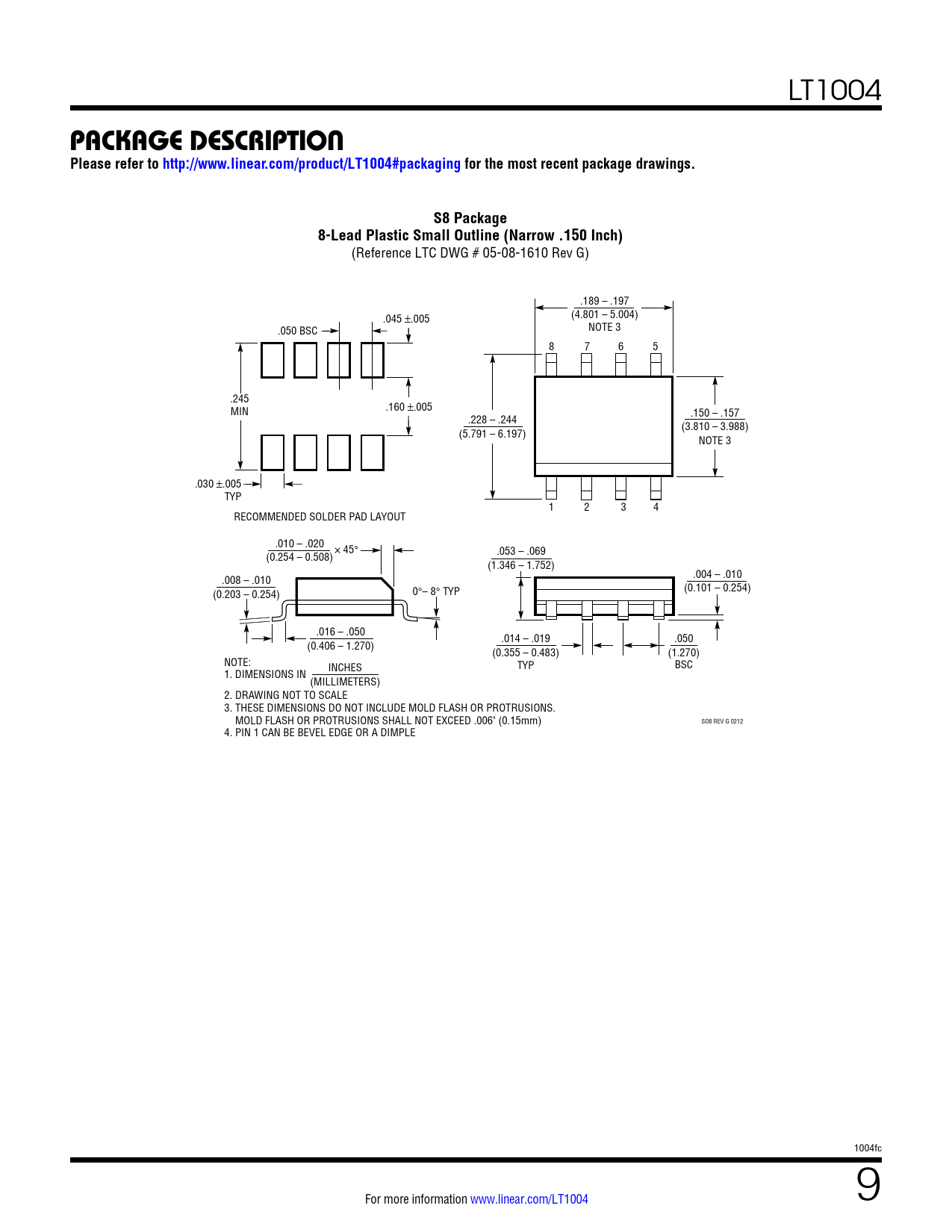

package DescripTion Please refer to http://www.linear.com/product/LT1004#packaging for the most recent package drawings. S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch)
(Reference LTC DWG # 05-08-1610 Rev G) .189 – .197 (4.801 – 5.004) .045 ±.005 NOTE 3 .050 BSC 8 7 6 5 .245 MIN .160 ±.005 .150 – .157 .228 – .244 (3.810 – 3.988) (5.791 – 6.197) NOTE 3 .030 ±.005 TYP 1 2 3 4 RECOMMENDED SOLDER PAD LAYOUT .010 – .020 × 45° (0.254 – 0.508) .053 – .069 (1.346 – 1.752) .008 – .010 .004 – .010 0 (0.203 – 0.254) °– 8° TYP (0.101 – 0.254) .016 – .050 .014 – .019 .050 (0.406 – 1.270) (0.355 – 0.483) (1.270) NOTE: INCHES TYP BSC 1. DIMENSIONS IN (MILLIMETERS) 2. DRAWING NOT TO SCALE 3. THESE DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSIONS. MOLD FLASH OR PROTRUSIONS SHALL NOT EXCEED .006" (0.15mm) SO8 REV G 0212 4. PIN 1 CAN BE BEVEL EDGE OR A DIMPLE 1004fc For more information www.linear.com/LT1004 9
