Datasheet ADR510 (Analog Devices) - 10
| Hersteller | Analog Devices |
| Beschreibung | 1.0 V Precision Low Noise Shunt Voltage Reference |
| Seiten / Seite | 12 / 10 — ADR510. OUTLINE DIMENSIONS. 3.04 2.90 2.80. 1.40 1.30 1.20. 2.64 2.10. … |
| Revision | B |
| Dateiformat / Größe | PDF / 394 Kb |
| Dokumentensprache | Englisch |
ADR510. OUTLINE DIMENSIONS. 3.04 2.90 2.80. 1.40 1.30 1.20. 2.64 2.10. PIN 1. 0.95 BSC. 1.90 BSC. 1.12 0.89. 0.10. 0.20. 0.01. 0.08. 0.60. 0.50
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 10 link to page 10

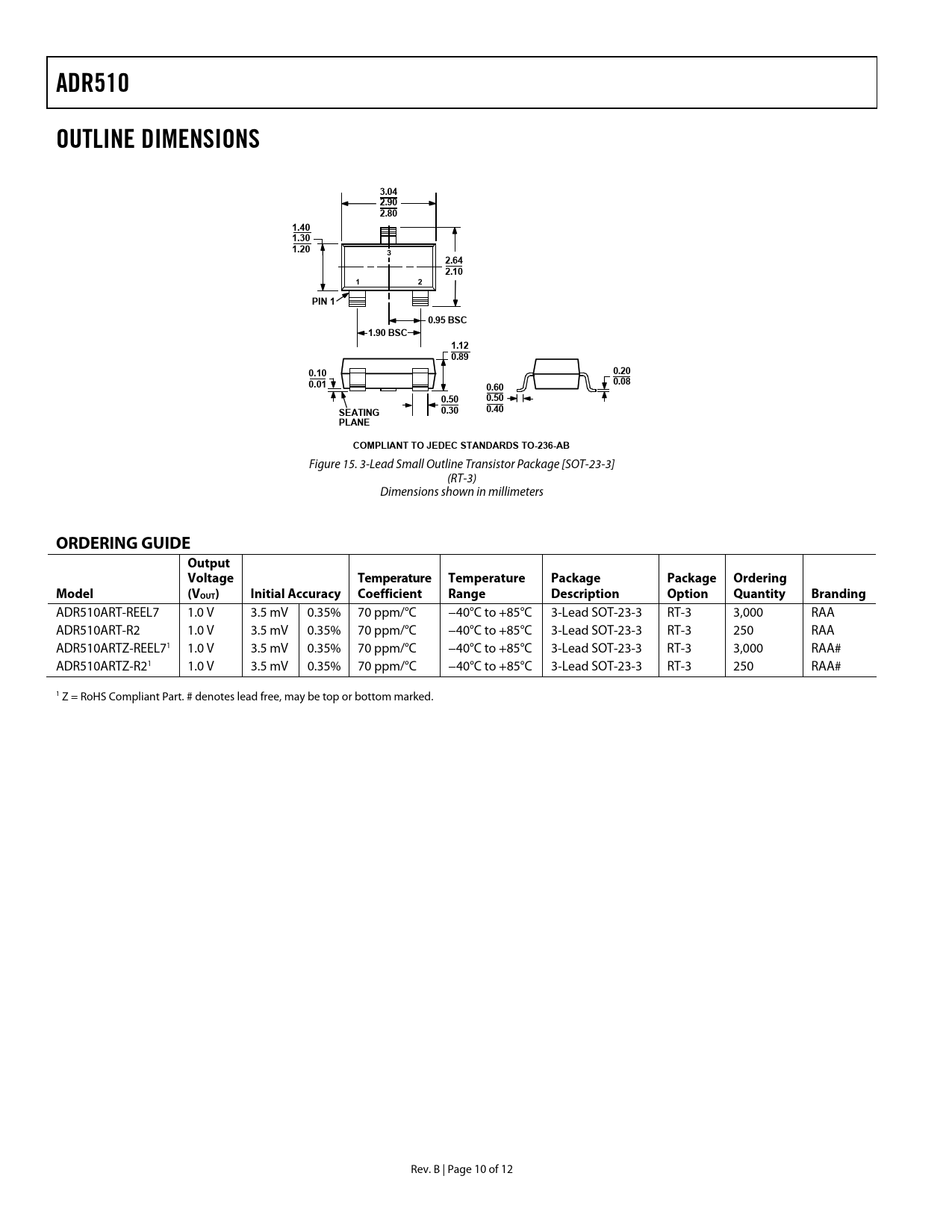

ADR510 OUTLINE DIMENSIONS 3.04 2.90 2.80 1.40 1.30 1.20 3 2.64 2.10 1 2 PIN 1 0.95 BSC 1.90 BSC 1.12 0.89 0.10 0.20 0.01 0.08 0.60 0.50 0.50 SEATING 0.30 0.40 PLANE COMPLIANT TO JEDEC STANDARDS TO-236-AB
Figure 15. 3-Lead Small Outline Transistor Package [SOT-23-3] (RT-3) Dimensions shown in millimeters
ORDERING GUIDE Output Voltage Temperature Temperature Package Package Ordering Model (VOUT) Initial Accuracy Coefficient Range Description Option Quantity Branding
ADR510ART-REEL7 1.0 V 3.5 mV 0.35% 70 ppm/°C −40°C to +85°C 3-Lead SOT-23-3 RT-3 3,000 RAA ADR510ART-R2 1.0 V 3.5 mV 0.35% 70 ppm/°C −40°C to +85°C 3-Lead SOT-23-3 RT-3 250 RAA ADR510ARTZ-REEL71 1.0 V 3.5 mV 0.35% 70 ppm/°C −40°C to +85°C 3-Lead SOT-23-3 RT-3 3,000 RAA# ADR510ARTZ-R21 1.0 V 3.5 mV 0.35% 70 ppm/°C −40°C to +85°C 3-Lead SOT-23-3 RT-3 250 RAA# 1 Z = RoHS Compliant Part. # denotes lead free, may be top or bottom marked. Rev. B | Page 10 of 12 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS PARAMETER DEFINITIONS TEMPERATURE COEFFICIENT THERMAL HYSTERESIS APPLICATIONS INFORMATION ADJUSTABLE PRECISION VOLTAGE SOURCE OUTPUT VOLTAGE TRIM USING THE ADR510 WITH PRECISION DATA CONVERTERS PRECISE NEGATIVE VOLTAGE REFERENCE OUTLINE DIMENSIONS ORDERING GUIDE
