Datasheet LTC4162-F (Analog Devices) - 3
| Hersteller | Analog Devices |
| Beschreibung | 35V/3.2A Multi-Cell LiFePO4 Step-Down Battery Charger with PowerPath and I2C Telemetry |
| Seiten / Seite | 50 / 3 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. … |
| Revision | A |
| Dateiformat / Größe | PDF / 1.1 Mb |
| Dokumentensprache | Englisch |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. PART NUMBER. PART. TAPE AND. TEMP. MARKING*. REEL. GRADE
Textversion des Dokuments
LTC4162-F

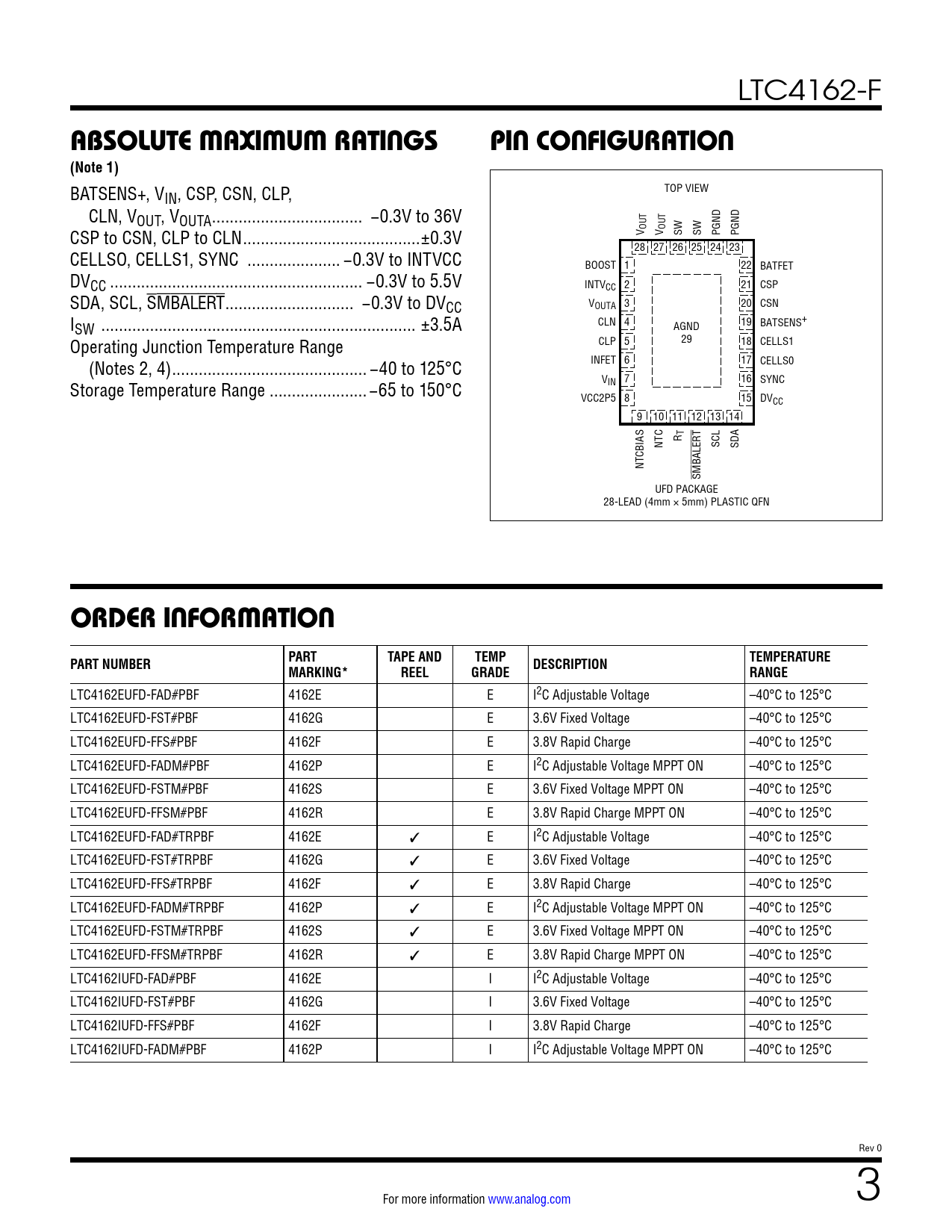

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
BATSENS+, V TOP VIEW IN, CSP, CSN, CLP, CLN, VOUT, VOUTA .. −0.3V to 36V CSP to CSN, CLP to CLN ..±0.3V V OUT V OUT SW SW PGND PGND 28 27 26 25 24 23 CELLSO, CELLS1, SYNC ... −0.3V to INTVCC BOOST 1 22 BATFET DVCC ... −0.3V to 5.5V INTVCC 2 21 CSP SDA, SCL, SMBALERT ... −0.3V to DVCC VOUTA 3 20 CSN ISW ... ±3.5A CLN 4 19 BATSENS+ AGND Operating Junction Temperature Range CLP 5 29 18 CELLS1 (Notes 2, 4) .. −40 to 125°C INFET 6 17 CELLS0 Storage Temperature Range ..−65 to 150°C VIN 7 16 SYNC VCC2P5 8 15 DVCC 9 10 11 12 13 14 R T NTC SCL SDA NTCBIAS SMBALERT UFD PACKAGE 28-LEAD (4mm × 5mm) PLASTIC QFN TJMAX = 125°C, θJA = 43°C/W, θJC = 3.4°C/W EXPOSED PAD (PIN 29) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION PART NUMBER PART TAPE AND TEMP MARKING* REEL GRADE DESCRIPTION TEMPERATURE RANGE
LTC4162EUFD-FAD#PBF 4162E E I2C Adjustable Voltage –40°C to 125°C LTC4162EUFD-FST#PBF 4162G E 3.6V Fixed Voltage –40°C to 125°C LTC4162EUFD-FFS#PBF 4162F E 3.8V Rapid Charge –40°C to 125°C LTC4162EUFD-FADM#PBF 4162P E I2C Adjustable Voltage MPPT ON –40°C to 125°C LTC4162EUFD-FSTM#PBF 4162S E 3.6V Fixed Voltage MPPT ON –40°C to 125°C LTC4162EUFD-FFSM#PBF 4162R E 3.8V Rapid Charge MPPT ON –40°C to 125°C LTC4162EUFD-FAD#TRPBF 4162E ✓ E I2C Adjustable Voltage –40°C to 125°C LTC4162EUFD-FST#TRPBF 4162G ✓ E 3.6V Fixed Voltage –40°C to 125°C LTC4162EUFD-FFS#TRPBF 4162F ✓ E 3.8V Rapid Charge –40°C to 125°C LTC4162EUFD-FADM#TRPBF 4162P ✓ E I2C Adjustable Voltage MPPT ON –40°C to 125°C LTC4162EUFD-FSTM#TRPBF 4162S ✓ E 3.6V Fixed Voltage MPPT ON –40°C to 125°C LTC4162EUFD-FFSM#TRPBF 4162R ✓ E 3.8V Rapid Charge MPPT ON –40°C to 125°C LTC4162IUFD-FAD#PBF 4162E I I2C Adjustable Voltage –40°C to 125°C LTC4162IUFD-FST#PBF 4162G I 3.6V Fixed Voltage –40°C to 125°C LTC4162IUFD-FFS#PBF 4162F I 3.8V Rapid Charge –40°C to 125°C LTC4162IUFD-FADM#PBF 4162P I I2C Adjustable Voltage MPPT ON –40°C to 125°C Rev 0 For more information www.analog.com 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram ESD Diagram Timing Diagram Operation Applications Information Register Descriptions Typical Applications Package Description Typical Application Related Parts
