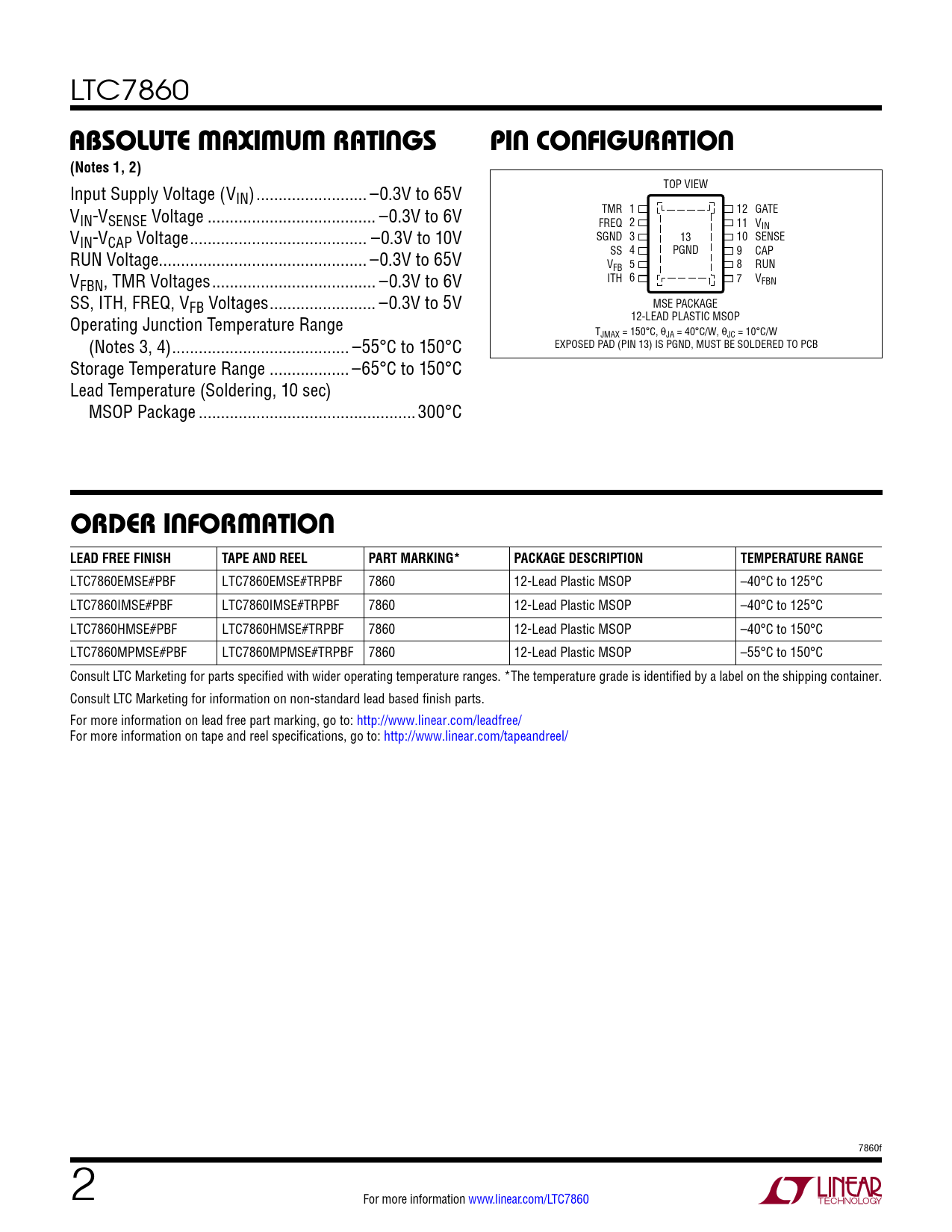

LTC7860
absoluTe MaxiMuM raTings pin conFiguraTion (Notes 1, 2)
Input Supply Voltage (V TOP VIEW IN) ... –0.3V to 65V V TMR 1 12 GATE IN-VSENSE Voltage .. –0.3V to 6V FREQ 2 11 V V IN IN-VCAP Voltage .. –0.3V to 10V SGND 3 13 10 SENSE RUN Voltage... –0.3V to 65V SS 4 PGND 9 CAP V 5 FB 8 RUN VFBN, TMR Voltages ... –0.3V to 6V ITH 6 7 VFBN SS, ITH, FREQ, VFB Voltages .. –0.3V to 5V MSE PACKAGE Operating Junction Temperature Range 12-LEAD PLASTIC MSOP T (Notes 3, 4) .. –55°C to 150°C JMAX = 150°C, θJA = 40°C/W, θJC = 10°C/W EXPOSED PAD (PIN 13) IS PGND, MUST BE SOLDERED TO PCB Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) MSOP Package ...300°C
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC7860EMSE#PBF LTC7860EMSE#TRPBF 7860 12-Lead Plastic MSOP –40°C to 125°C LTC7860IMSE#PBF LTC7860IMSE#TRPBF 7860 12-Lead Plastic MSOP –40°C to 125°C LTC7860HMSE#PBF LTC7860HMSE#TRPBF 7860 12-Lead Plastic MSOP –40°C to 150°C LTC7860MPMSE#PBF LTC7860MPMSE#TRPBF 7860 12-Lead Plastic MSOP –55°C to 150°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 7860f 2 For more information www.linear.com/LTC7860
