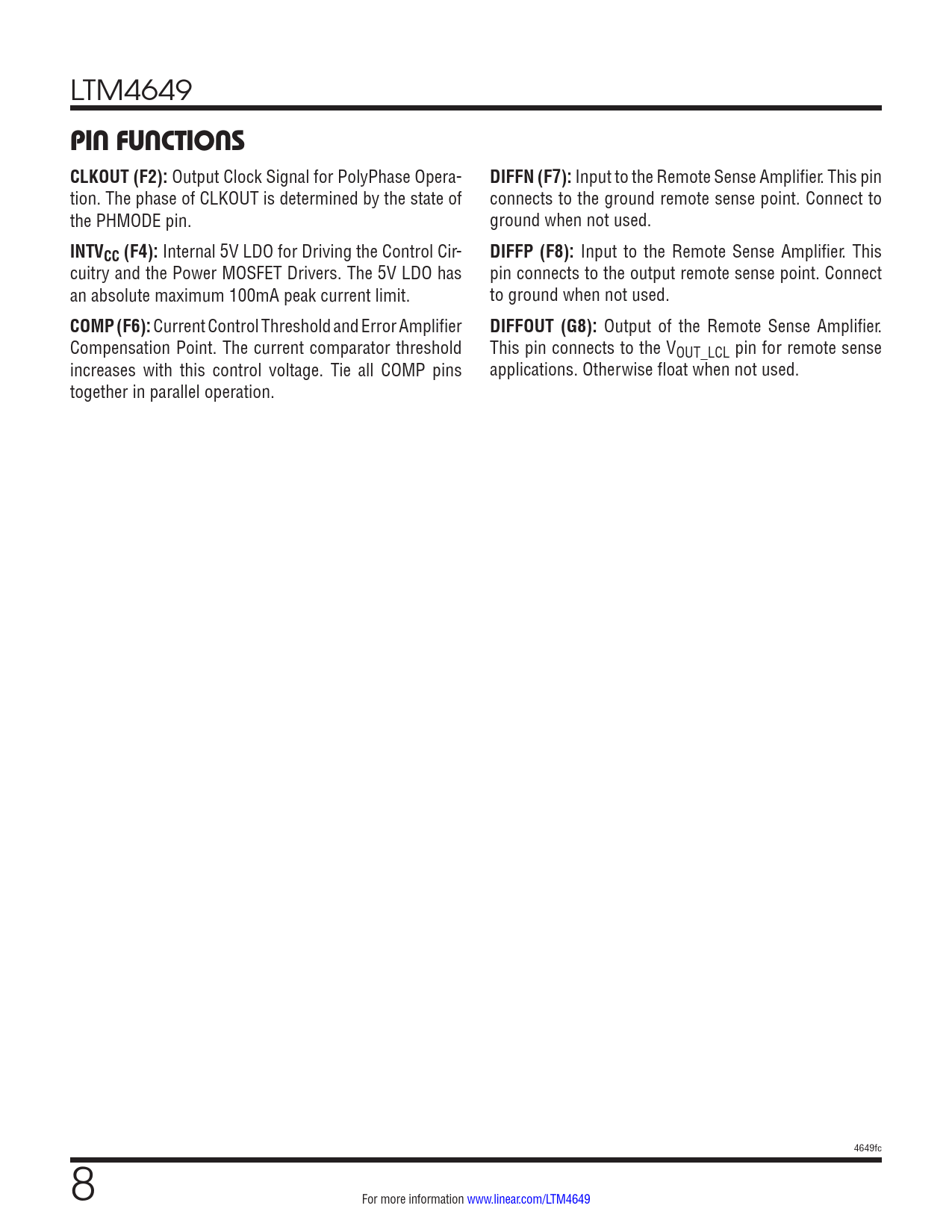

LTM4649
PIN FUNCTIONS CLKOUT (F2):
Output Clock Signal for PolyPhase Opera-
DIFFN (F7):
Input to the Remote Sense Amplifier. This pin tion. The phase of CLKOUT is determined by the state of connects to the ground remote sense point. Connect to the PHMODE pin. ground when not used.
INTVCC (F4):
Internal 5V LDO for Driving the Control Cir-
DIFFP (F8):
Input to the Remote Sense Amplifier. This cuitry and the Power MOSFET Drivers. The 5V LDO has pin connects to the output remote sense point. Connect an absolute maximum 100mA peak current limit. to ground when not used.
COMP (F6):
Current Control Threshold and Error Amplifier
DIFFOUT (G8):
Output of the Remote Sense Amplifier. Compensation Point. The current comparator threshold This pin connects to the VOUT_LCL pin for remote sense increases with this control voltage. Tie all COMP pins applications. Otherwise float when not used. together in parallel operation. 4649fc 8 For more information www.linear.com/LTM4649 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Package Photo Revision History Typical Application Design Resources Related Parts
