LTM4675
e lecTrical characTerisTics The
l

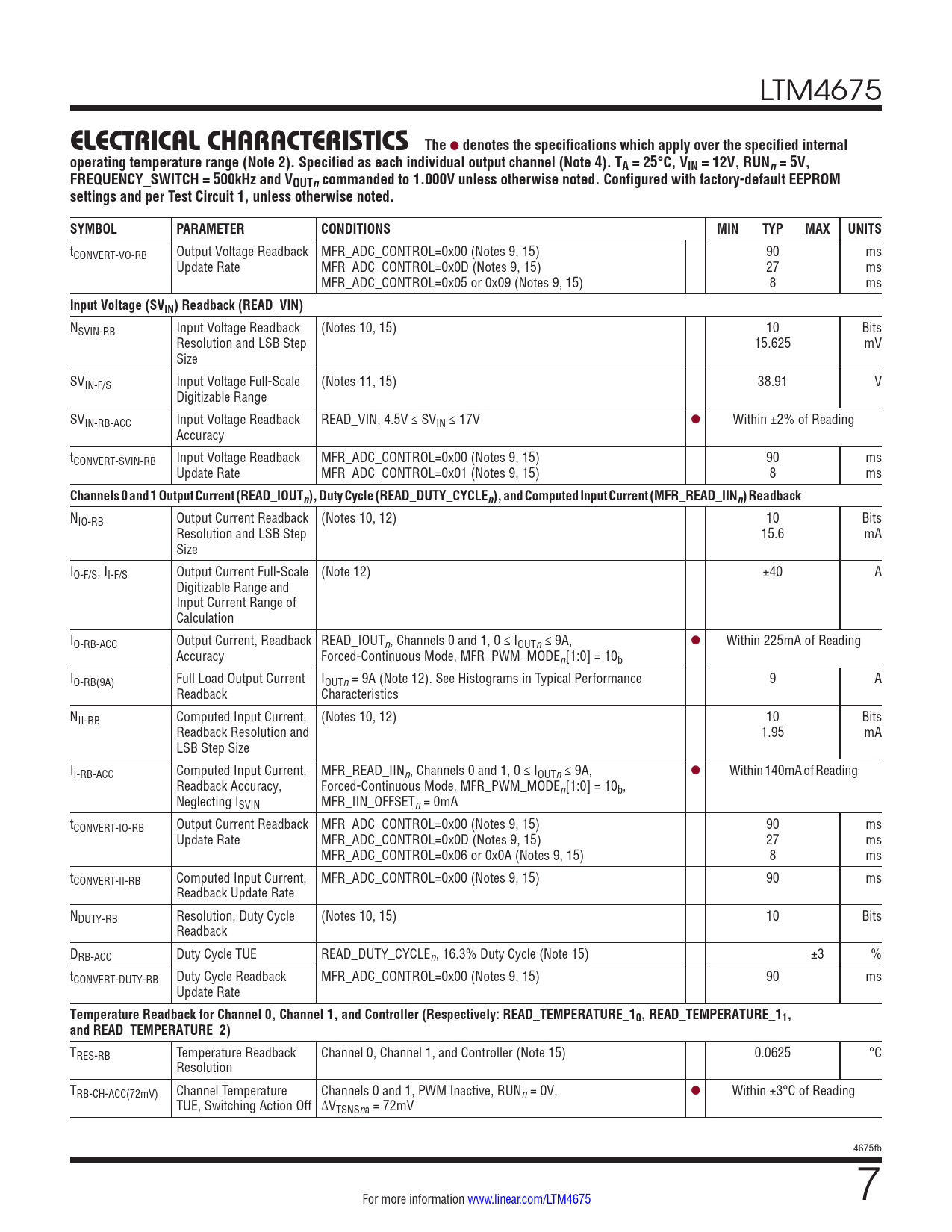

denotes the specifications which apply over the specified internal operating temperature range (Note 2). Specified as each individual output channel (Note 4). TA = 25°C, VIN = 12V, RUNn = 5V, FREQUENCY_SWITCH = 500kHz and VOUTn commanded to 1.000V unless otherwise noted. Configured with factory-default EEPROM settings and per Test Circuit 1, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
tCONVERT-VO-RB Output Voltage Readback MFR_ADC_CONTROL=0x00 (Notes 9, 15) 90 ms Update Rate MFR_ADC_CONTROL=0x0D (Notes 9, 15) 27 ms MFR_ADC_CONTROL=0x05 or 0x09 (Notes 9, 15) 8 ms
