Datasheet LT1460 (Analog Devices) - 2
| Hersteller | Analog Devices |
| Beschreibung | Micropower Precision Series Reference Family |
| Seiten / Seite | 26 / 2 — (Note 1) |
| Dateiformat / Größe | PDF / 1.1 Mb |
| Dokumentensprache | Englisch |
(Note 1)
Modelllinie für dieses Datenblatt
- LT1460ACN8-10#PBF LT1460ACN8-2.5#PBF LT1460ACN8-5#PBF LT1460ACS8-10#PBF LT1460ACS8-10#TRPBF LT1460ACS8-2.5#PBF LT1460ACS8-2.5#TRPBF LT1460ACS8-5#PBF LT1460ACS8-5#TRPBF LT1460BIN8-10#PBF LT1460BIN8-2.5#PBF LT1460BIN8-5#PBF LT1460BIS8-10#PBF LT1460BIS8-10#TRPBF LT1460BIS8-2.5#PBF LT1460BIS8-2.5#TRPBF LT1460BIS8-5#PBF LT1460BIS8-5#TRPBF LT1460CCMS8-10#PBF LT1460CCMS8-10#TRPBF LT1460CCMS8-2.5#PBF LT1460CCMS8-2.5#TRPBF LT1460CCMS8-5#PBF LT1460CCMS8-5#TRPBF LT1460DCN8-10#PBF LT1460DCN8-2.5#PBF LT1460DCN8-5#PBF LT1460DCS8-10#PBF LT1460DCS8-10#TRPBF LT1460DCS8-2.5#PBF LT1460DCS8-2.5#TRPBF LT1460DCS8-5#PBF LT1460DCS8-5#TRPBF LT1460EIN8-10#PBF LT1460EIN8-2.5#PBF LT1460EIN8-5#PBF LT1460EIS8-10#PBF LT1460EIS8-10#TRPBF LT1460EIS8-2.5#PBF LT1460EIS8-2.5#TRPBF LT1460EIS8-5#PBF LT1460EIS8-5#TRPBF LT1460FCMS8-10#PBF LT1460FCMS8-10#TRPBF LT1460FCMS8-2.5#PBF LT1460FCMS8-2.5#TRPBF LT1460FCMS8-5#PBF LT1460FCMS8-5#TRPBF LT1460GCZ-10#PBF LT1460GCZ-10#TRPBF LT1460GCZ-2.5#PBF LT1460GCZ-2.5#TRPBF LT1460GCZ-5#PBF LT1460GCZ-5#TRPBF LT1460GIZ-10#PBF LT1460GIZ-10#TRPBF LT1460GIZ-2.5#PBF LT1460GIZ-2.5#TRPBF LT1460GIZ-5#PBF LT1460GIZ-5#TRPBF LT1460HCS3-10#PBF LT1460HCS3-10#TRMPBF LT1460HCS3-10#TRPBF LT1460HCS3-2.5#PBF LT1460HCS3-2.5#TRMPBF LT1460HCS3-2.5#TRPBF LT1460HCS3-3#PBF LT1460HCS3-3#TRMPBF LT1460HCS3-3#TRPBF LT1460HCS3-3.3#PBF LT1460HCS3-3.3#TRMPBF LT1460HCS3-3.3#TRPBF LT1460HCS3-5#PBF LT1460HCS3-5#TRMPBF LT1460HCS3-5#TRPBF LT1460JCS3-10#PBF LT1460JCS3-10#TRMPBF LT1460JCS3-10#TRPBF LT1460JCS3-2.5#PBF LT1460JCS3-2.5#TRMPBF LT1460JCS3-2.5#TRPBF LT1460JCS3-3#PBF LT1460JCS3-3#TRMPBF LT1460JCS3-3#TRPBF LT1460JCS3-3.3#PBF LT1460JCS3-3.3#TRMPBF LT1460JCS3-3.3#TRPBF LT1460JCS3-5#PBF LT1460JCS3-5#TRMPBF LT1460JCS3-5#TRPBF LT1460KCS3-10#PBF LT1460KCS3-10#TRMPBF LT1460KCS3-10#TRPBF LT1460KCS3-2.5#PBF LT1460KCS3-2.5#TRMPBF LT1460KCS3-2.5#TRPBF LT1460KCS3-3#PBF LT1460KCS3-3#TRMPBF LT1460KCS3-3#TRPBF LT1460KCS3-3.3#PBF LT1460KCS3-3.3#TRMPBF LT1460KCS3-3.3#TRPBF LT1460KCS3-5#PBF LT1460KCS3-5#TRMPBF LT1460KCS3-5#TRPBF LT1460LHS8-2.5#PBF LT1460LHS8-2.5#TRPBF LT1460LHS8-5#PBF LT1460LHS8-5#TRPBF LT1460MHS8-2.5#PBF LT1460MHS8-2.5#TRPBF LT1460MHS8-5#PBF LT1460MHS8-5#TRPBF
Textversion des Dokuments

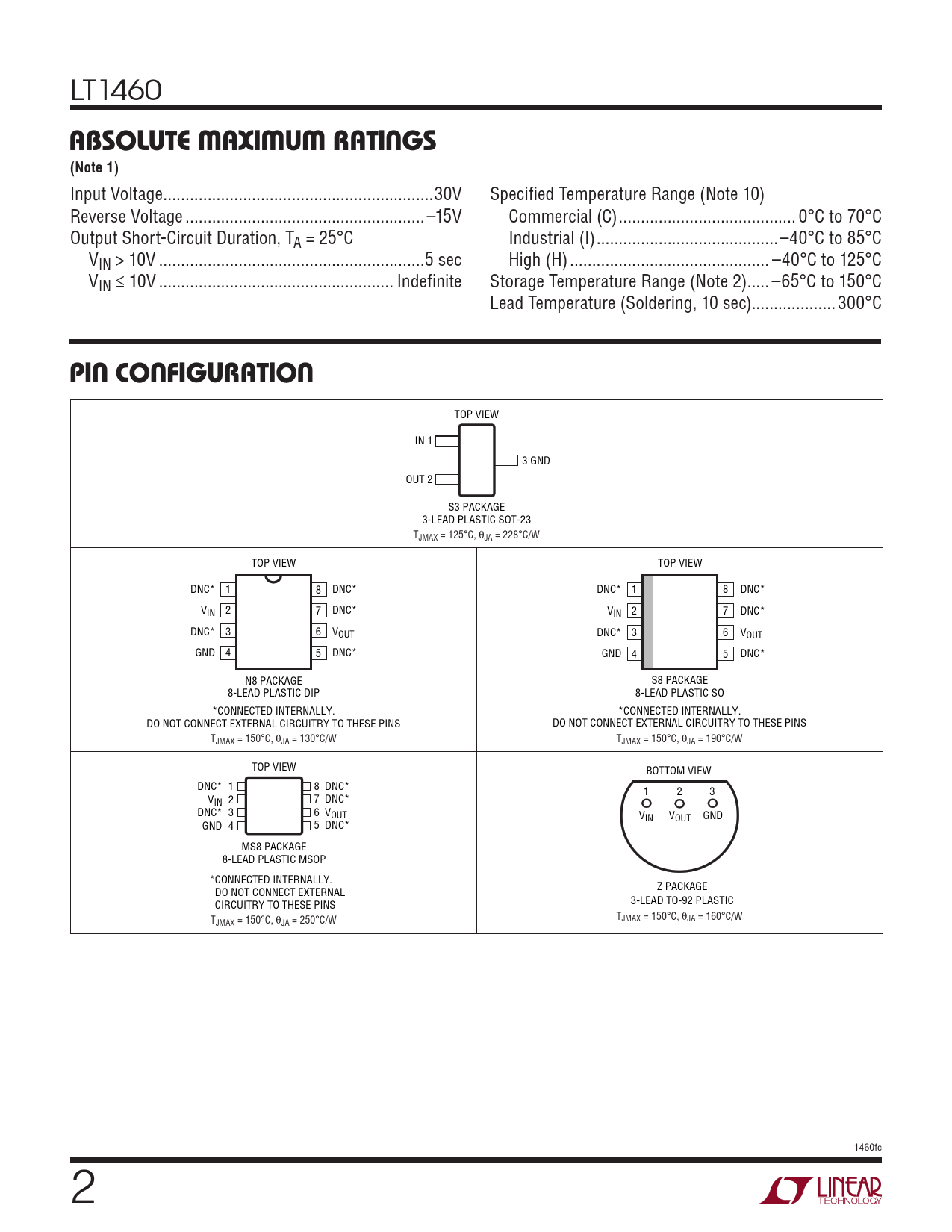

LT1460 absolute MaxiMuM ratings
(Note 1)
Input Voltage ...30V Specified Temperature Range (Note 10) Reverse Voltage ..–15V Commercial (C) .. 0°C to 70°C Output Short-Circuit Duration, TA = 25°C Industrial (I) ...–40°C to 85°C VIN > 10V ..5 sec High (H) ... –40°C to 125°C VIN ≤ 10V ... Indefinite Storage Temperature Range (Note 2) ... –65°C to 150°C Lead Temperature (Soldering, 10 sec)...300°C pin conFiguration TOP VIEW IN 1 3 GND OUT 2 S3 PACKAGE 3-LEAD PLASTIC SOT-23 TJMAX = 125°C, θJA = 228°C/W TOP VIEW TOP VIEW DNC* 1 8 DNC* DNC* 1 8 DNC* VIN 2 7 DNC* VIN 2 7 DNC* DNC* 3 6 VOUT DNC* 3 6 VOUT GND 4 5 DNC* GND 4 5 DNC* N8 PACKAGE S8 PACKAGE 8-LEAD PLASTIC DIP 8-LEAD PLASTIC SO *CONNECTED INTERNALLY. *CONNECTED INTERNALLY. DO NOT CONNECT EXTERNAL CIRCUITRY TO THESE PINS DO NOT CONNECT EXTERNAL CIRCUITRY TO THESE PINS TJMAX = 150°C, θJA = 130°C/W TJMAX = 150°C, θJA = 190°C/W TOP VIEW BOTTOM VIEW DNC* 1 8 DNC* 1 2 3 VIN 2 7 DNC* DNC* 3 6 VOUT VIN VOUT GND GND 4 5 DNC* MS8 PACKAGE 8-LEAD PLASTIC MSOP *CONNECTED INTERNALLY. DO NOT CONNECT EXTERNAL Z PACKAGE CIRCUITRY TO THESE PINS 3-LEAD TO-92 PLASTIC T T JMAX = 150°C, θJA = 250°C/W JMAX = 150°C, θJA = 160°C/W 1460fc Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Available Options Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Applications Related Parts
