Datasheet LT1461 (Analog Devices) - 10
| Hersteller | Analog Devices |
| Beschreibung | Micropower Precision Low Dropout Series Voltage Reference Family |
| Seiten / Seite | 18 / 10 — applicaTions inForMaTion. Bypass and Load Capacitors. Figure 1. 1mA Load … |
| Dateiformat / Größe | PDF / 1.8 Mb |
| Dokumentensprache | Englisch |
applicaTions inForMaTion. Bypass and Load Capacitors. Figure 1. 1mA Load Step with CL = 1µF
Modelllinie für dieses Datenblatt
- LT1461ACS8-2.5#PBF LT1461ACS8-2.5#TRPBF LT1461ACS8-3#PBF LT1461ACS8-3#TRPBF LT1461ACS8-3.3#PBF LT1461ACS8-3.3#TRPBF LT1461ACS8-4#PBF LT1461ACS8-4#TRPBF LT1461ACS8-5#PBF LT1461ACS8-5#TRPBF LT1461AIS8-2.5#PBF LT1461AIS8-2.5#TRPBF LT1461AIS8-3#PBF LT1461AIS8-3#TRPBF LT1461AIS8-3.3#PBF LT1461AIS8-3.3#TRPBF LT1461AIS8-4#PBF LT1461AIS8-4#TRPBF LT1461AIS8-5#PBF LT1461AIS8-5#TRPBF LT1461BCS8-2.5#PBF LT1461BCS8-2.5#TRPBF LT1461BCS8-3#PBF LT1461BCS8-3#TRPBF LT1461BCS8-3.3#PBF LT1461BCS8-3.3#TRPBF LT1461BCS8-4#PBF LT1461BCS8-4#TRPBF LT1461BCS8-5#PBF LT1461BCS8-5#TRPBF LT1461BIS8-2.5#PBF LT1461BIS8-2.5#TRPBF LT1461BIS8-3#PBF LT1461BIS8-3#TRPBF LT1461BIS8-3.3#PBF LT1461BIS8-3.3#TRPBF LT1461BIS8-4#PBF LT1461BIS8-4#TRPBF LT1461BIS8-5#PBF LT1461BIS8-5#TRPBF LT1461CCS8-2.5#PBF LT1461CCS8-2.5#TRPBF LT1461CCS8-3#PBF LT1461CCS8-3#TRPBF LT1461CCS8-3.3#PBF LT1461CCS8-3.3#TRPBF LT1461CCS8-4#PBF LT1461CCS8-4#TRPBF LT1461CCS8-5#PBF LT1461CCS8-5#TRPBF LT1461CIS8-2.5#PBF LT1461CIS8-2.5#TRPBF LT1461CIS8-3#PBF LT1461CIS8-3#TRPBF LT1461CIS8-3.3#PBF LT1461CIS8-3.3#TRPBF LT1461CIS8-4#PBF LT1461CIS8-4#TRPBF LT1461CIS8-5#PBF LT1461CIS8-5#TRPBF LT1461DHS8-2.5#PBF LT1461DHS8-2.5#TRPBF LT1461DHS8-3#PBF LT1461DHS8-3#TRPBF LT1461DHS8-3.3#PBF LT1461DHS8-3.3#TRPBF LT1461DHS8-4#PBF LT1461DHS8-4#TRPBF LT1461DHS8-5#PBF LT1461DHS8-5#TRPBF LT1461DHS8-5#WTRPBF
Textversion des Dokuments
LT1461
applicaTions inForMaTion
Examples shown in this Applications section use the should be sufficient. The output capacitor acts as frequency LT1461-2.5. The response of other voltage options can compensation for the reference and cannot be omitted. be estimated by proper scaling. For light loads ≤1mA, a 1µF nonpolar output capacitor is usually adequate, but for higher loads (up to 75mA), the
Bypass and Load Capacitors

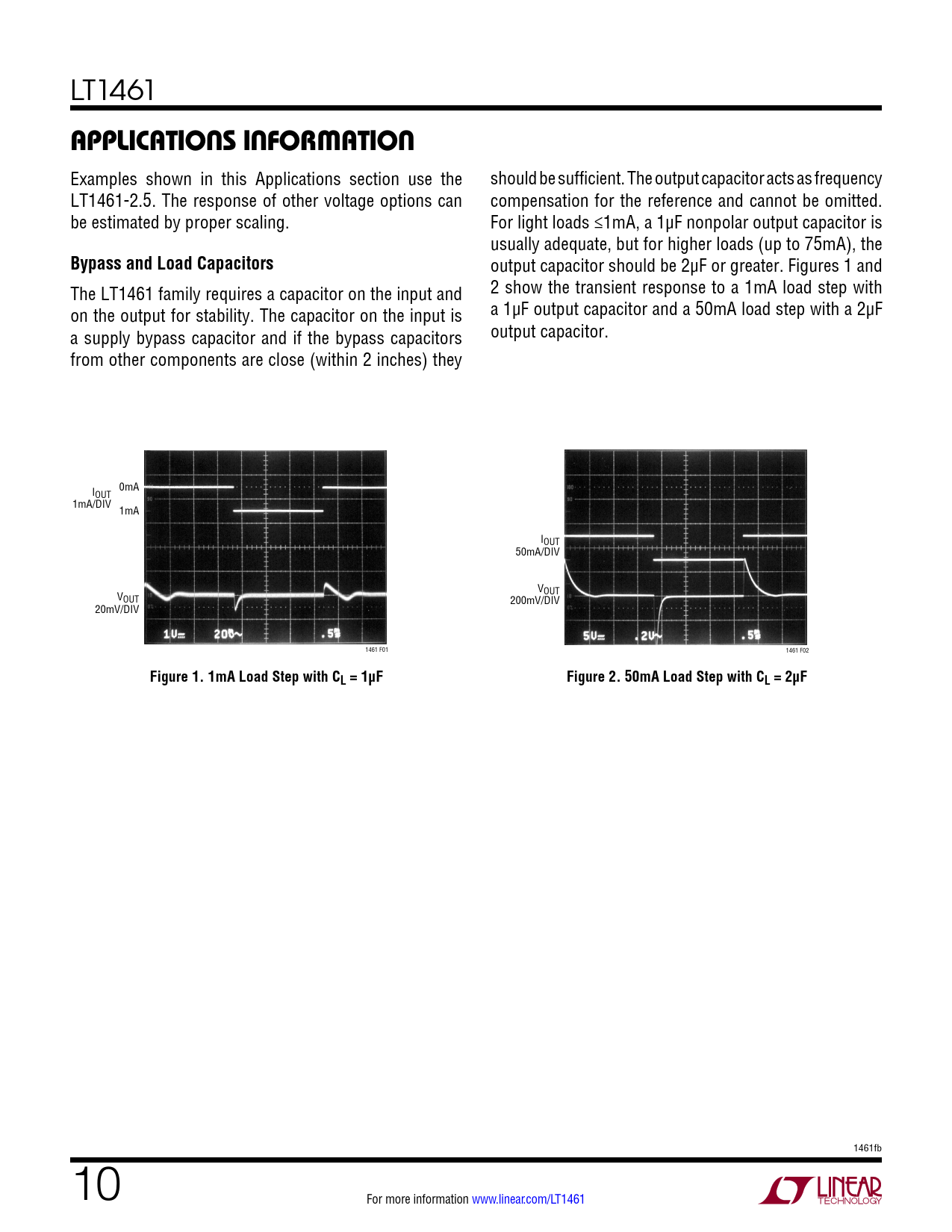

output capacitor should be 2µF or greater. Figures 1 and The LT1461 family requires a capacitor on the input and 2 show the transient response to a 1mA load step with on the output for stability. The capacitor on the input is a 1µF output capacitor and a 50mA load step with a 2µF a supply bypass capacitor and if the bypass capacitors output capacitor. from other components are close (within 2 inches) they 0mA IOUT 1mA/DIV 1mA IOUT 50mA/DIV V V OUT OUT 200mV/DIV 20mV/DIV 1461 F01 1461 F02
Figure 1. 1mA Load Step with CL = 1µF Figure 2. 50mA Load Step with CL = 2µF
1461fb 10 For more information www.linear.com/LT1461 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Available Options Electrical Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Application Related Parts
