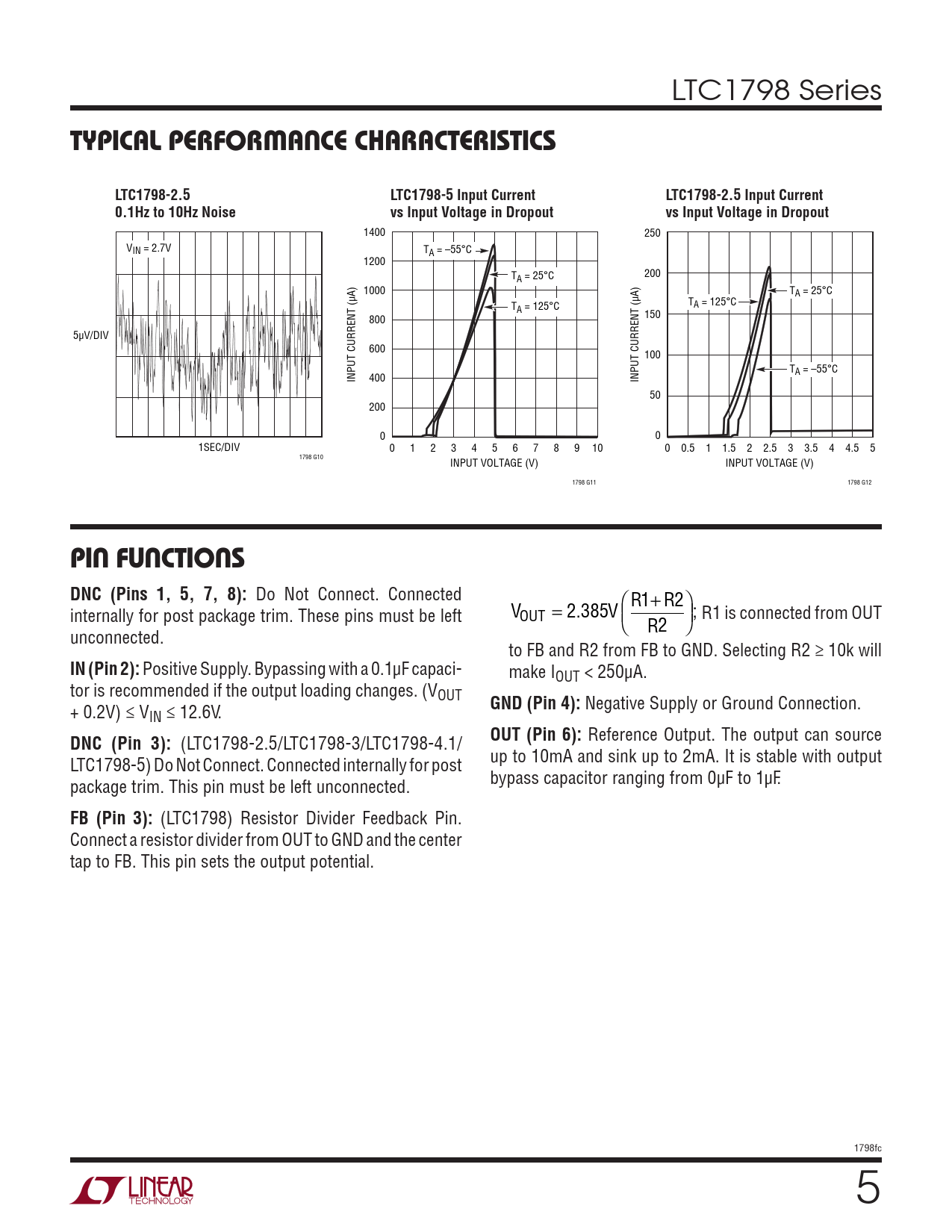

TYPICAL PERFORMANCE CHARACTERISTICS. LTC1798-2.5. LTC1798-5 Input Current. LTC1798-2.5 Input Current. 0.1Hz to 10Hz Noise
Modelllinie für dieses Datenblatt
- LTC1798CS8-2.5#PBF LTC1798CS8-2.5#PBF LTC1798CS8-2.5#TRPBF LTC1798CS8-2.5#TRPBF LTC1798CS8-3#PBF LTC1798CS8-3#PBF LTC1798CS8-3#TRPBF LTC1798CS8-3#TRPBF LTC1798CS8-4.1#PBF LTC1798CS8-4.1#PBF LTC1798CS8-4.1#TRPBF LTC1798CS8-4.1#TRPBF LTC1798CS8-5#PBF LTC1798CS8-5#PBF LTC1798CS8-5#TRMPBF LTC1798CS8-5#TRPBF LTC1798CS8-5#TRPBF
Textversion des Dokuments
LTC1798 Series
TYPICAL PERFORMANCE CHARACTERISTICS LTC1798-2.5 LTC1798-5 Input Current LTC1798-2.5 Input Current 0.1Hz to 10Hz Noise vs Input Voltage in Dropout vs Input Voltage in Dropout
1400 250 VIN = 2.7V TA = –55°C 1200 TA = 25°C 200 1000 TA = 25°C T T A = 125°C A = 125°C 800 150 5µV/DIV 600 100 T INPUT CURRENT (µA) 400 INPUT CURRENT (µA) A = –55°C 50 200 0 0 1SEC/DIV 0 1 2 3 4 5 6 7 8 9 10 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 1798 G10 INPUT VOLTAGE (V) INPUT VOLTAGE (V) 1798 G11 1798 G12
