Datasheet ADR130 (Analog Devices)
| Hersteller | Analog Devices |
| Beschreibung | Precision Series Sub-Band Gap Voltage Reference |
| Seiten / Seite | 16 / 1 — Precision Series Sub-Band Gap. Voltage Reference. Data Sheet. ADR130. … |
| Revision | D |
| Dateiformat / Größe | PDF / 629 Kb |
| Dokumentensprache | Englisch |
Precision Series Sub-Band Gap. Voltage Reference. Data Sheet. ADR130. FEATURES. PIN CONFIGURATION. Initial accuracy
Modelllinie für dieses Datenblatt
Textversion des Dokuments

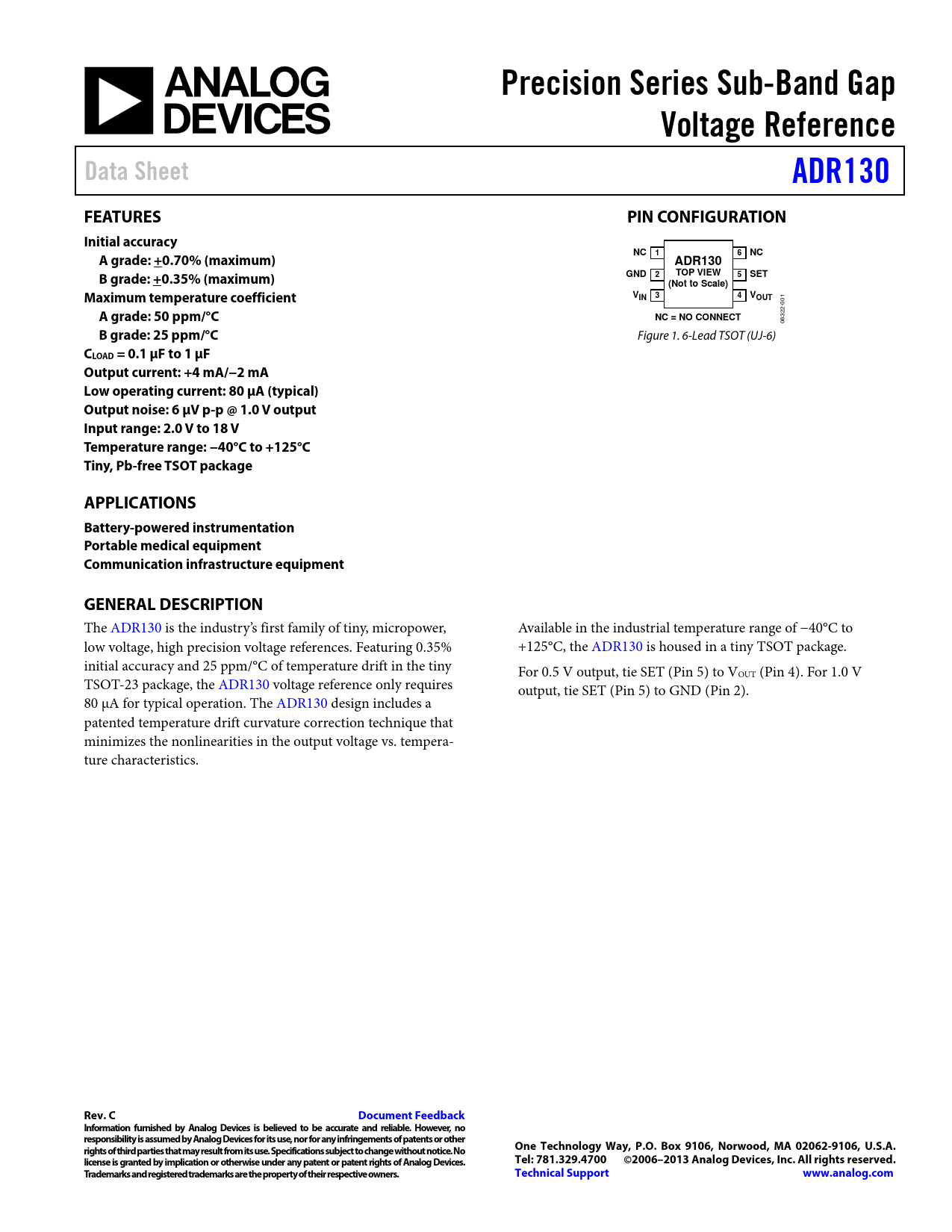

Precision Series Sub-Band Gap Voltage Reference Data Sheet ADR130 FEATURES PIN CONFIGURATION Initial accuracy A grade: +0.70% (maximum) NC 1 6 NC ADR130 B grade: +0.35% (maximum) GND 2 TOP VIEW 5 SET (Not to Scale) Maximum temperature coefficient VIN 3 4 VOUT
001
A grade: 50 ppm/°C NC = NO CONNECT
06322-
B grade: 25 ppm/°C
Figure 1. 6-Lead TSOT (UJ-6)
CLOAD = 0.1 µF to 1 µF Output current: +4 mA/−2 mA Low operating current: 80 µA (typical) Output noise: 6 µV p-p @ 1.0 V output Input range: 2.0 V to 18 V Temperature range: −40°C to +125°C Tiny, Pb-free TSOT package APPLICATIONS Battery-powered instrumentation Portable medical equipment Communication infrastructure equipment GENERAL DESCRIPTION
The ADR130 is the industry’s first family of tiny, micropower, Available in the industrial temperature range of −40°C to low voltage, high precision voltage references. Featuring 0.35% +125°C, the ADR130 is housed in a tiny TSOT package. initial accuracy and 25 ppm/°C of temperature drift in the tiny For 0.5 V output, tie SET (Pin 5) to VOUT (Pin 4). For 1.0 V TSOT-23 package, the ADR130 voltage reference only requires output, tie SET (Pin 5) to GND (Pin 2). 80 µA for typical operation. The ADR130 design includes a patented temperature drift curvature correction technique that minimizes the nonlinearities in the output voltage vs. tempera- ture characteristics.
