Datasheet LTC6655 (Analog Devices) - 2
| Hersteller | Analog Devices |
| Beschreibung | 0.25ppm Noise, Low Drift Precision References |
| Seiten / Seite | 26 / 2 — absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion |
| Dateiformat / Größe | PDF / 1.6 Mb |
| Dokumentensprache | Englisch |

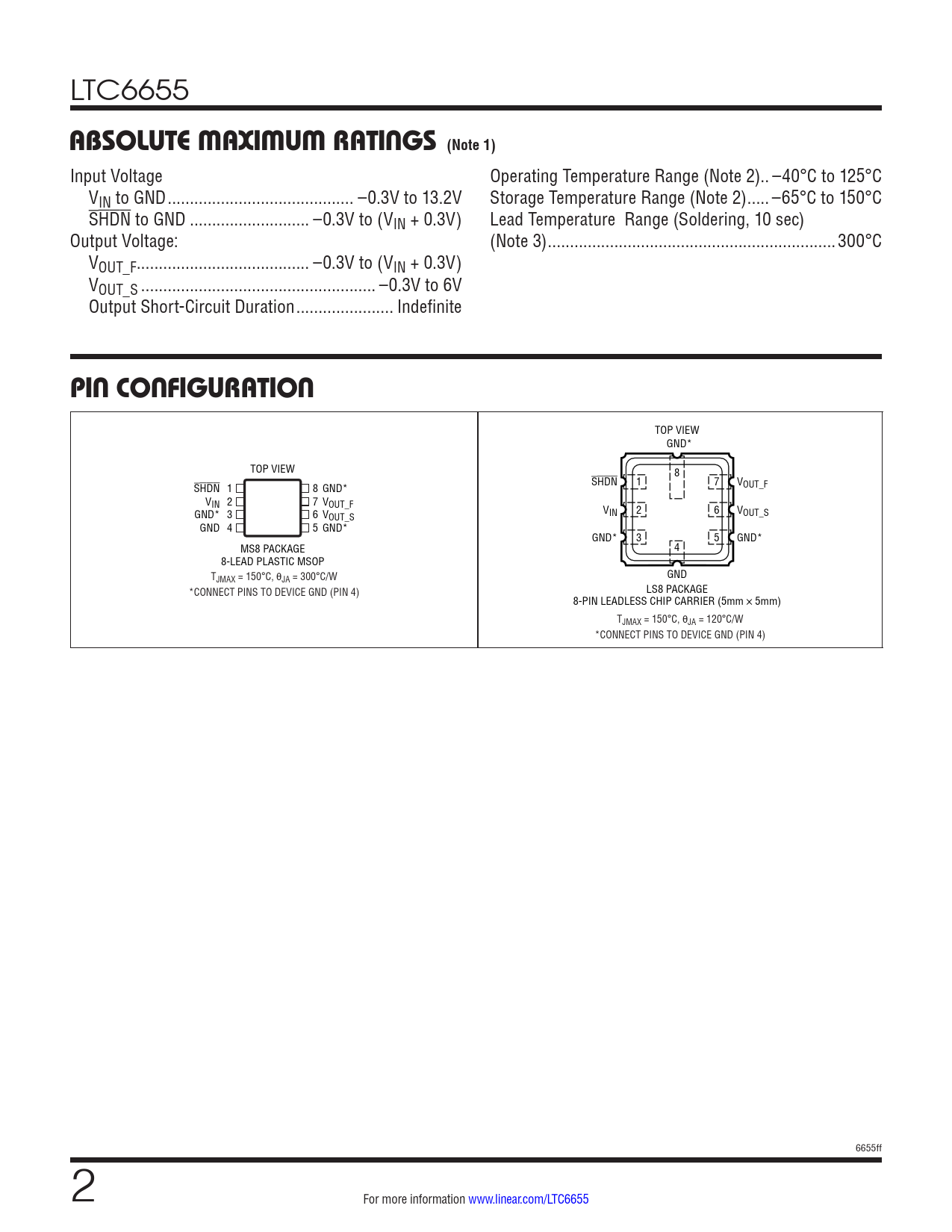

absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion
Modelllinie für dieses Datenblatt
- LTC6655BHLS8-2.5 LTC6655BHLS8-2.5#PBF LTC6655BHLS8-4.096 LTC6655BHLS8-4.096#PBF LTC6655BHLS8-5 LTC6655BHLS8-5#PBF LTC6655BHMS8-1.25 LTC6655BHMS8-1.25#PBF LTC6655BHMS8-1.25#TRPBF LTC6655BHMS8-2.048 LTC6655BHMS8-2.048#PBF LTC6655BHMS8-2.048#TRPBF LTC6655BHMS8-2.5 LTC6655BHMS8-2.5#PBF LTC6655BHMS8-2.5#TRPBF LTC6655BHMS8-3 LTC6655BHMS8-3#PBF LTC6655BHMS8-3#TRPBF LTC6655BHMS8-3.3 LTC6655BHMS8-3.3#PBF LTC6655BHMS8-3.3#TRPBF LTC6655BHMS8-4.096 LTC6655BHMS8-4.096#PBF LTC6655BHMS8-4.096#TRPBF LTC6655BHMS8-5 LTC6655BHMS8-5#PBF LTC6655BHMS8-5#TRPBF LTC6655CHLS8-2.5 LTC6655CHLS8-2.5#PBF LTC6655CHLS8-4.096 LTC6655CHLS8-4.096#PBF LTC6655CHLS8-5 LTC6655CHLS8-5#PBF LTC6655CHMS8-1.25 LTC6655CHMS8-1.25#PBF LTC6655CHMS8-1.25#TRPBF LTC6655CHMS8-2.048 LTC6655CHMS8-2.048#PBF LTC6655CHMS8-2.048#TRPBF LTC6655CHMS8-2.5 LTC6655CHMS8-2.5#PBF LTC6655CHMS8-2.5#TRPBF LTC6655CHMS8-3 LTC6655CHMS8-3#PBF LTC6655CHMS8-3#TRPBF LTC6655CHMS8-3.3 LTC6655CHMS8-3.3#PBF LTC6655CHMS8-3.3#TRPBF LTC6655CHMS8-4.096 LTC6655CHMS8-4.096#PBF LTC6655CHMS8-4.096#TRPBF LTC6655CHMS8-5 LTC6655CHMS8-5#PBF LTC6655CHMS8-5#TRPBF
Textversion des Dokuments
LTC6655
absoluTe MaxiMuM raTings (Note 1)
Input Voltage Operating Temperature Range (Note 2).. –40°C to 125°C VIN to GND .. –0.3V to 13.2V Storage Temperature Range (Note 2) ... –65°C to 150°C SHDN to GND ... –0.3V to (VIN + 0.3V) Lead Temperature Range (Soldering, 10 sec) Output Voltage: (Note 3) ...300°C VOUT_F... –0.3V to (VIN + 0.3V) VOUT_S ... –0.3V to 6V Output Short-Circuit Duration .. Indefinite
pin conFiguraTion
TOP VIEW GND* TOP VIEW 8 SHDN 1 8 GND* SHDN 1 7 VOUT_F VIN 2 7 VOUT_F GND* 3 6 V VIN 2 6 V OUT_S OUT_S GND 4 5 GND* GND* 3 5 GND* MS8 PACKAGE 4 8-LEAD PLASTIC MSOP TJMAX = 150°C, θJA = 300°C/W GND *CONNECT PINS TO DEVICE GND (PIN 4) LS8 PACKAGE 8-PIN LEADLESS CHIP CARRIER (5mm × 5mm) TJMAX = 150°C, θJA = 120°C/W *CONNECT PINS TO DEVICE GND (PIN 4) 6655ff 2 For more information www.linear.com/LTC6655 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Available Options Electrical Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
