Datasheet LT1236LS8 (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | Precision, Low Noise, Low Profile Hermetic Voltage Reference |
| Seiten / Seite | 16 / 6 — pin FuncTions. NC (Pins 1, 3, 7, 8):. TRIM (Pin 5):. IN (Pin 2):. VOUT … |
| Dateiformat / Größe | PDF / 233 Kb |
| Dokumentensprache | Englisch |

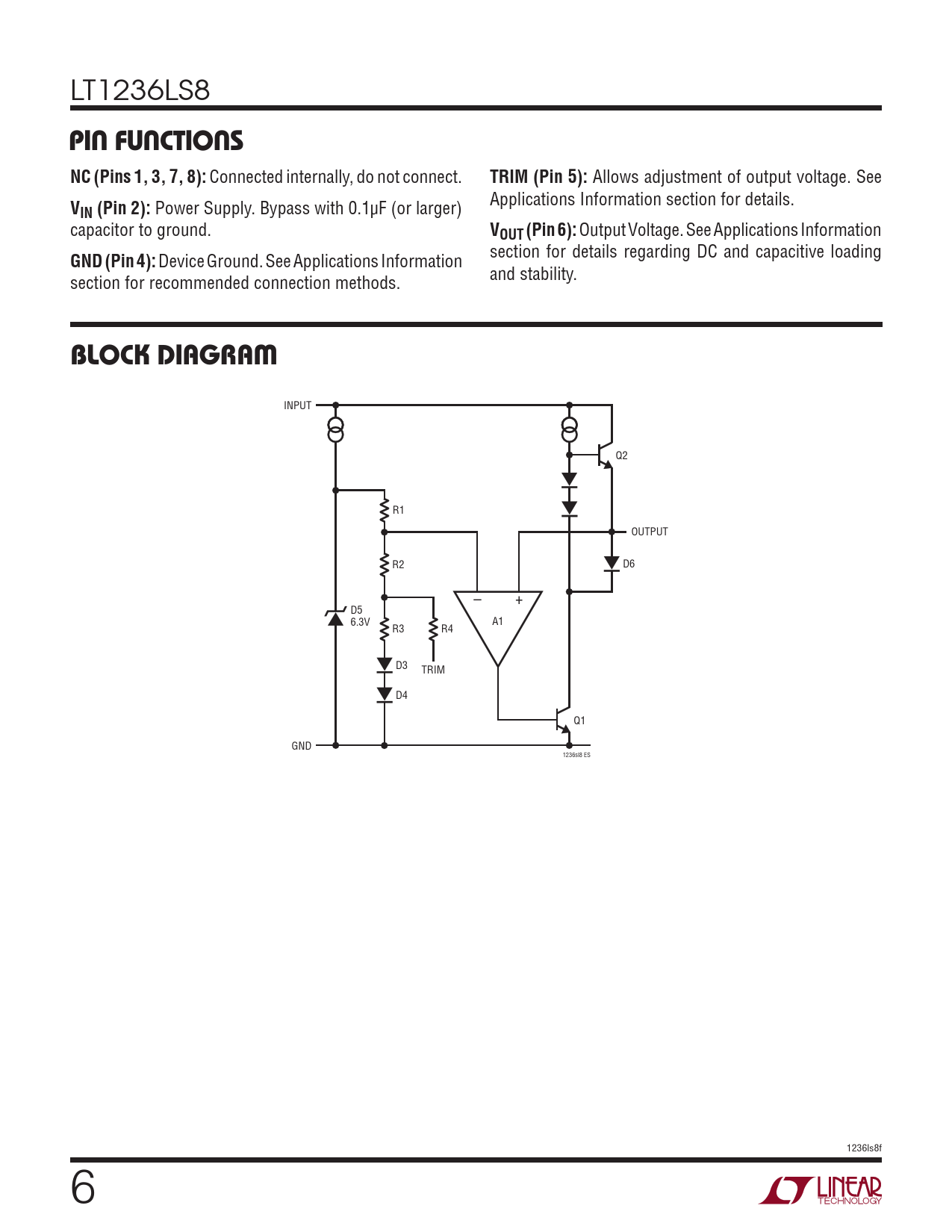

pin FuncTions. NC (Pins 1, 3, 7, 8):. TRIM (Pin 5):. IN (Pin 2):. VOUT (Pin 6):. GND (Pin 4):. block DiagraM
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LT1236LS8
pin FuncTions NC (Pins 1, 3, 7, 8):
Connected internally, do not connect.
TRIM (Pin 5):
Allows adjustment of output voltage. See
V
Applications Information section for details.
IN (Pin 2):
Power Supply. Bypass with 0.1µF (or larger) capacitor to ground.
VOUT (Pin 6):
Output Voltage. See Applications Information
GND (Pin 4):
Device Ground. See Applications Information section for details regarding DC and capacitive loading section for recommended connection methods. and stability.
block DiagraM
INPUT Q2 R1 OUTPUT R2 D6 – + D5 6.3V A1 R3 R4 D3 TRIM D4 Q1 GND 1236sl8 ES 1236ls8f 6 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
