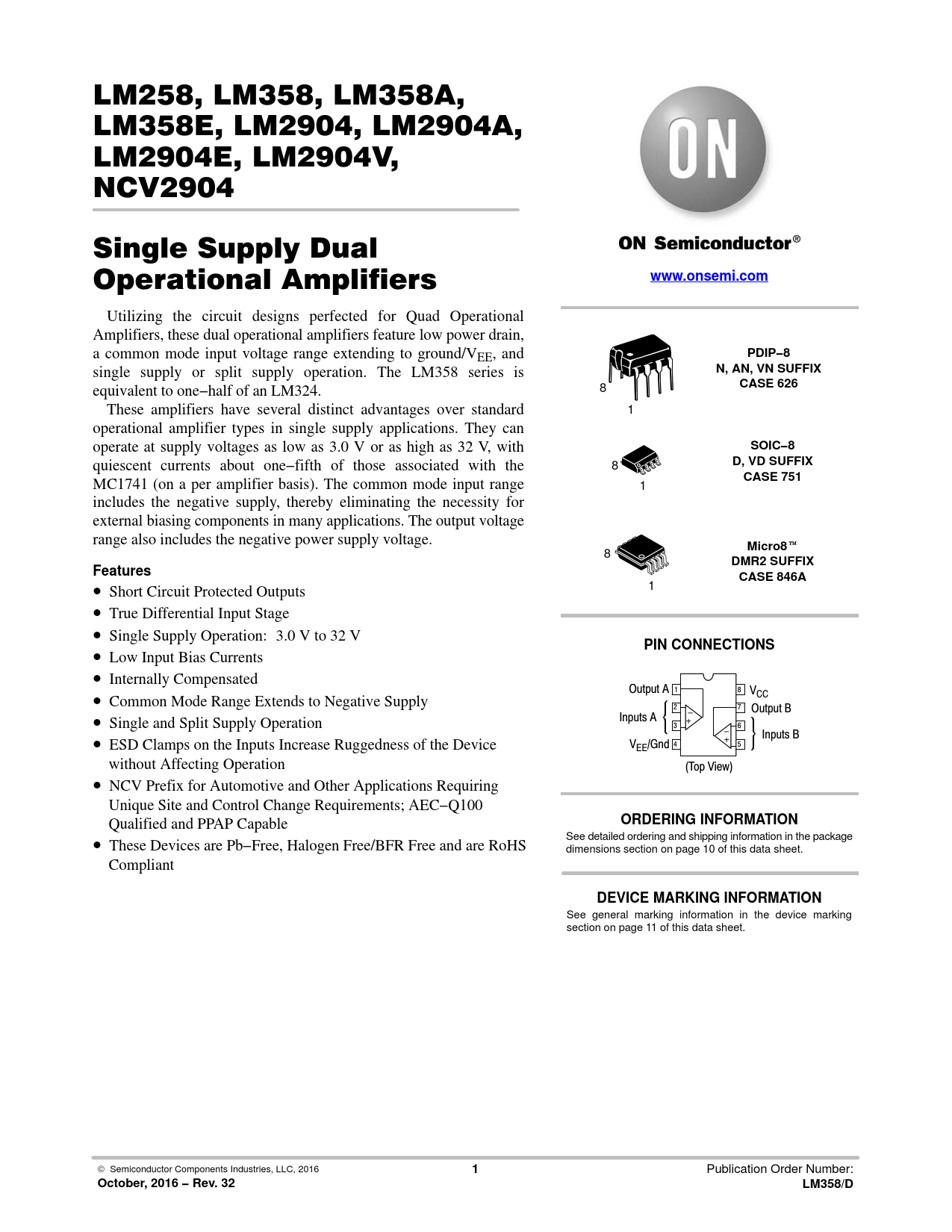

link to page 11 link to page 10 LM258, LM358, LM358A, LM358E, LM2904, LM2904A, LM2904E, LM2904V, NCV2904 Single Supply Dual Operational Amplifiers
www.onsemi.com
Utilizing the circuit designs perfected for Quad Operational Amplifiers, these dual operational amplifiers feature low power drain, a common mode input voltage range extending to ground/VEE, and
PDIP−8
single supply or split supply operation. The LM358 series is
N, AN, VN SUFFIX CASE 626
equivalent to one−half of an LM324. 8 These amplifiers have several distinct advantages over standard 1 operational amplifier types in single supply applications. They can operate at supply voltages as low as 3.0 V or as high as 32 V, with
SOIC−8
quiescent currents about one−fifth of those associated with the
D, VD SUFFIX
8
CASE 751
MC1741 (on a per amplifier basis). The common mode input range 1 includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.
Micro8
] 8
DMR2 SUFFIX Features CASE 846A
• Short Circuit Protected Outputs 1 • True Differential Input Stage • Single Supply Operation: 3.0 V to 32 V •
PIN CONNECTIONS
Low Input Bias Currents • Internally Compensated • Output A 1 8 VCC Common Mode Range Extends to Negative Supply 2 7 Output B • − Single and Split Supply Operation Inputs A + 3 6 − • Inputs B ESD Clamps on the Inputs Increase Ruggedness of the Device V + EE/Gnd 4 5 without Affecting Operation (Top View) • NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
ORDERING INFORMATION
• See detailed ordering and shipping information in the package These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS dimensions section on page 10 of this data sheet. Compliant
DEVICE MARKING INFORMATION
See general marking information in the device marking section on page 11 of this data sheet. © Semiconductor Components Industries, LLC, 2016
1
Publication Order Number:
October, 2016 − Rev. 32 LM358/D
