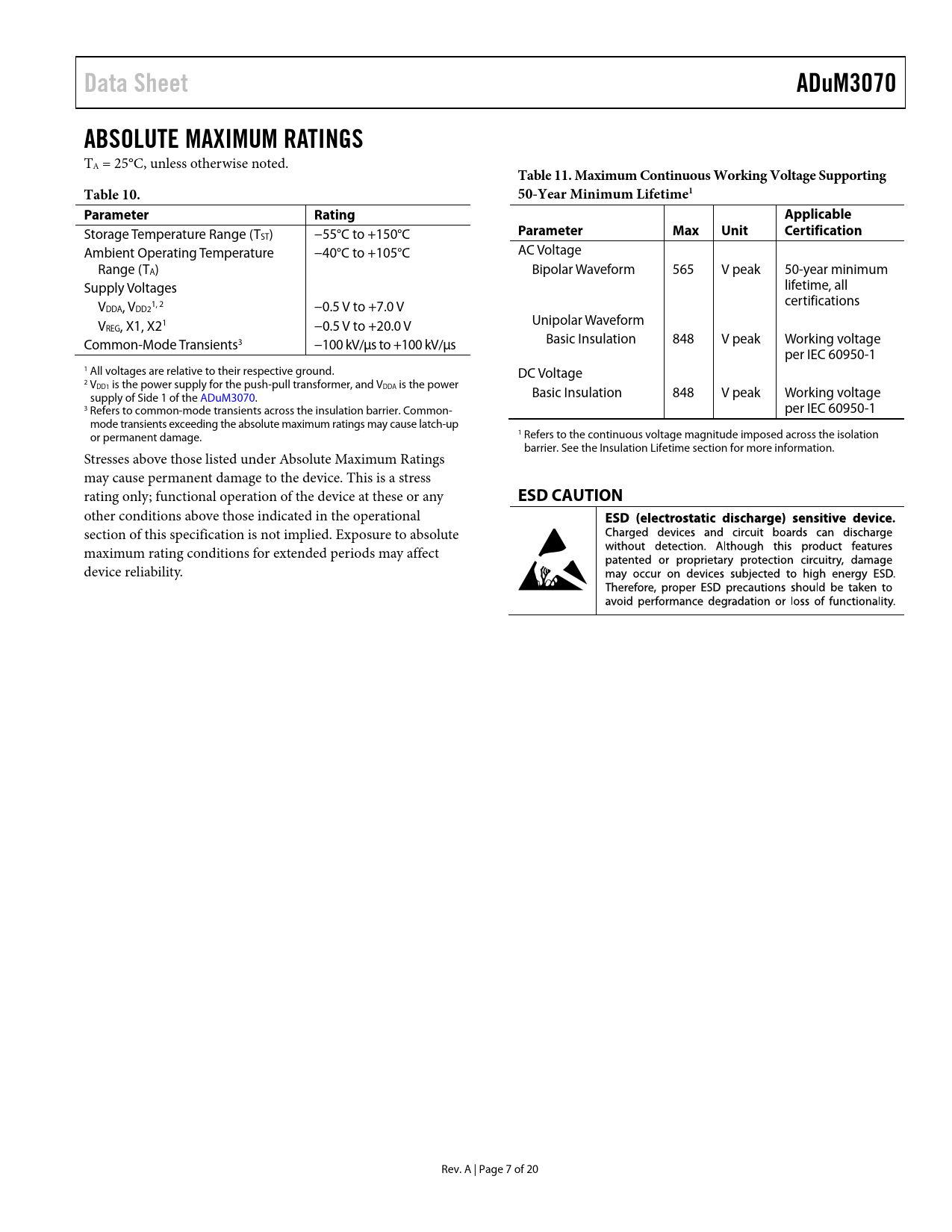

Data Sheet ADuM3070 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 11. Maximum Continuous Working Voltage Supporting Table 10. 50-Year Minimum Lifetime1 Parameter Rating Applicable
Storage Temperature Range (T
Parameter Max Unit Certification
ST) −55°C to +150°C Ambient Operating Temperature −40°C to +105°C AC Voltage Range (TA) Bipolar Waveform 565 V peak 50-year minimum Supply Voltages lifetime, all V 1, 2 certifications DDA, VDD2 −0.5 V to +7.0 V V Unipolar Waveform REG, X1, X21 −0.5 V to +20.0 V Common-Mode Transients3 −100 kV/µs to +100 kV/µs Basic Insulation 848 V peak Working voltage per IEC 60950-1 1 All voltages are relative to their respective ground. DC Voltage 2 VDD1 is the power supply for the push-pull transformer, and VDDA is the power supply of Side 1 of the ADuM3070. Basic Insulation 848 V peak Working voltage 3 Refers to common-mode transients across the insulation barrier. Common- per IEC 60950-1 mode transients exceeding the absolute maximum ratings may cause latch-up or permanent damage. 1 Refers to the continuous voltage magnitude imposed across the isolation barrier. See the Insulation Lifetime section for more information. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any
ESD CAUTION
other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. A | Page 7 of 20 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Electrical Characteristics—5 V Primary Input Supply/5 V Secondary Isolated Supply Electrical Characteristics—3.3 V Primary Input Supply/3.3 V Secondary Isolated Supply Electrical Characteristics—5 V Primary Input Supply/3.3 V Secondary Isolated Supply Electrical Characteristics—5 V Primary Input Supply/15 V Secondary Isolated Supply Package Characteristics Regulatory Approvals (Pending) Insulation and Safety Related Specifications DIN V VDE V 0884-10 (VDE V 0884-10) Insulation Characteristics Recommended Operating Conditions Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Applications Information Application Schematics Transformer Design Transformer Turns Ratio Transformer ET Constant Transformer Primary Inductance and Resistance Transformer Isolation Voltage Switching Frequency Transient Response Component Selection Printed Circuit Board (PCB) Layout Thermal Analysis Power Consumption Power Considerations Soft Start Mode and Current-Limit Protection Insulation Lifetime Outline Dimensions Ordering Guide
