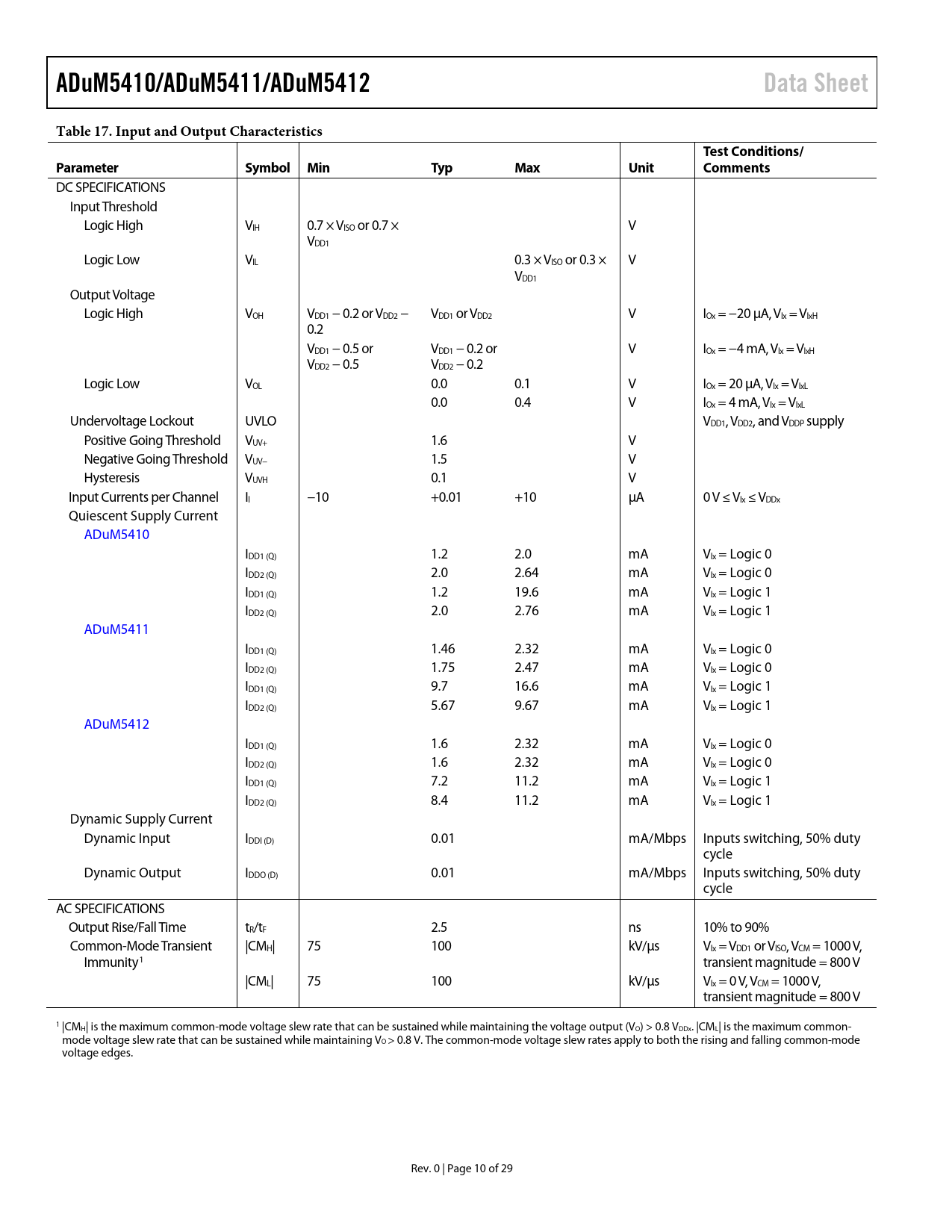

ADuM5410/ADuM5411/ADuM5412 Data Sheet Table 17. Input and Output Characteristics Test Conditions/ Parameter Symbol Min Typ Max Unit Comments
DC SPECIFICATIONS Input Threshold Logic High VIH 0.7 × VISO or 0.7 × V VDD1 Logic Low VIL 0.3 × VISO or 0.3 × V VDD1 Output Voltage Logic High VOH VDD1 − 0.2 or VDD2 − VDD1 or VDD2 V IOx = −20 µA, VIx = VIxH 0.2 VDD1 − 0.5 or VDD1 − 0.2 or V IOx = −4 mA, VIx = VIxH VDD2 − 0.5 VDD2 − 0.2 Logic Low VOL 0.0 0.1 V IOx = 20 µA, VIx = VIxL 0.0 0.4 V IOx = 4 mA, VIx = VIxL Undervoltage Lockout UVLO VDD1, VDD2, and VDDP supply Positive Going Threshold VUV+ 1.6 V Negative Going Threshold VUV− 1.5 V Hysteresis VUVH 0.1 V Input Currents per Channel II −10 +0.01 +10 µA 0 V ≤ VIx ≤ VDDx Quiescent Supply Current ADuM5410 IDD1 (Q) 1.2 2.0 mA VIx = Logic 0 IDD2 (Q) 2.0 2.64 mA VIx = Logic 0 IDD1 (Q) 1.2 19.6 mA VIx = Logic 1 IDD2 (Q) 2.0 2.76 mA VIx = Logic 1 ADuM5411 IDD1 (Q) 1.46 2.32 mA VIx = Logic 0 IDD2 (Q) 1.75 2.47 mA VIx = Logic 0 IDD1 (Q) 9.7 16.6 mA VIx = Logic 1 IDD2 (Q) 5.67 9.67 mA VIx = Logic 1 ADuM5412 IDD1 (Q) 1.6 2.32 mA VIx = Logic 0 IDD2 (Q) 1.6 2.32 mA VIx = Logic 0 IDD1 (Q) 7.2 11.2 mA VIx = Logic 1 IDD2 (Q) 8.4 11.2 mA VIx = Logic 1 Dynamic Supply Current Dynamic Input IDDI (D) 0.01 mA/Mbps Inputs switching, 50% duty cycle Dynamic Output IDDO (D) 0.01 mA/Mbps Inputs switching, 50% duty cycle AC SPECIFICATIONS Output Rise/Fall Time tR/tF 2.5 ns 10% to 90% Common-Mode Transient |CMH| 75 100 kV/µs VIx = VDD1 or VISO, VCM = 1000 V, Immunity1 transient magnitude = 800 V |CML| 75 100 kV/µs VIx = 0 V, VCM = 1000 V, transient magnitude = 800 V 1 |CMH| is the maximum common-mode voltage slew rate that can be sustained while maintaining the voltage output (VO) > 0.8 VDDx. |CML| is the maximum common- mode voltage slew rate that can be sustained while maintaining VO > 0.8 V. The common-mode voltage slew rates apply to both the rising and falling common-mode voltage edges. Rev. 0 | Page 10 of 29 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIGRAM REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/5 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—3.3 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—2.5 V OPERATION DIGITAL ISOLATOR CHANNELS ONLY ELECTRICAL CHARACTERISTICS—1.8 V OPERATION DIGITAL ISOLATOR CHANNELS ONLY PACKAGE CHARACTERISTICS REGULATORY APPROVALS INSULATION AND SAFETY RELATED SPECIFICATIONS DIN V VDE V 0884-10 (VDE V 0884-10) INSULATION CHARACTERISTICS RECOMMENDED OPERATING CONDITIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLES TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION APPLICATIONS INFORMATION PCB LAYOUT THERMAL ANALYSIS PROPAGATION DELAY RELATED PARAMETERS EMI CONSIDERATIONS POWER CONSUMPTION INSULATION LIFETIME Surface Tracking Insulation Wear Out Calculation and Use of Parameters Example OUTLINE DIMENSIONS ORDERING GUIDE
