AT90S4414/8515

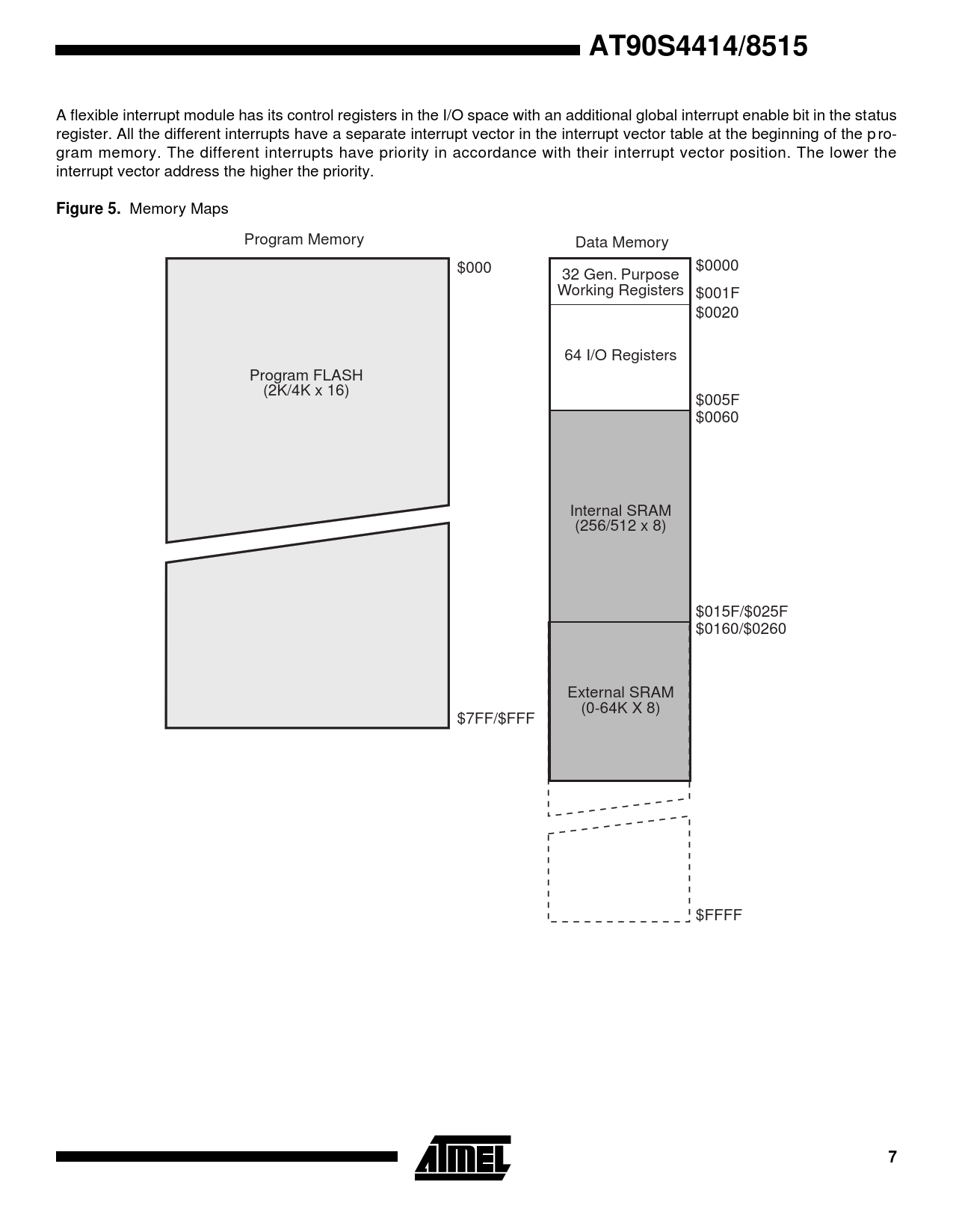

A flexible interrupt module has its control registers in the I/O space with an additional global interrupt enable bit in the status register. All the different interrupts have a separate interrupt vector in the interrupt vector table at the beginning of the p ro- gram memory. The different interrupts have priority in accordance with their interrupt vector position. The lower the interrupt vector address the higher the priority.
Figure 5.
Memory Maps Program Memory Data Memory $000 $0000 32 Gen. Purpose Working Registers $001F $0020 64 I/O Registers Program FLASH (2K/4K x 16) $005F $0060 Internal SRAM (256/512 x 8) $015F/$025F $0160/$0260 External SRAM (0-64K X 8) $7FF/$FFF $FFFF
