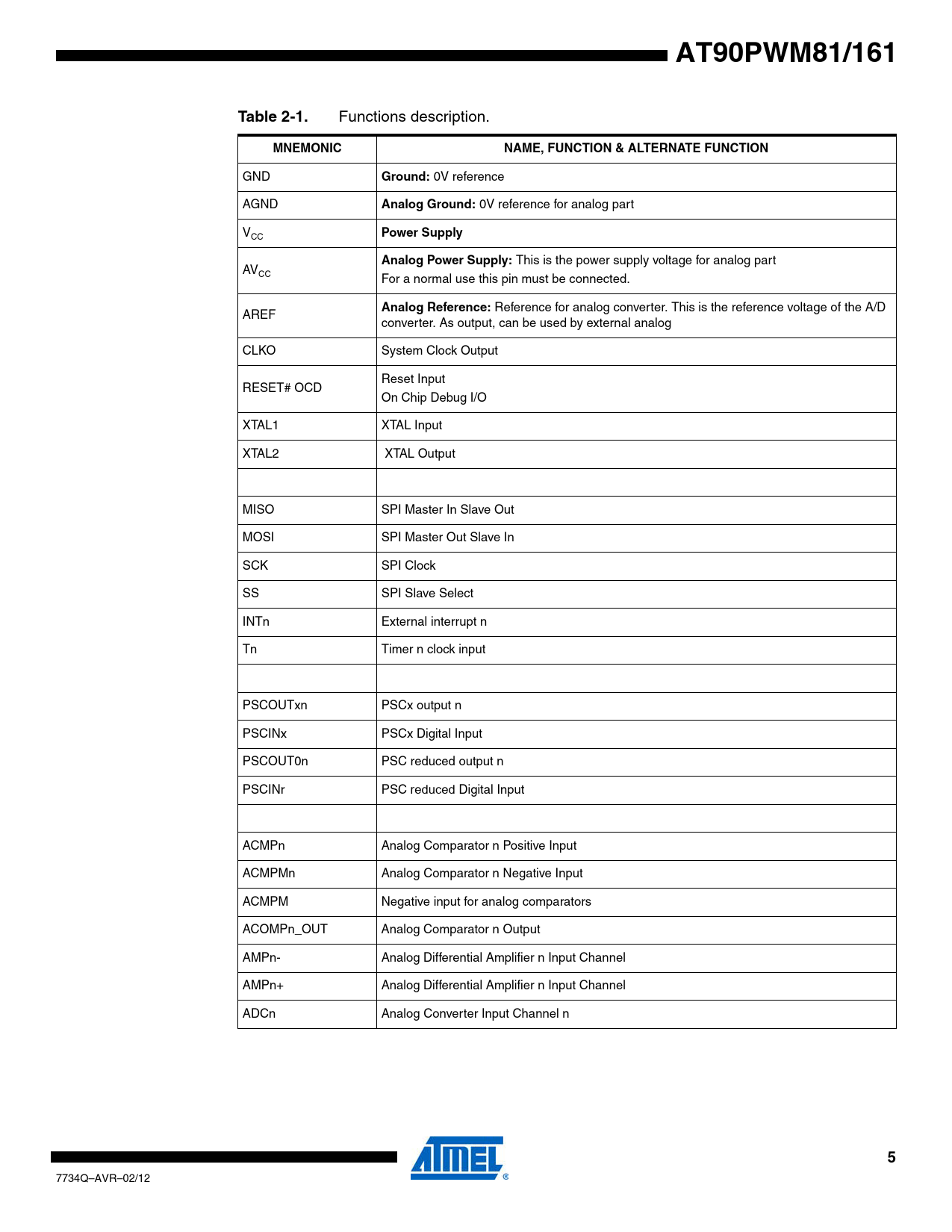

AT90PWM81/161 Table 2-1.
Functions description.
MNEMONIC NAME, FUNCTION & ALTERNATE FUNCTION
GND
Ground:
0V reference AGND
Analog Ground:
0V reference for analog part V
Power Supply
CC
Analog Power Supply:
This is the power supply voltage for analog part AVCC For a normal use this pin must be connected.
Analog Reference:
Reference for analog converter. This is the reference voltage of the A/D AREF converter. As output, can be used by external analog CLKO System Clock Output Reset Input RESET# OCD On Chip Debug I/O XTAL1 XTAL Input XTAL2 XTAL Output MISO SPI Master In Slave Out MOSI SPI Master Out Slave In SCK SPI Clock SS SPI Slave Select INTn External interrupt n Tn Timer n clock input PSCOUTxn PSCx output n PSCINx PSCx Digital Input PSCOUT0n PSC reduced output n PSCINr PSC reduced Digital Input ACMPn Analog Comparator n Positive Input ACMPMn Analog Comparator n Negative Input ACMPM Negative input for analog comparators ACOMPn_OUT Analog Comparator n Output AMPn- Analog Differential Amplifier n Input Channel AMPn+ Analog Differential Amplifier n Input Channel ADCn Analog Converter Input Channel n
