Datasheet AT90PWM81, AT90PWM161 - Complete (Atmel) - 3

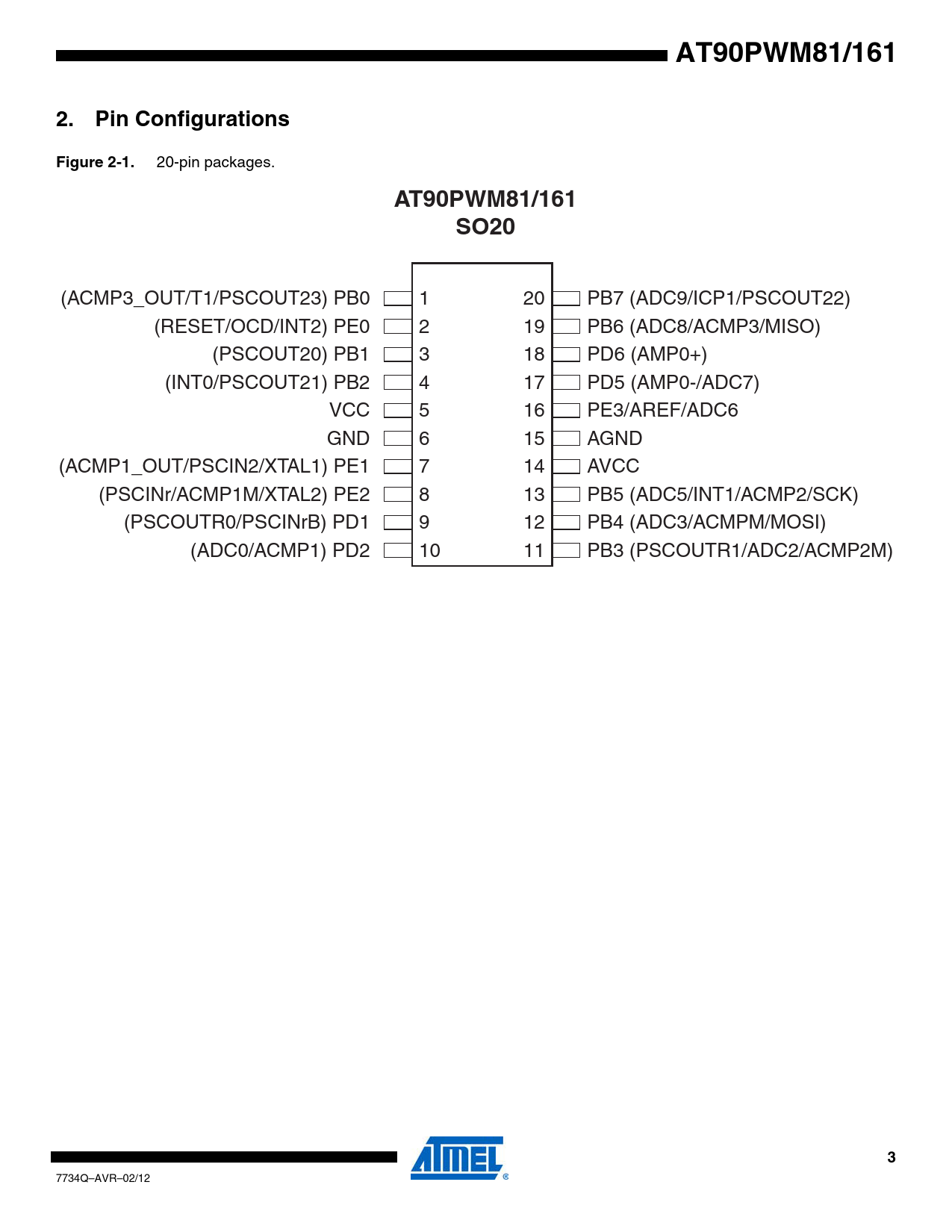

AT90PWM81/161 2. Pin Configurations Figure 2-1.
20-pin packages.
AT90PWM81/161 SO20
(ACMP3_OUT/T1/PSCOUT23) PB0 1 20 PB7 (ADC9/ICP1/PSCOUT22) (RESET/OCD/INT2) PE0 2 19 PB6 (ADC8/ACMP3/MISO) (PSCOUT20) PB1 3 18 PD6 (AMP0+) (INT0/PSCOUT21) PB2 4 17 PD5 (AMP0-/ADC7) VCC 5 16 PE3/AREF/ADC6 GND 6 15 AGND (ACMP1_OUT/PSCIN2/XTAL1) PE1 7 14 AVCC (PSCINr/ACMP1M/XTAL2) PE2 8 13 PB5 (ADC5/INT1/ACMP2/SCK) (PSCOUTR0/PSCINrB) PD1 9 12 PB4 (ADC3/ACMPM/MOSI) (ADC0/ACMP1) PD2 10 11 PB3 (PSCOUTR1/ADC2/ACMP2M)
3
