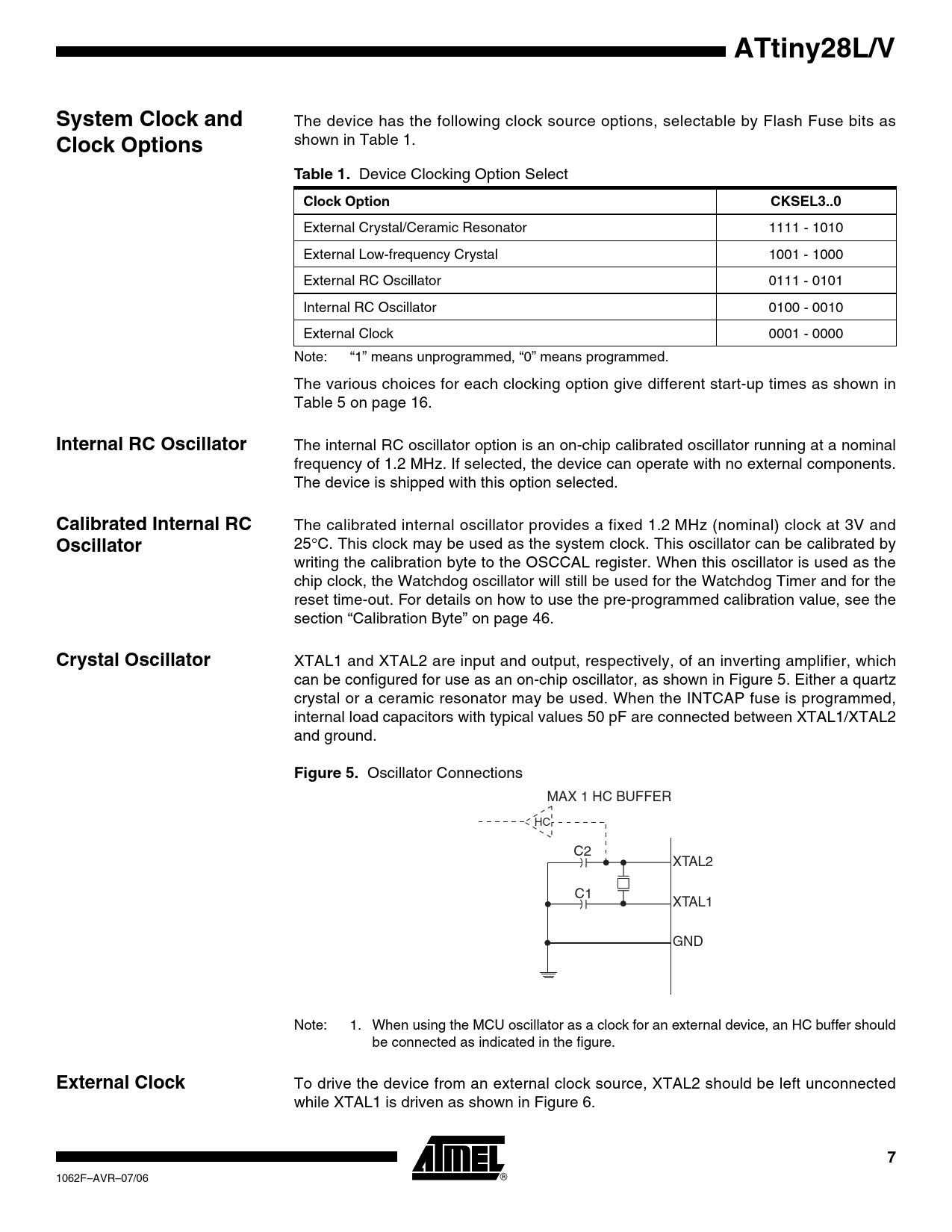

ATtiny28L/V System Clock and
The device has the following clock source options, selectable by Flash Fuse bits as
Clock Options
shown in Table 1.
Table 1.
Device Clocking Option Select
Clock Option CKSEL3..0
External Crystal/Ceramic Resonator 1111 - 1010 External Low-frequency Crystal 1001 - 1000 External RC Oscillator 0111 - 0101 Internal RC Oscillator 0100 - 0010 External Clock 0001 - 0000 Note: “1” means unprogrammed, “0” means programmed. The various choices for each clocking option give different start-up times as shown in Table 5 on page 16.
Internal RC Oscillator
The internal RC oscillator option is an on-chip calibrated oscillator running at a nominal frequency of 1.2 MHz. If selected, the device can operate with no external components. The device is shipped with this option selected.
Calibrated Internal RC
The calibrated internal oscillator provides a fixed 1.2 MHz (nominal) clock at 3V and
Oscillator
25°C. This clock may be used as the system clock. This oscillator can be calibrated by writing the calibration byte to the OSCCAL register. When this oscillator is used as the chip clock, the Watchdog oscillator will still be used for the Watchdog Timer and for the reset time-out. For details on how to use the pre-programmed calibration value, see the section “Calibration Byte” on page 46.
Crystal Oscillator
XTAL1 and XTAL2 are input and output, respectively, of an inverting amplifier, which can be configured for use as an on-chip oscillator, as shown in Figure 5. Either a quartz crystal or a ceramic resonator may be used. When the INTCAP fuse is programmed, internal load capacitors with typical values 50 pF are connected between XTAL1/XTAL2 and ground.
Figure 5.
Oscillator Connections MAX 1 HC BUFFER HC C2 XTAL2 C1 XTAL1 GND Note: 1. When using the MCU oscillator as a clock for an external device, an HC buffer should be connected as indicated in the figure.
External Clock
To drive the device from an external clock source, XTAL2 should be left unconnected while XTAL1 is driven as shown in Figure 6.
