LT1737

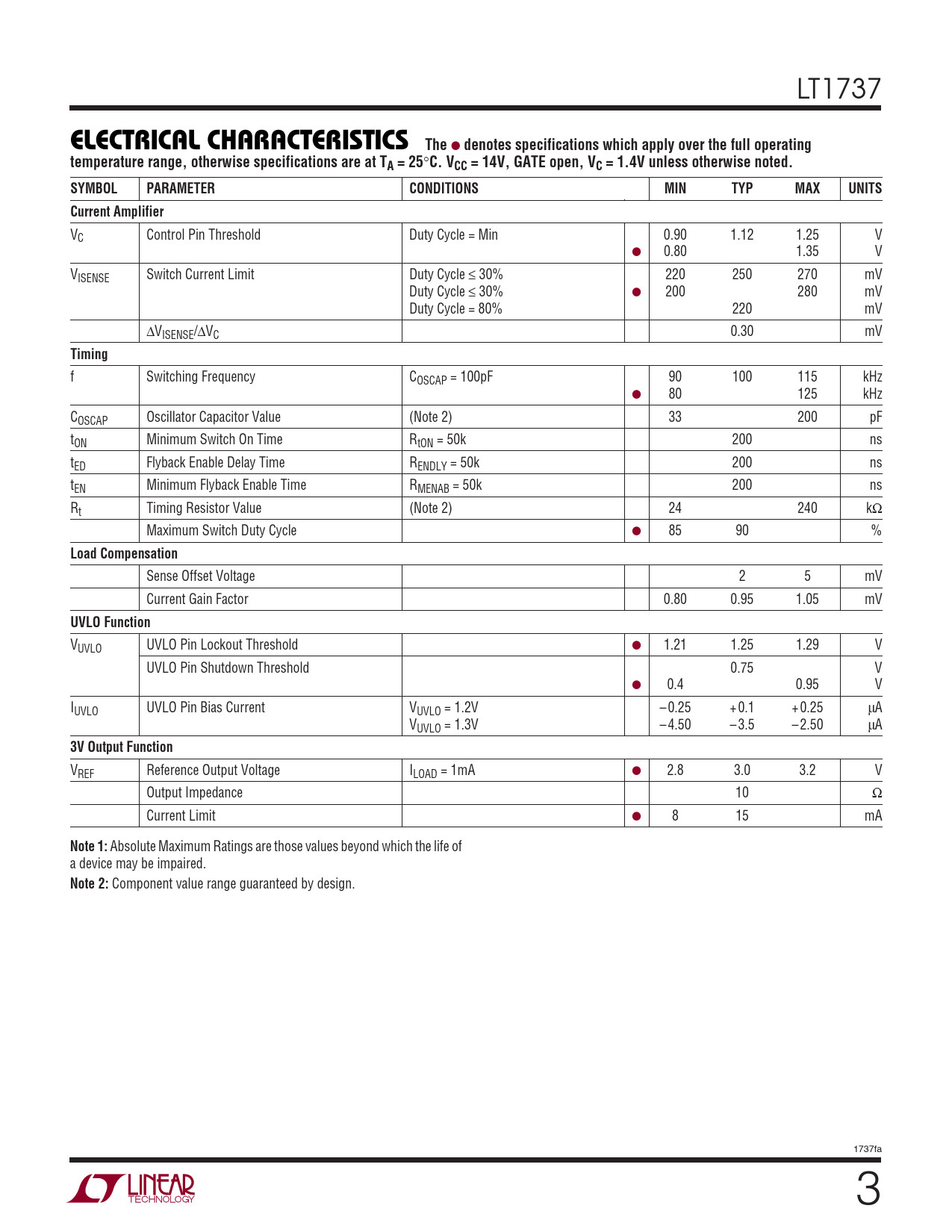

ELECTRICAL CHARACTERISTICS The
●
denotes specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VCC = 14V, GATE open, VC = 1.4V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Current Amplifier
VC Control Pin Threshold Duty Cycle = Min 0.90 1.12 1.25 V ● 0.80 1.35 V VISENSE Switch Current Limit Duty Cycle ≤ 30% 220 250 270 mV Duty Cycle ≤ 30% ● 200 280 mV Duty Cycle = 80% 220 mV ∆VISENSE/∆VC 0.30 mV
Timing
f Switching Frequency COSCAP = 100pF 90 100 115 kHz ● 80 125 kHz COSCAP Oscillator Capacitor Value (Note 2) 33 200 pF tON Minimum Switch On Time RtON = 50k 200 ns tED Flyback Enable Delay Time RENDLY = 50k 200 ns tEN Minimum Flyback Enable Time RMENAB = 50k 200 ns Rt Timing Resistor Value (Note 2) 24 240 kΩ Maximum Switch Duty Cycle ● 85 90 %
Load Compensation
Sense Offset Voltage 2 5 mV Current Gain Factor 0.80 0.95 1.05 mV
UVLO Function
VUVLO UVLO Pin Lockout Threshold ● 1.21 1.25 1.29 V UVLO Pin Shutdown Threshold 0.75 V ● 0.4 0.95 V IUVLO UVLO Pin Bias Current VUVLO = 1.2V – 0.25 + 0.1 + 0.25 µA VUVLO = 1.3V – 4.50 – 3.5 – 2.50 µA
3V Output Function
VREF Reference Output Voltage ILOAD = 1mA ● 2.8 3.0 3.2 V Output Impedance 10 Ω Current Limit ● 8 15 mA
Note 1:
Absolute Maximum Ratings are those values beyond which the life of a device may be impaired.
Note 2:
Component value range guaranteed by design. 1737fa 3
