| Beschreibung | Monolithic High Voltage Isolated Flyback Converter |
| Seiten / Seite | 26 / 10 — applicaTions inForMaTion. Table 1. Predesigned Transformers. TRANSFORMER. … |
| Dateiformat / Größe | PDF / 315 Kb |
| Dokumentensprache | Englisch |

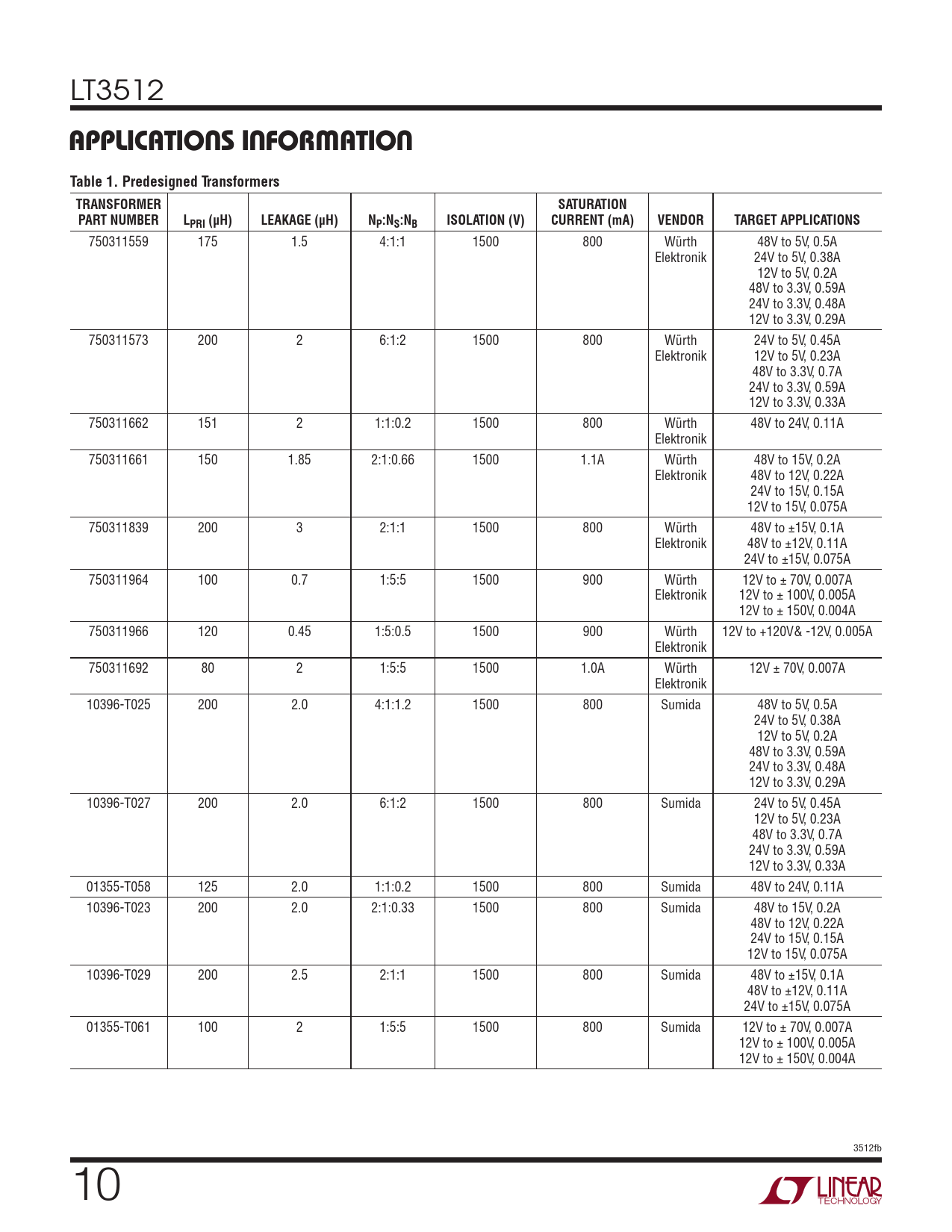

applicaTions inForMaTion. Table 1. Predesigned Transformers. TRANSFORMER. SATURATION. PART NUMBER. LPRI (µH). LEAKAGE (µH). NP:NS:NB
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LT3512
applicaTions inForMaTion Table 1. Predesigned Transformers TRANSFORMER SATURATION PART NUMBER LPRI (µH) LEAKAGE (µH) NP:NS:NB ISOLATION (V) CURRENT (mA) VENDOR TARGET APPLICATIONS
750311559 175 1.5 4:1:1 1500 800 Würth 48V to 5V, 0.5A Elektronik 24V to 5V, 0.38A 12V to 5V, 0.2A 48V to 3.3V, 0.59A 24V to 3.3V, 0.48A 12V to 3.3V, 0.29A 750311573 200 2 6:1:2 1500 800 Würth 24V to 5V, 0.45A Elektronik 12V to 5V, 0.23A 48V to 3.3V, 0.7A 24V to 3.3V, 0.59A 12V to 3.3V, 0.33A 750311662 151 2 1:1:0.2 1500 800 Würth 48V to 24V, 0.11A Elektronik 750311661 150 1.85 2:1:0.66 1500 1.1A Würth 48V to 15V, 0.2A Elektronik 48V to 12V, 0.22A 24V to 15V, 0.15A 12V to 15V, 0.075A 750311839 200 3 2:1:1 1500 800 Würth 48V to ±15V, 0.1A Elektronik 48V to ±12V, 0.11A 24V to ±15V, 0.075A 750311964 100 0.7 1:5:5 1500 900 Würth 12V to ± 70V, 0.007A Elektronik 12V to ± 100V, 0.005A 12V to ± 150V, 0.004A 750311966 120 0.45 1:5:0.5 1500 900 Würth 12V to +120V& -12V, 0.005A Elektronik 750311692 80 2 1:5:5 1500 1.0A Würth 12V ± 70V, 0.007A Elektronik 10396-T025 200 2.0 4:1:1.2 1500 800 Sumida 48V to 5V, 0.5A 24V to 5V, 0.38A 12V to 5V, 0.2A 48V to 3.3V, 0.59A 24V to 3.3V, 0.48A 12V to 3.3V, 0.29A 10396-T027 200 2.0 6:1:2 1500 800 Sumida 24V to 5V, 0.45A 12V to 5V, 0.23A 48V to 3.3V, 0.7A 24V to 3.3V, 0.59A 12V to 3.3V, 0.33A 01355-T058 125 2.0 1:1:0.2 1500 800 Sumida 48V to 24V, 0.11A 10396-T023 200 2.0 2:1:0.33 1500 800 Sumida 48V to 15V, 0.2A 48V to 12V, 0.22A 24V to 15V, 0.15A 12V to 15V, 0.075A 10396-T029 200 2.5 2:1:1 1500 800 Sumida 48V to ±15V, 0.1A 48V to ±12V, 0.11A 24V to ±15V, 0.075A 01355-T061 100 2 1:5:5 1500 800 Sumida 12V to ± 70V, 0.007A 12V to ± 100V, 0.005A 12V to ± 150V, 0.004A 3512fb 10 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
applicaTions inForMaTion Table 1. Predesigned Transformers TRANSFORMER SATURATION PART NUMBER LPRI (µH) LEAKAGE (µH) NP:NS:NB ISOLATION (V) CURRENT (mA) VENDOR TARGET APPLICATIONS
750311559 175 1.5 4:1:1 1500 800 Würth 48V to 5V, 0.5A Elektronik 24V to 5V, 0.38A 12V to 5V, 0.2A 48V to 3.3V, 0.59A 24V to 3.3V, 0.48A 12V to 3.3V, 0.29A 750311573 200 2 6:1:2 1500 800 Würth 24V to 5V, 0.45A Elektronik 12V to 5V, 0.23A 48V to 3.3V, 0.7A 24V to 3.3V, 0.59A 12V to 3.3V, 0.33A 750311662 151 2 1:1:0.2 1500 800 Würth 48V to 24V, 0.11A Elektronik 750311661 150 1.85 2:1:0.66 1500 1.1A Würth 48V to 15V, 0.2A Elektronik 48V to 12V, 0.22A 24V to 15V, 0.15A 12V to 15V, 0.075A 750311839 200 3 2:1:1 1500 800 Würth 48V to ±15V, 0.1A Elektronik 48V to ±12V, 0.11A 24V to ±15V, 0.075A 750311964 100 0.7 1:5:5 1500 900 Würth 12V to ± 70V, 0.007A Elektronik 12V to ± 100V, 0.005A 12V to ± 150V, 0.004A 750311966 120 0.45 1:5:0.5 1500 900 Würth 12V to +120V& -12V, 0.005A Elektronik 750311692 80 2 1:5:5 1500 1.0A Würth 12V ± 70V, 0.007A Elektronik 10396-T025 200 2.0 4:1:1.2 1500 800 Sumida 48V to 5V, 0.5A 24V to 5V, 0.38A 12V to 5V, 0.2A 48V to 3.3V, 0.59A 24V to 3.3V, 0.48A 12V to 3.3V, 0.29A 10396-T027 200 2.0 6:1:2 1500 800 Sumida 24V to 5V, 0.45A 12V to 5V, 0.23A 48V to 3.3V, 0.7A 24V to 3.3V, 0.59A 12V to 3.3V, 0.33A 01355-T058 125 2.0 1:1:0.2 1500 800 Sumida 48V to 24V, 0.11A 10396-T023 200 2.0 2:1:0.33 1500 800 Sumida 48V to 15V, 0.2A 48V to 12V, 0.22A 24V to 15V, 0.15A 12V to 15V, 0.075A 10396-T029 200 2.5 2:1:1 1500 800 Sumida 48V to ±15V, 0.1A 48V to ±12V, 0.11A 24V to ±15V, 0.075A 01355-T061 100 2 1:5:5 1500 800 Sumida 12V to ± 70V, 0.007A 12V to ± 100V, 0.005A 12V to ± 150V, 0.004A 3512fb 10 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
