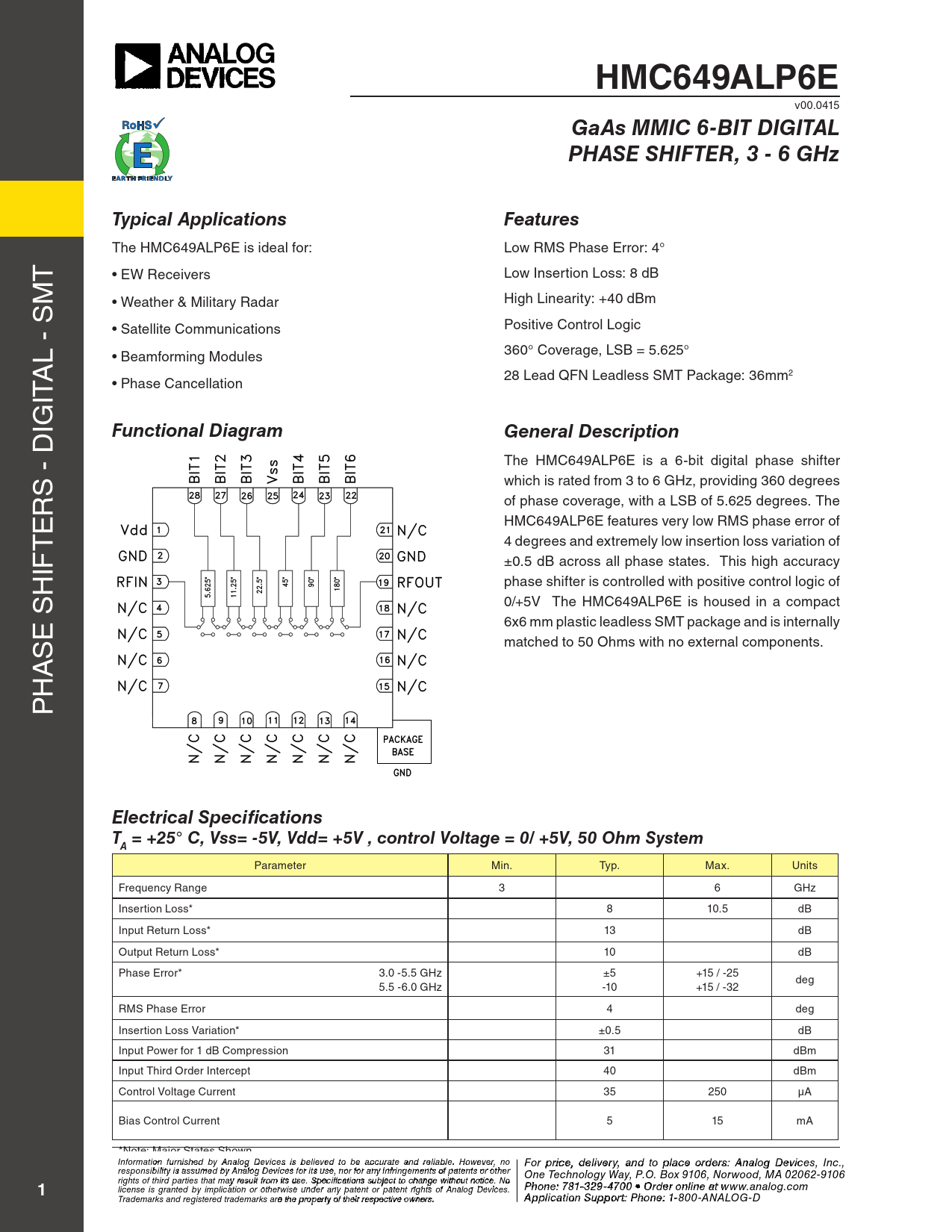

HMC649ALP6E. GaAs MMIC 6-BIT DIGITAL. PHASE SHIFTER, 3 - 6 GHz. Typical Applications. Features. Functional Diagram
Modelllinie für dieses Datenblatt
Textversion des Dokuments
HMC649ALP6E
v00.0415
GaAs MMIC 6-BIT DIGITAL PHASE SHIFTER, 3 - 6 GHz Typical Applications Features
The HMC649ALP6E is ideal for: Low RMS Phase Error: 4° T • EW Receivers Low Insertion Loss: 8 dB M • Weather & Military Radar High Linearity: +40 dBm Positive Control Logic • Satel ite Communications L - S 360° Coverage, LSB = 5.625° • Beamforming Modules 28 Lead QFN Leadless SMT Package: 36mm2 ITA • Phase Cancel ation IG
Functional Diagram General Description
The HMC649ALP6E is a 6-bit digital phase shifter S - D which is rated from 3 to 6 GHz, providing 360 degrees R of phase coverage, with a LSB of 5.625 degrees. The E HMC649ALP6E features very low RMS phase error of T 4 degrees and extremely low insertion loss variation of IF ±0.5 dB across all phase states. This high accuracy H phase shifter is control ed with positive control logic of 0/+5V The HMC649ALP6E is housed in a compact E S 6x6 mm plastic leadless SMT package and is internal y S matched to 50 Ohms with no external components. A H P
Electrical Specifications T = +25° C, Vss= -5V, Vdd= +5V , control Voltage = 0/ +5V, 50 Ohm System A
Parameter Min. Typ. Max. Units Frequency Range 3 6 GHz Insertion Loss* 8 10.5 dB Input Return Loss* 13 dB Output Return Loss* 10 dB Phase Error* 3.0 -5.5 GHz ±5 +15 / -25 deg 5.5 -6.0 GHz -10 +15 / -32 RMS Phase Error 4 deg Insertion Loss Variation* ±0.5 dB Input Power for 1 dB Compression 31 dBm Input Third Order Intercept 40 dBm Control Voltage Current 35 250 µA Bias Control Current 5 15 mA *Note: Major States Shown Informat F io o n r p furn risihcee d , d by e An lialvoe g rDy a evic n e d t s is o p belie lva e c d t e o o b rd e a e cc rursa: A te a n n a d lo reli g D able. e H v o ic weveers, I no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other nc., 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 • Fax: 978-250-3373 • O rights of third parties that may result from its use. Specifications subject to change without notice. No rd Ph e o r O ne n : 7 -l 81 i-n 3 e a 29-4t w 70 ww 0 • O .h rd iettit r o e nli.c n om
