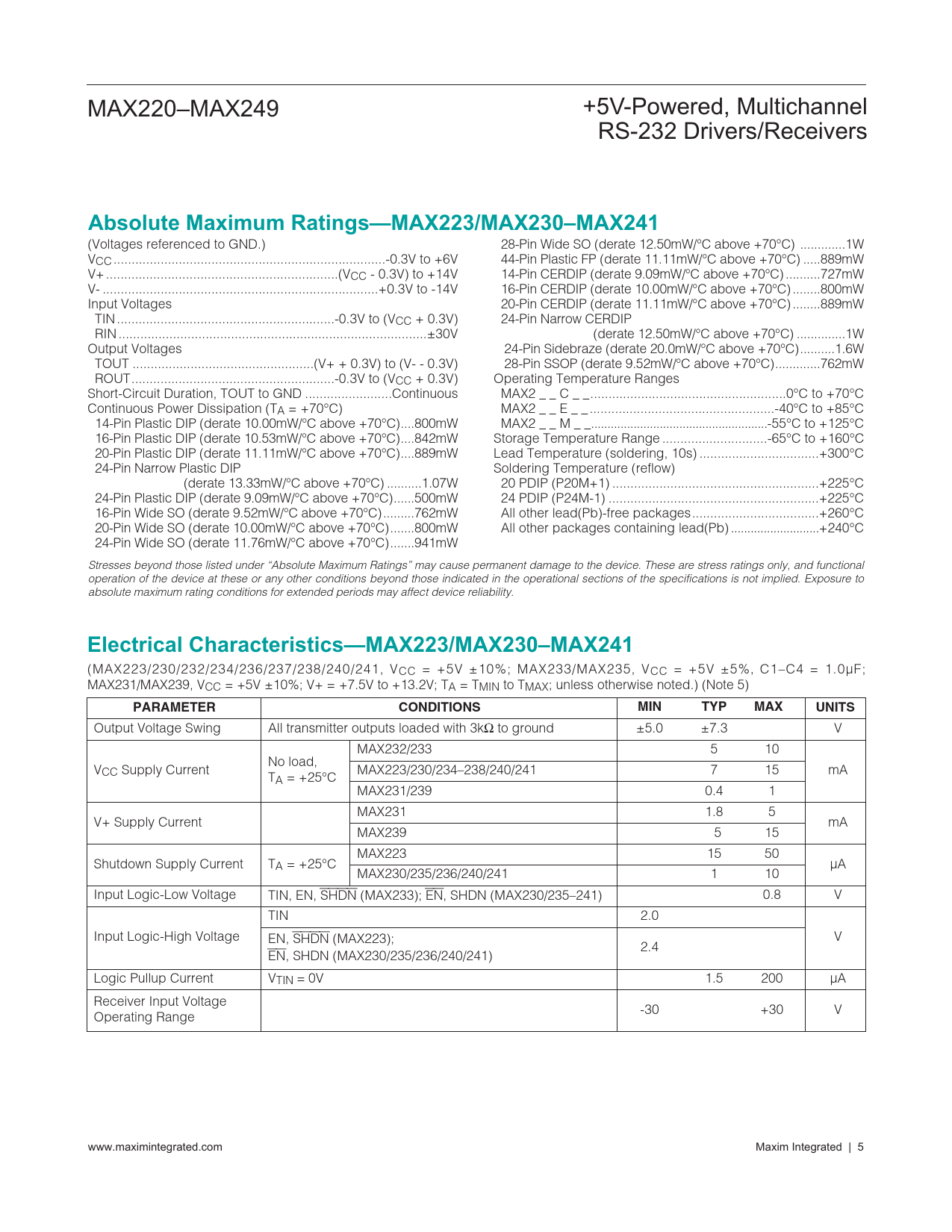

Datasheet MAX220-MAX249 (Maxim) - 5

MAX220–MAX249 +5V-Powered, Multichannel RS-232 Drivers/Receivers
Absolute Maximum Ratings—MAX223/MAX230–MAX241
(Voltages referenced to GND.) 28-Pin Wide SO (derate 12.50mW/°C above +70°C) ...1W VCC ...-0.3V to +6V 44-Pin Plastic FP (derate 11.11mW/°C above +70°C) ...889mW V+ ..(VCC - 0.3V) to +14V 14-Pin CERDIP (derate 9.09mW/°C above +70°C) ..727mW V- ..+0.3V to -14V 16-Pin CERDIP (derate 10.00mW/°C above +70°C) ..800mW Input Voltages 20-Pin CERDIP (derate 11.11mW/°C above +70°C) ..889mW TIN ..-0.3V to (VCC + 0.3V) 24-Pin Narrow CERDIP RIN ...±30V (derate 12.50mW/°C above +70°C) ..1W Output Voltages 24-Pin Sidebraze (derate 20.0mW/°C above +70°C)..1.6W TOUT ..(V+ + 0.3V) to (V- - 0.3V) 28-Pin SSOP (derate 9.52mW/°C above +70°C)...762mW ROUT..-0.3V to (VCC + 0.3V) Operating Temperature Ranges Short-Circuit Duration, TOUT to GND ..Continuous MAX2 _ _ C _ _..0°C to +70°C Continuous Power Dissipation (TA = +70°C) MAX2 _ _ E _ _ ...-40°C to +85°C 14-Pin Plastic DIP (derate 10.00mW/°C above +70°C)..800mW MAX2 _ _ M _ _..-55°C to +125°C 16-Pin Plastic DIP (derate 10.53mW/°C above +70°C)..842mW Storage Temperature Range ...-65°C to +160°C 20-Pin Plastic DIP (derate 11.11mW/°C above +70°C)..889mW Lead Temperature (soldering, 10s) ...+300°C 24-Pin Narrow Plastic DIP Soldering Temperature (reflow) (derate 13.33mW/°C above +70°C) ..1.07W 20 PDIP (P20M+1) ...+225°C 24-Pin Plastic DIP (derate 9.09mW/°C above +70°C)..500mW 24 PDIP (P24M-1) ..+225°C 16-Pin Wide SO (derate 9.52mW/°C above +70°C)...762mW All other lead(Pb)-free packages...+260°C 20-Pin Wide SO (derate 10.00mW/°C above +70°C)...800mW All other packages containing lead(Pb) ...+240°C 24-Pin Wide SO (derate 11.76mW/°C above +70°C)...941mW Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Electrical Characteristics—MAX223/MAX230–MAX241
(MAX223/230/232/234/236/237/238/240/241, VCC = +5V ±10%; MAX233/MAX235, VCC = +5V ±5%‚ C1–C4 = 1.0µF; MAX231/MAX239, VCC = +5V ±10%; V+ = +7.5V to +13.2V; TA = TMIN to TMAX; unless otherwise noted.) (Note 5)
PARAMETER CONDITIONS MIN TYP MAX UNITS
Output Voltage Swing All transmitter outputs loaded with 3kΩ to ground ±5.0 ±7.3 V MAX232/233 5 10 No load, VCC Supply Current MAX223/230/234–238/240/241 7 15 mA TA = +25°C MAX231/239 0.4 1 MAX231 1.8 5 V+ Supply Current mA MAX239 5 15 MAX223 15 50 Shutdown Supply Current TA = +25°C µA MAX230/235/236/240/241 1 10 Input Logic-Low Voltage TIN, EN, SHDN (MAX233); EN, SHDN (MAX230/235–241) 0.8 V TIN 2.0 Input Logic-High Voltage V EN, SHDN (MAX223); 2.4 EN, SHDN (MAX230/235/236/240/241) Logic Pullup Current VTIN = 0V 1.5 200 µA Receiver Input Voltage -30 +30 V Operating Range www.maximintegrated.com Maxim Integrated | 5
