Electrical
characteristics

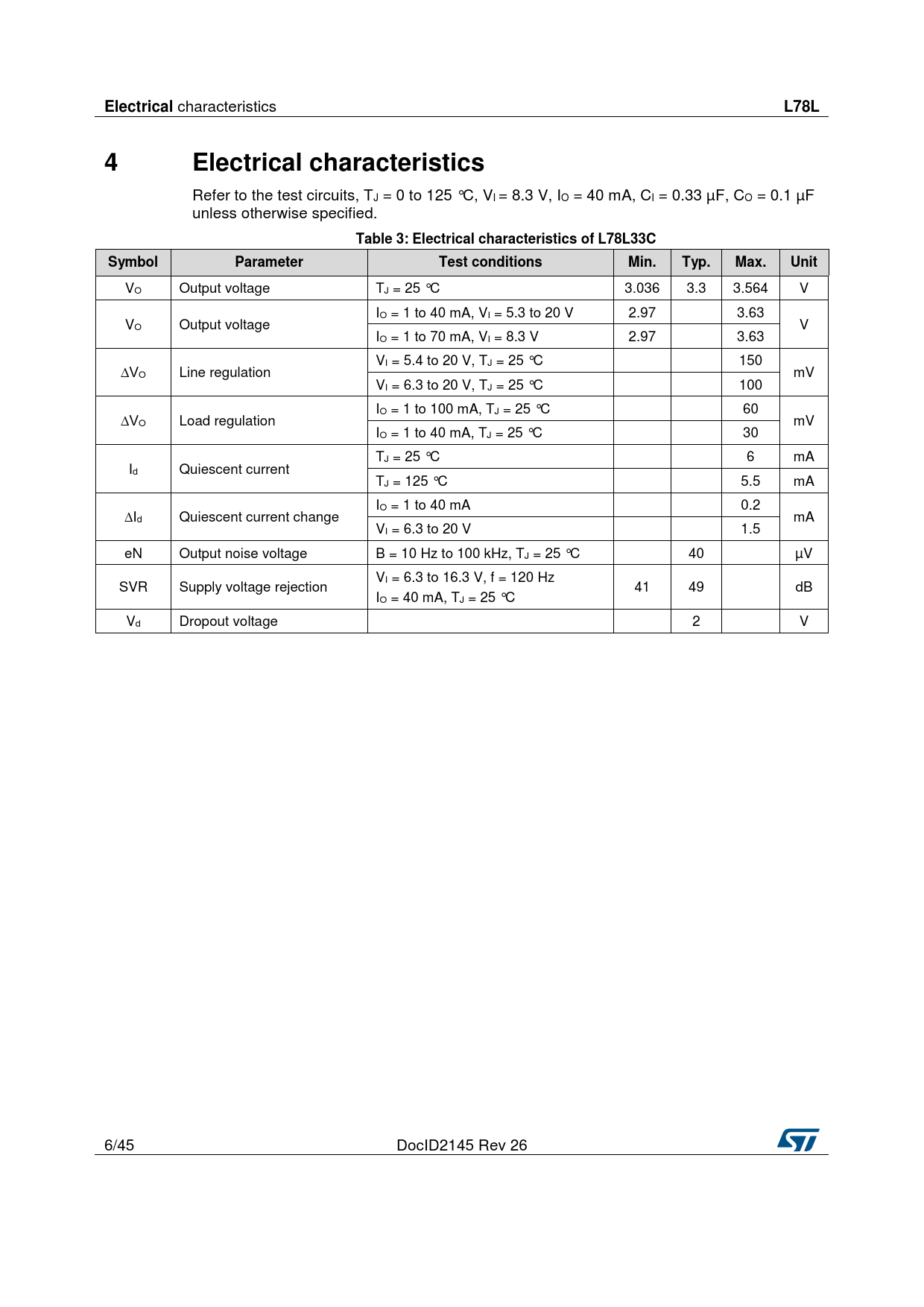

L78L 4 Electrical characteristics
Refer to the test circuits, TJ = 0 to 125 °C, VI = 8.3 V, IO = 40 mA, CI = 0.33 µF, CO = 0.1 µF unless otherwise specified.
Table 3: Electrical characteristics of L78L33C Symbol Parameter Test conditions Min. Typ. Max. Unit
VO Output voltage TJ = 25 °C 3.036 3.3 3.564 V IO = 1 to 40 mA, VI = 5.3 to 20 V 2.97 3.63 VO Output voltage V IO = 1 to 70 mA, VI = 8.3 V 2.97 3.63 VI = 5.4 to 20 V, TJ = 25 °C 150 ∆VO Line regulation mV VI = 6.3 to 20 V, TJ = 25 °C 100 IO = 1 to 100 mA, TJ = 25 °C 60 ∆VO Load regulation mV IO = 1 to 40 mA, TJ = 25 °C 30 TJ = 25 °C 6 mA Id Quiescent current TJ = 125 °C 5.5 mA IO = 1 to 40 mA 0.2 ∆Id Quiescent current change mA VI = 6.3 to 20 V 1.5 eN Output noise voltage B = 10 Hz to 100 kHz, TJ = 25 °C 40 µV VI = 6.3 to 16.3 V, f = 120 Hz SVR Supply voltage rejection 41 49 dB IO = 40 mA, TJ = 25 °C Vd Dropout voltage 2 V 6/45 DocID2145 Rev 26
