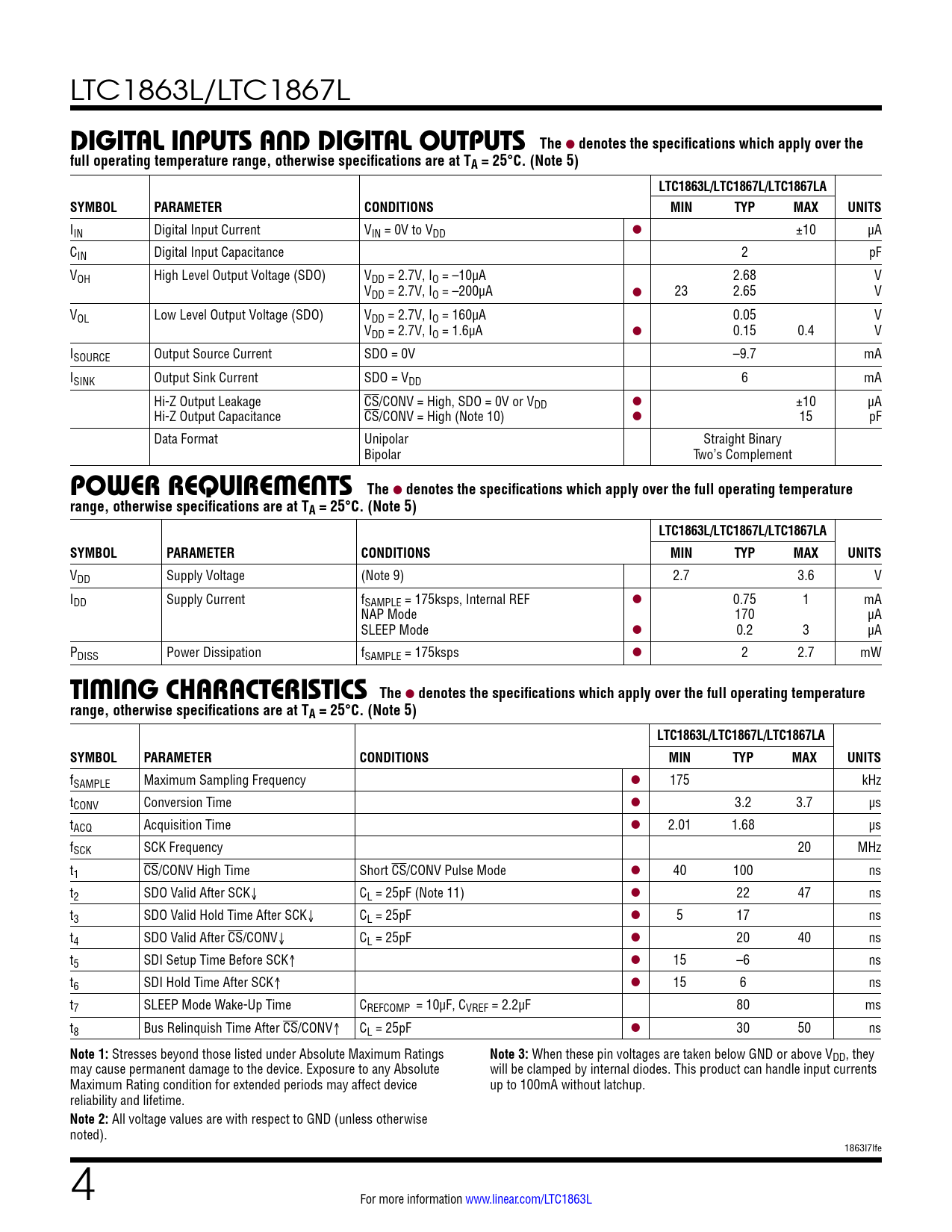

DIGITAL INPUTS AND DIGITAL OUTPUTS The. denotes the specifications which apply over the
Modelllinie für dieses Datenblatt
Textversion des Dokuments
LTC1863L/LTC1867L
DIGITAL INPUTS AND DIGITAL OUTPUTS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 5) LTC1863L/LTC1867L/LTC1867LA SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IIN Digital Input Current VIN = 0V to VDD l ±10 µA CIN Digital Input Capacitance 2 pF VOH High Level Output Voltage (SDO) VDD = 2.7V, IO = –10µA 2.68 V VDD = 2.7V, IO = –200µA l 23 2.65 V VOL Low Level Output Voltage (SDO) VDD = 2.7V, IO = 160µA 0.05 V VDD = 2.7V, IO = 1.6µA l 0.15 0.4 V ISOURCE Output Source Current SDO = 0V –9.7 mA ISINK Output Sink Current SDO = VDD 6 mA Hi-Z Output Leakage CS/CONV = High, SDO = 0V or VDD l ±10 µA Hi-Z Output Capacitance CS/CONV = High (Note 10) l 15 pF Data Format Unipolar Straight Binary Bipolar Two’s Complement
POWER REQUIREMENTS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 5) LTC1863L/LTC1867L/LTC1867LA SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VDD Supply Voltage (Note 9) 2.7 3.6 V IDD Supply Current fSAMPLE = 175ksps, Internal REF l 0.75 1 mA NAP Mode 170 µA SLEEP Mode l 0.2 3 µA PDISS Power Dissipation fSAMPLE = 175ksps l 2 2.7 mW
TIMING CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 5) LTC1863L/LTC1867L/LTC1867LA SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
fSAMPLE Maximum Sampling Frequency l 175 kHz tCONV Conversion Time l 3.2 3.7 µs tACQ Acquisition Time l 2.01 1.68 µs fSCK SCK Frequency 20 MHz t1 CS/CONV High Time Short CS/CONV Pulse Mode l 40 100 ns t2 SDO Valid After SCK↓ CL = 25pF (Note 11) l 22 47 ns t3 SDO Valid Hold Time After SCK↓ CL = 25pF l 5 17 ns t4 SDO Valid After CS/CONV↓ CL = 25pF l 20 40 ns t5 SDI Setup Time Before SCK↑ l 15 –6 ns t6 SDI Hold Time After SCK↑ l 15 6 ns t7 SLEEP Mode Wake-Up Time CREFCOMP = 10µF, CVREF = 2.2µF 80 ms t8 Bus Relinquish Time After CS/CONV↑ CL = 25pF l 30 50 ns
