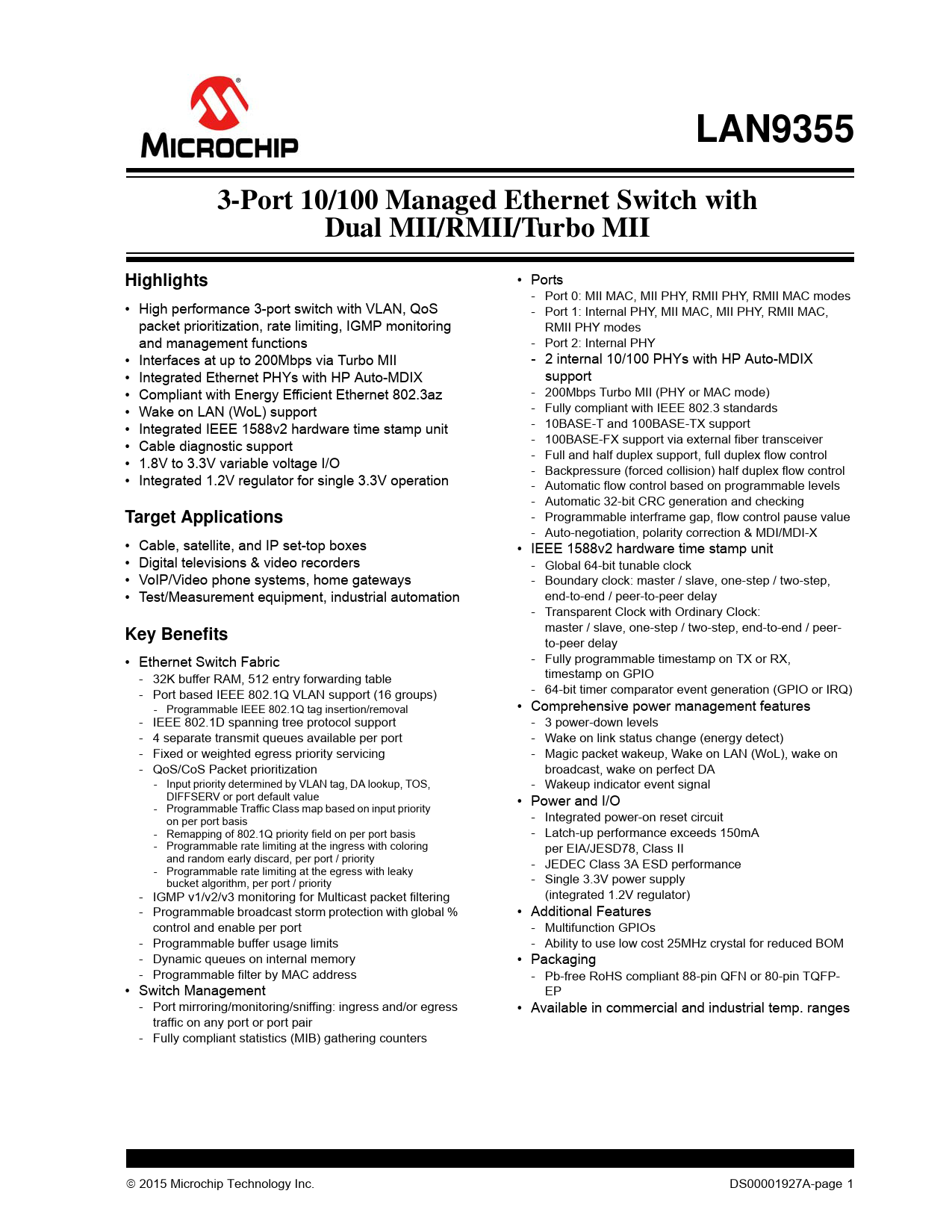

LAN9355 3-Port 10/100 Managed Ethernet Switch with Dual MII/RMII/Turbo MII Highlights
• Ports - Port 0: MII MAC, MII PHY, RMII PHY, RMII MAC modes • High performance 3-port switch with VLAN, QoS - Port 1: Internal PHY, MII MAC, MII PHY, RMII MAC, packet prioritization, rate limiting, IGMP monitoring RMII PHY modes and management functions - Port 2: Internal PHY • Interfaces at up to 200Mbps via Turbo MII - 2 internal 10/100 PHYs with HP Auto-MDIX • Integrated Ethernet PHYs with HP Auto-MDIX support • Compliant with Energy Efficient Ethernet 802.3az - 200Mbps Turbo MII (PHY or MAC mode) • Wake on LAN (WoL) support - Fully compliant with IEEE 802.3 standards • Integrated IEEE 1588v2 hardware time stamp unit - 10BASE-T and 100BASE-TX support • Cable diagnostic support - 100BASE-FX support via external fiber transceiver - Full and half duplex support, full duplex flow control • 1.8V to 3.3V variable voltage I/O - Backpressure (forced collision) half duplex flow control • Integrated 1.2V regulator for single 3.3V operation - Automatic flow control based on programmable levels - Automatic 32-bit CRC generation and checking
Target Applications
- Programmable interframe gap, flow control pause value - Auto-negotiation, polarity correction & MDI/MDI-X • Cable, satellite, and IP set-top boxes • IEEE 1588v2 hardware time stamp unit • Digital televisions & video recorders - Global 64-bit tunable clock • VoIP/Video phone systems, home gateways - Boundary clock: master / slave, one-step / two-step, • Test/Measurement equipment, industrial automation end-to-end / peer-to-peer delay - Transparent Clock with Ordinary Clock:
