Datasheet KSZ8873MLL, KSZ8873FLL, KSZ8873RLL (Microchip)

HerstellerMicrochip
BeschreibungIntegrated 3-Port 10/100 Managed Switch with PHYs
Seiten / Seite95 / 1 — KSZ8873MLL/FLL/RLL. Integrated 3-Port 10/100 Managed Switch. with PHYs. …
Dateiformat / GrößePDF / 1.4 Mb
DokumentenspracheEnglisch

KSZ8873MLL/FLL/RLL. Integrated 3-Port 10/100 Managed Switch. with PHYs. Features. Applications

Datasheet KSZ8873MLL, KSZ8873FLL, KSZ8873RLL Microchip

Modelllinie für dieses Datenblatt

Textversion des Dokuments

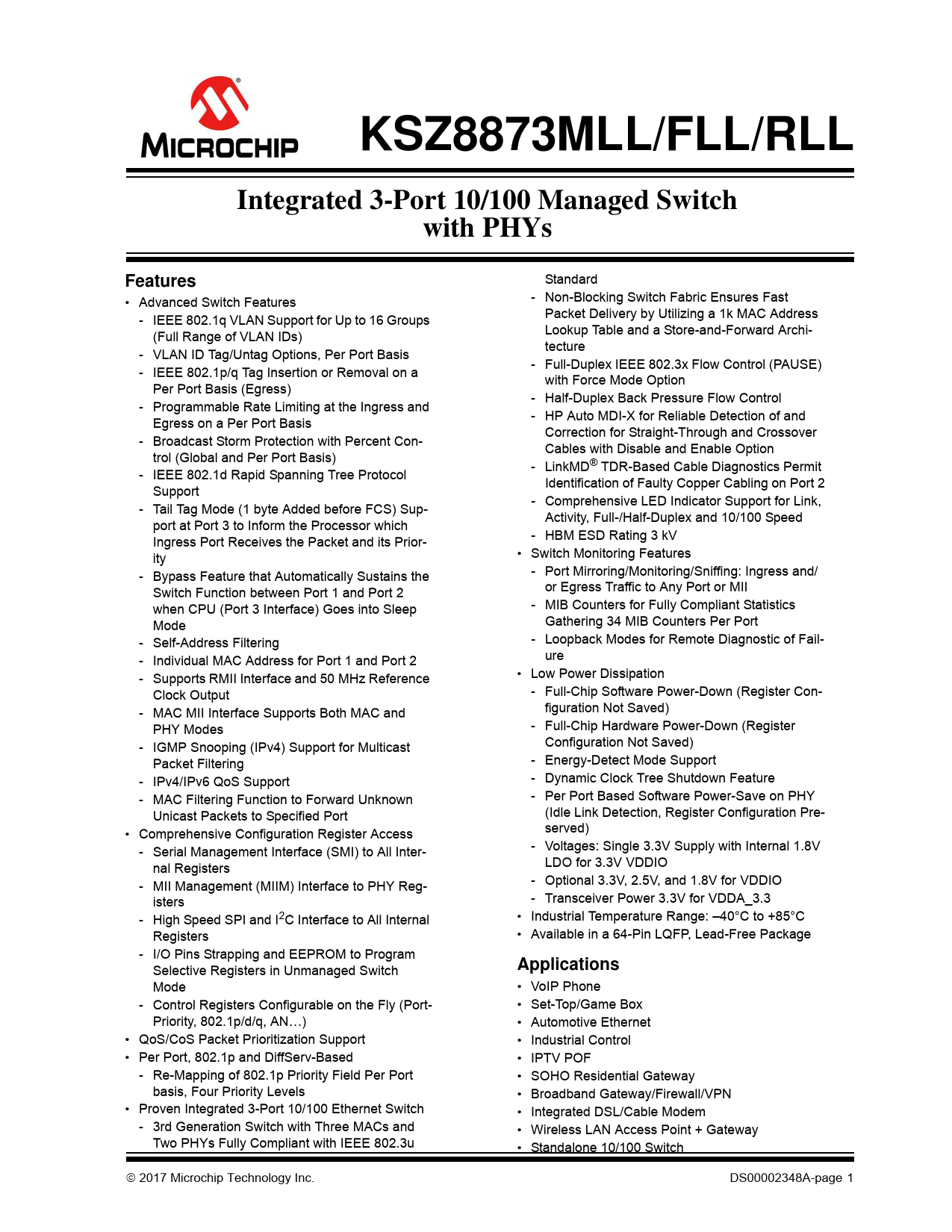

KSZ8873MLL/FLL/RLL Integrated 3-Port 10/100 Managed Switch with PHYs Features
Standard • Advanced Switch Features - Non-Blocking Switch Fabric Ensures Fast - IEEE 802.1q VLAN Support for Up to 16 Groups Packet Delivery by Utilizing a 1k MAC Address (Full Range of VLAN IDs) Lookup Table and a Store-and-Forward Archi- tecture - VLAN ID Tag/Untag Options, Per Port Basis - Full-Duplex IEEE 802.3x Flow Control (PAUSE) - IEEE 802.1p/q Tag Insertion or Removal on a with Force Mode Option Per Port Basis (Egress) - Half-Duplex Back Pressure Flow Control - Programmable Rate Limiting at the Ingress and Egress on a Per Port Basis - HP Auto MDI-X for Reliable Detection of and Correction for Straight-Through and Crossover - Broadcast Storm Protection with Percent Con- Cables with Disable and Enable Option trol (Global and Per Port Basis) - LinkMD® TDR-Based Cable Diagnostics Permit - IEEE 802.1d Rapid Spanning Tree Protocol Identification of Faulty Copper Cabling on Port 2 Support - Comprehensive LED Indicator Support for Link, - Tail Tag Mode (1 byte Added before FCS) Sup- Activity, Full-/Half-Duplex and 10/100 Speed port at Port 3 to Inform the Processor which Ingress Port Receives the Packet and its Prior- - HBM ESD Rating 3 kV ity • Switch Monitoring Features - Bypass Feature that Automatically Sustains the - Port Mirroring/Monitoring/Sniffing: Ingress and/ Switch Function between Port 1 and Port 2 or Egress Traffic to Any Port or MII when CPU (Port 3 Interface) Goes into Sleep - MIB Counters for Fully Compliant Statistics Mode Gathering 34 MIB Counters Per Port - Self-Address Filtering - Loopback Modes for Remote Diagnostic of Fail- - Individual MAC Address for Port 1 and Port 2 ure - Supports RMII Interface and 50 MHz Reference • Low Power Dissipation Clock Output - Full-Chip Software Power-Down (Register Con- - MAC MII Interface Supports Both MAC and figuration Not Saved) PHY Modes - Full-Chip Hardware Power-Down (Register - IGMP Snooping (IPv4) Support for Multicast Configuration Not Saved) Packet Filtering - Energy-Detect Mode Support - IPv4/IPv6 QoS Support - Dynamic Clock Tree Shutdown Feature - MAC Filtering Function to Forward Unknown - Per Port Based Software Power-Save on PHY Unicast Packets to Specified Port (Idle Link Detection, Register Configuration Pre- • Comprehensive Configuration Register Access served) - Serial Management Interface (SMI) to All Inter- - Voltages: Single 3.3V Supply with Internal 1.8V nal Registers LDO for 3.3V VDDIO - MII Management (MIIM) Interface to PHY Reg- - Optional 3.3V, 2.5V, and 1.8V for VDDIO isters - Transceiver Power 3.3V for VDDA_3.3 - High Speed SPI and I2C Interface to All Internal • Industrial Temperature Range: –40°C to +85°C Registers • Available in a 64-Pin LQFP, Lead-Free Package - I/O Pins Strapping and EEPROM to Program Selective Registers in Unmanaged Switch
Applications
Mode • VoIP Phone - Control Registers Configurable on the Fly (Port- • Set-Top/Game Box Priority, 802.1p/d/q, AN…) • Automotive Ethernet • QoS/CoS Packet Prioritization Support • Industrial Control • Per Port, 802.1p and DiffServ-Based • IPTV POF - Re-Mapping of 802.1p Priority Field Per Port • SOHO Residential Gateway basis, Four Priority Levels • Broadband Gateway/Firewall/VPN • Proven Integrated 3-Port 10/100 Ethernet Switch • Integrated DSL/Cable Modem - 3rd Generation Switch with Three MACs and • Wireless LAN Access Point + Gateway Two PHYs Fully Compliant with IEEE 802.3u • Standalone 10/100 Switch  2017 Microchip Technology Inc. DS00002348A-page 1 Document Outline 1.0 Introduction 1.1 General Description 2.0 Pin Description and Configuration 3.0 Functional Description 3.1 Physical Layer Transceiver 3.2 Power Management 3.3 MAC and Switch 3.4 Advanced Switch Functions 3.5 Spanning Tree Support 3.6 Rapid Spanning Tree Support 3.7 Tail Tagging Mode 3.8 IGMP Support 3.9 Port Mirroring Support 3.10 Rate Limiting Support 3.11 Unicast MAC Address Filtering 3.12 Configuration Interface 3.13 Loopback Support 4.0 Register Descriptions 4.1 MII Management (MIIM) Registers 4.2 Register Descriptions 4.3 Memory Map (8-Bit Registers) 4.4 Register Descriptions 4.5 Advanced Control Registers (Registers 96-198) 4.6 Static MAC Address Table 4.7 VLAN Table 4.8 Dynamic MAC Address Table 4.9 Management Information Base (MIB) Counters 5.0 Operational Characteristics 5.1 Absolute Maximum Ratings* 5.2 Operating Ratings** 6.0 Electrical Characteristics 7.0 Timing Specifications 7.1 EEPROM Timing 7.2 MAC Mode MII Timing 7.3 PHY Mode MII Timing 7.4 RMII Timing 7.5 I2C Slave Mode Timing 7.6 SPI Input Timing 7.7 SPI Output Timing 7.8 Auto-Negotiation Timing 7.9 MDC/MDIO Timing 7.10 Reset Timing 8.0 Reset Circuit 9.0 Selection of Isolation Transformers 10.0 Package Outline Appendix A: Data Sheet Revision History Product Identification System Worldwide Sales and Service
