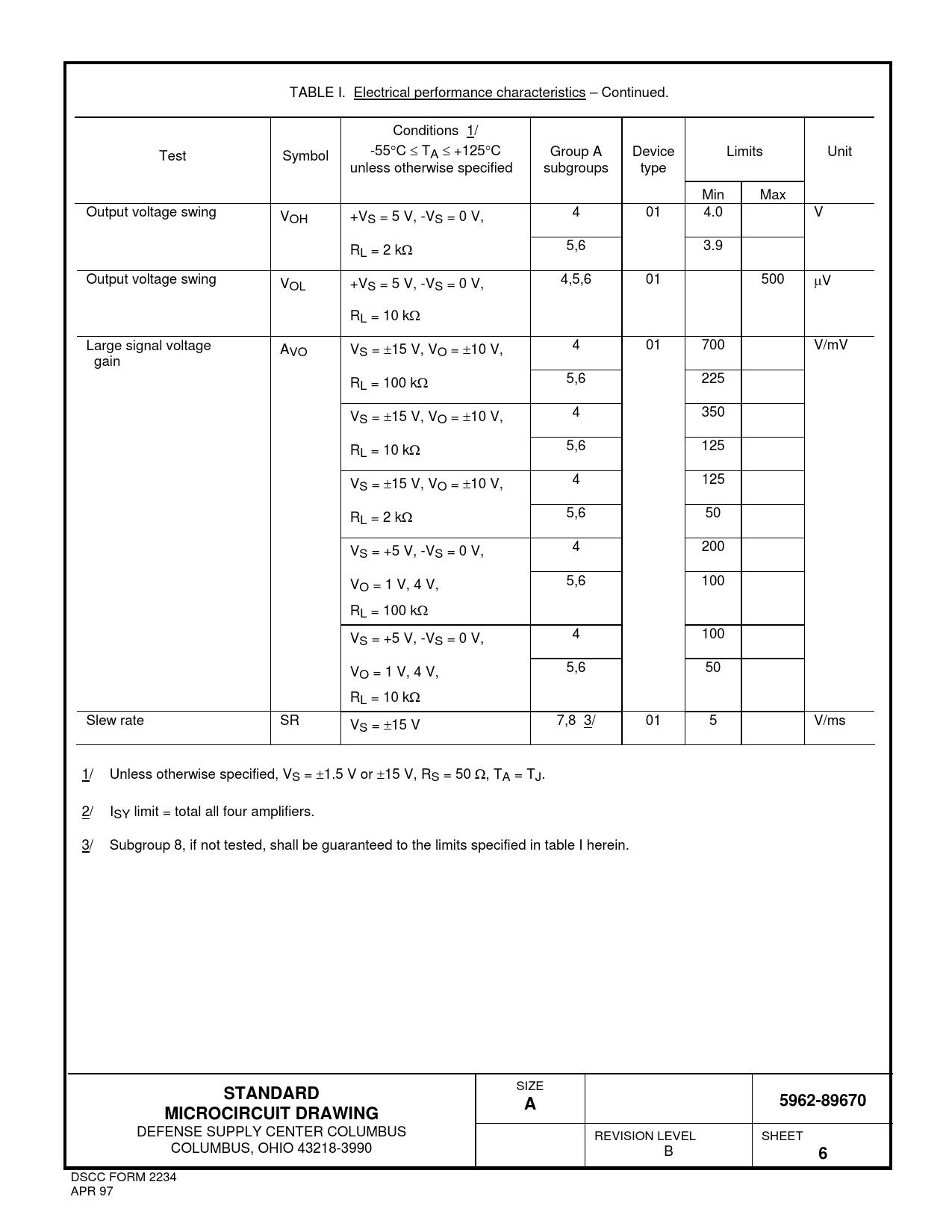

TABLE I. Electrical performance characteristics – Continued. Conditions 1/ Test Symbol -55°C ≤ TA ≤ +125°C Group A Device Limits Unit unless otherwise specified subgroups type Min Max Output voltage swing VOH +VS = 5 V, -VS = 0 V, 4 01 4.0 V RL = 2 kΩ 5,6 3.9 Output voltage swing VOL +VS = 5 V, -VS = 0 V, 4,5,6 01 500 μV RL = 10 kΩ Large signal voltage AVO VS = ±15 V, VO = ±10 V, 4 01 700 V/mV gain RL = 100 kΩ 5,6 225 VS = ±15 V, VO = ±10 V, 4 350 RL = 10 kΩ 5,6 125 VS = ±15 V, VO = ±10 V, 4 125 RL = 2 kΩ 5,6 50 VS = +5 V, -VS = 0 V, 4 200 V 5,6 100 O = 1 V, 4 V, RL = 100 kΩ VS = +5 V, -VS = 0 V, 4 100 V 5,6 50 O = 1 V, 4 V, RL = 10 kΩ Slew rate SR VS = ±15 V 7,8 3/ 01 5 V/ms 1/ Unless otherwise specified, VS = ±1.5 V or ±15 V, RS = 50 Ω, TA = TJ. 2/ ISY limit = total all four amplifiers. 3/ Subgroup 8, if not tested, shall be guaranteed to the limits specified in table I herein.
