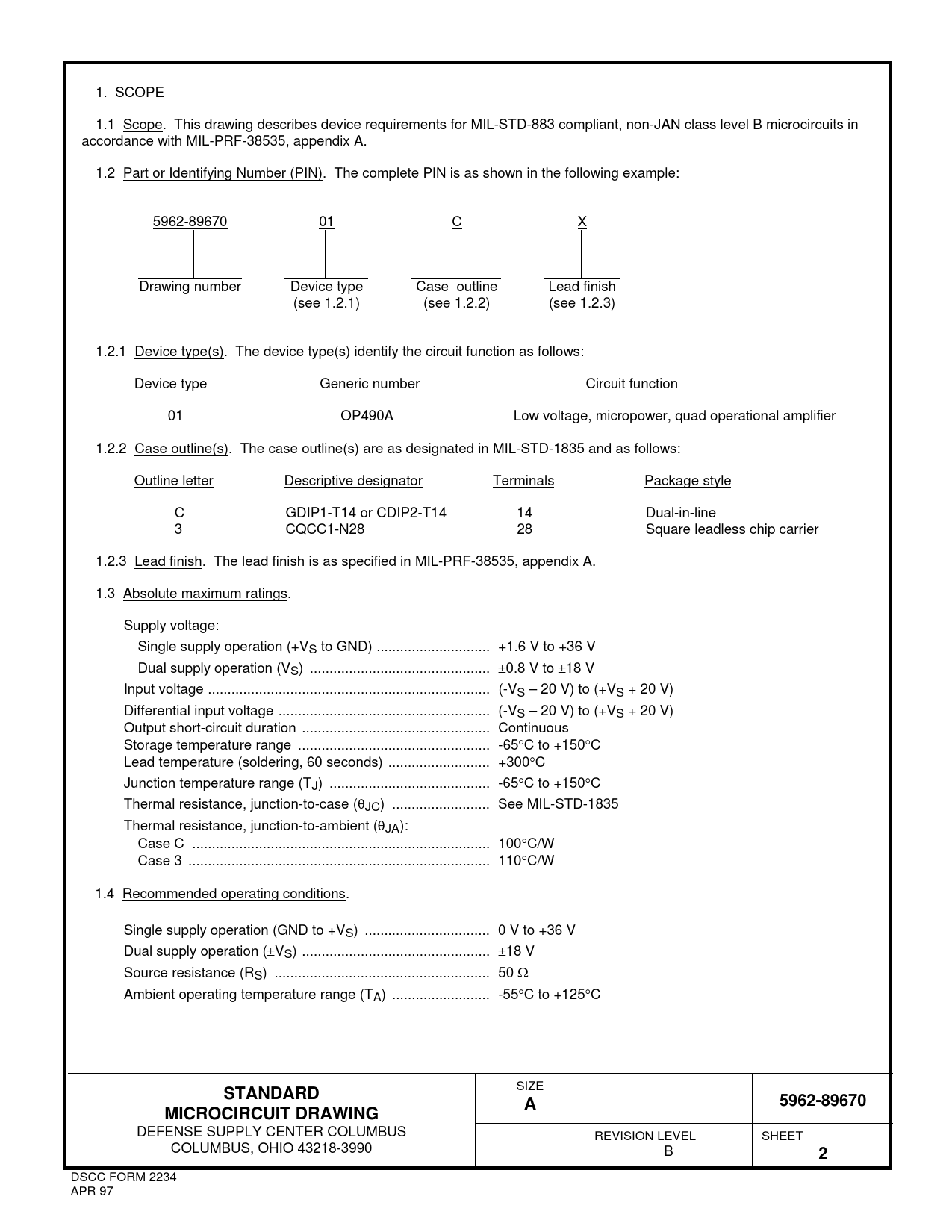

1. SCOPE 1.1 Scope. This drawing describes device requirements for MIL-STD-883 compliant, non-JAN class level B microcircuits in accordance with MIL-PRF-38535, appendix A. 1.2 Part or Identifying Number (PIN). The complete PIN is as shown in the following example: 5962-89670 01 C X Drawing number Device type Case outline Lead finish (see 1.2.1) (see 1.2.2) (see 1.2.3) 1.2.1 Device type(s). The device type(s) identify the circuit function as follows: Device type Generic number Circuit function 01 OP490A Low voltage, micropower, quad operational amplifier 1.2.2 Case outline(s). The case outline(s) are as designated in MIL-STD-1835 and as follows: Outline letter Descriptive designator Terminals Package style C GDIP1-T14 or CDIP2-T14 14 Dual-in-line 3 CQCC1-N28 28 Square leadless chip carrier 1.2.3 Lead finish. The lead finish is as specified in MIL-PRF-38535, appendix A. 1.3 Absolute maximum ratings. Supply voltage: Single supply operation (+VS to GND) ... +1.6 V to +36 V Dual supply operation (VS) .. ±0.8 V to ±18 V Input voltage .. (-VS – 20 V) to (+VS + 20 V) Differential input voltage .. (-VS – 20 V) to (+VS + 20 V) Output short-circuit duration .. Continuous Storage temperature range ... -65°C to +150°C Lead temperature (soldering, 60 seconds) .. +300°C Junction temperature range (TJ) ... -65°C to +150°C Thermal resistance, junction-to-case (θJC) ... See MIL-STD-1835 Thermal resistance, junction-to-ambient (θJA): Case C .. 100°C/W Case 3 ... 110°C/W 1.4 Recommended operating conditions. Single supply operation (GND to +VS) .. 0 V to +36 V Dual supply operation (±VS) .. ±18 V Source resistance (RS) ... 50 Ω Ambient operating temperature range (TA) ... -55°C to +125°C
