Datasheet OP497 (Analog Devices) - 5

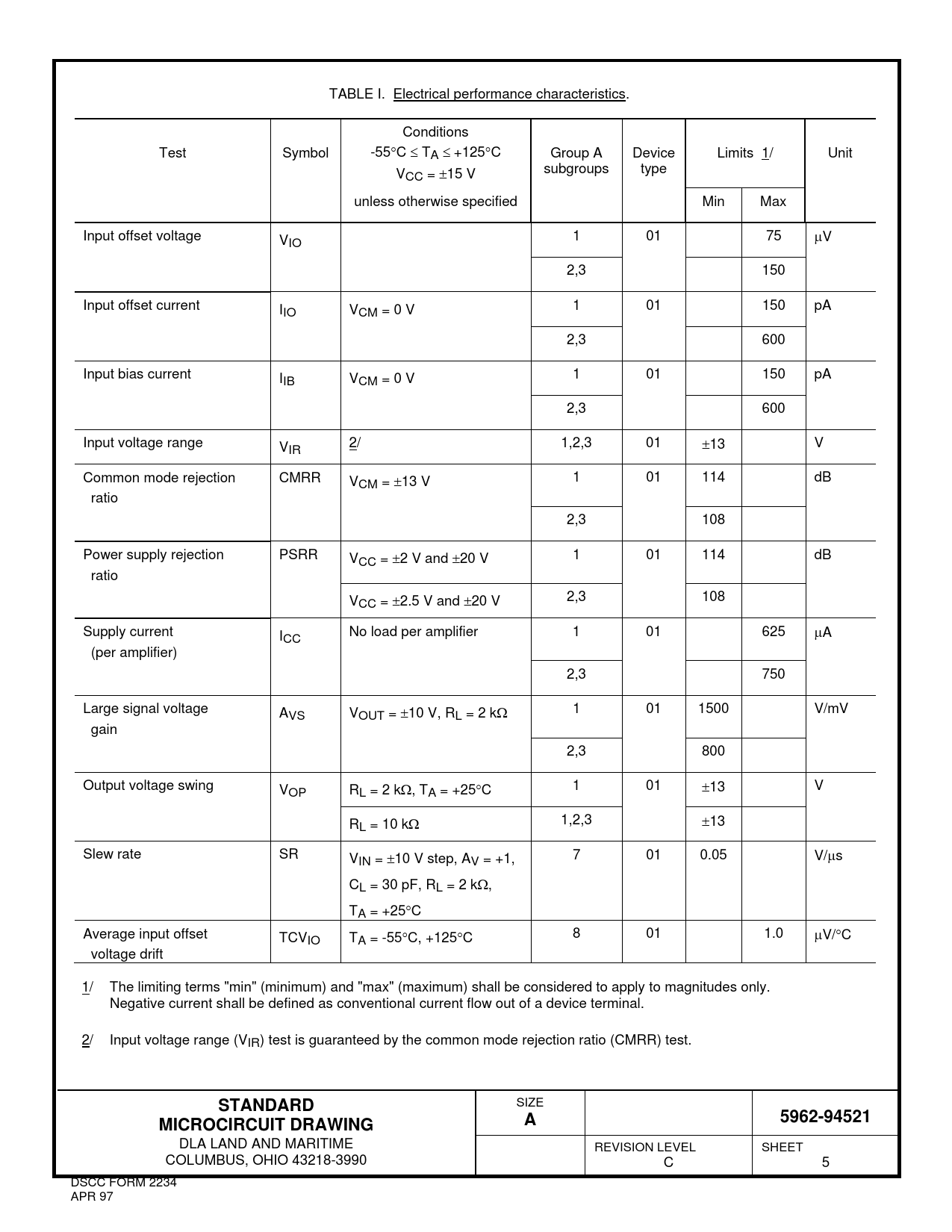

TABLE I. Electrical performance characteristics. Conditions Test Symbol -55C  TA +125C Group A Device Limits 1/ Unit V subgroups type CC = 15 V unless otherwise specified Min Max Input offset voltage VIO 1 01 75 V 2,3 150 Input offset current IIO VCM = 0 V 1 01 150 pA 2,3 600 Input bias current IIB VCM = 0 V 1 01 150 pA 2,3 600 Input voltage range VIR 2/ 1,2,3 01 13 V Common mode rejection CMRR VCM = 13 V 1 01 114 dB ratio 2,3 108 Power supply rejection PSRR VCC = 2 V and 20 V 1 01 114 dB ratio VCC = 2.5 V and 20 V 2,3 108 Supply current ICC No load per amplifier 1 01 625 A (per amplifier) 2,3 750 Large signal voltage AVS VOUT = 10 V, RL = 2 k 1 01 1500 V/mV gain 2,3 800 Output voltage swing VOP RL = 2 k, TA = +25C 1 01 13 V RL = 10 k 1,2,3 13 Slew rate SR V 7 01 0.05 V/s IN = 10 V step, AV = +1, CL = 30 pF, RL = 2 k, TA = +25C Average input offset TCVIO TA = -55C, +125C 8 01 1.0 V/C voltage drift 1/ The limiting terms "min" (minimum) and "max" (maximum) shall be considered to apply to magnitudes only. Negative current shall be defined as conventional current flow out of a device terminal. 2/ Input voltage range (VIR) test is guaranteed by the common mode rejection ratio (CMRR) test.
STANDARD
SIZE
5962-94521 MICROCIRCUIT DRAWING A
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990 C 5 DSCC FORM 2234 APR 97
