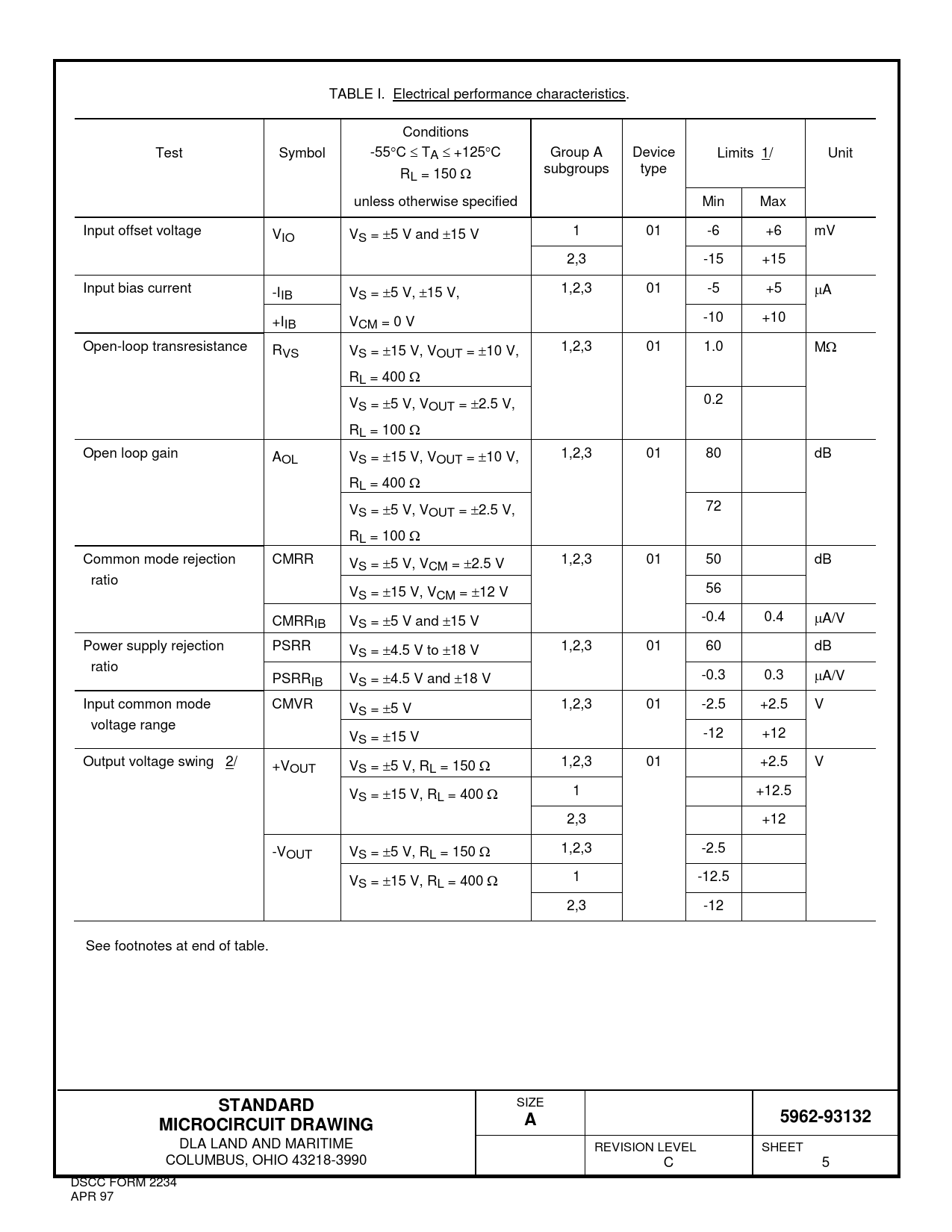

TABLE I. Electrical performance characteristics. Conditions Test Symbol -55°C ≤ TA ≤ +125°C Group A Device Limits 1/ Unit R subgroups type L = 150 Ω unless otherwise specified Min Max Input offset voltage VIO VS = ±5 V and ±15 V 1 01 -6 +6 mV 2,3 -15 +15 Input bias current -IIB VS = ±5 V, ±15 V, 1,2,3 01 -5 +5 µA +IIB VCM = 0 V -10 +10 Open-loop transresistance R 1,2,3 01 1.0 MΩ VS VS = ±15 V, VOUT = ±10 V, RL = 400 Ω V 0.2 S = ±5 V, VOUT = ±2.5 V, RL = 100 Ω Open loop gain A 1,2,3 01 80 dB OL VS = ±15 V, VOUT = ±10 V, RL = 400 Ω V 72 S = ±5 V, VOUT = ±2.5 V, RL = 100 Ω Common mode rejection CMRR VS = ±5 V, VCM = ±2.5 V 1,2,3 01 50 dB ratio VS = ±15 V, VCM = ±12 V 56 CMRRIB VS = ±5 V and ±15 V -0.4 0.4 µA/V Power supply rejection PSRR VS = ±4.5 V to ±18 V 1,2,3 01 60 dB ratio PSRRIB VS = ±4.5 V and ±18 V -0.3 0.3 µA/V Input common mode CMVR VS = ±5 V 1,2,3 01 -2.5 +2.5 V voltage range VS = ±15 V -12 +12 Output voltage swing 2/ +VOUT VS = ±5 V, RL = 150 Ω 1,2,3 01 +2.5 V VS = ±15 V, RL = 400 Ω 1 +12.5 2,3 +12 -VOUT VS = ±5 V, RL = 150 Ω 1,2,3 -2.5 VS = ±15 V, RL = 400 Ω 1 -12.5 2,3 -12 See footnotes at end of table. STANDARD SIZE 5962-93132MICROCIRCUIT DRAWINGA DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990 C 5 DSCC FORM 2234 APR 97 Document Outline DEPARTMENT OF DEFENSE SPECIFICATION DEPARTMENT OF DEFENSE STANDARDS
