Datasheet AD8037-EP (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | Low Distortion, Wide Bandwidth Voltage Feedback Clamp Amp |
| Seiten / Seite | 8 / 6 — AD8037-EP. Enhanced Product. PIN CONFIGURATIONS AND FUNCTION … |
| Dateiformat / Größe | PDF / 175 Kb |
| Dokumentensprache | Englisch |
AD8037-EP. Enhanced Product. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. –INPUT. +VS. +INPUT. TOP VIEW. OUTPUT. (Not to Scale). –VS 4
Modelllinie für dieses Datenblatt
Textversion des Dokuments
AD8037-EP Enhanced Product PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS NC 1 8 VH –INPUT 2 AD8037-EP 7 +VS +INPUT TOP VIEW 3 6 OUTPUT (Not to Scale) –VS 4 5 VL NC = NO CONNECT. DO NOT CONNECT
-003 60
TO THIS PIN.

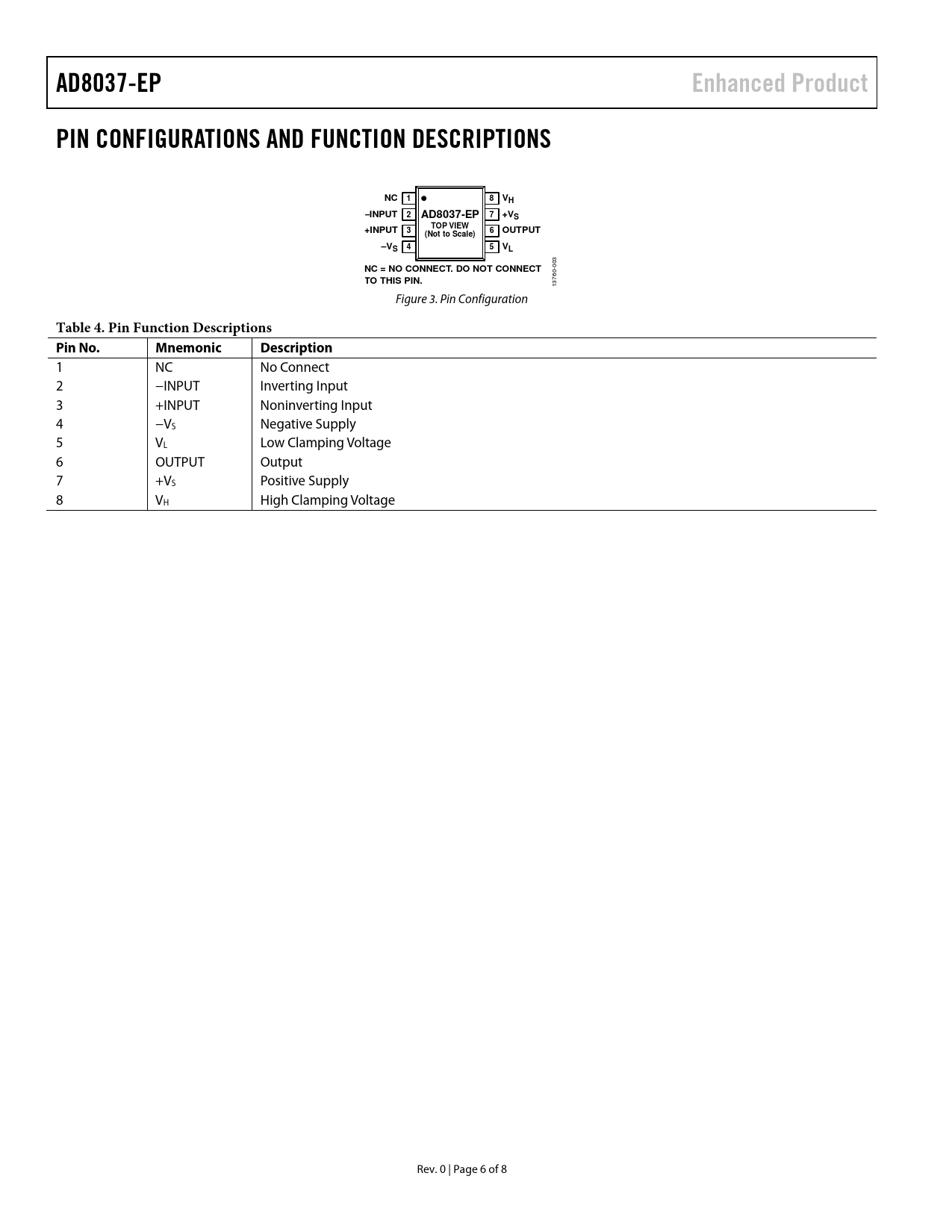

137 Figure 3. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 NC No Connect 2 −INPUT Inverting Input 3 +INPUT Noninverting Input 4 −VS Negative Supply 5 VL Low Clamping Voltage 6 OUTPUT Output 7 +VS Positive Supply 8 VH High Clamping Voltage Rev. 0 | Page 6 of 8 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
