Datasheet AD8065-KGD-CHIP (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | High Performance, 145 MHzFastFET Op Amps |
| Seiten / Seite | 8 / 6 — AD8065-KGD-CHIP. Known Good Die. PAD CONFIGURATION AND FUNCTION … |
| Dateiformat / Größe | PDF / 182 Kb |
| Dokumentensprache | Englisch |

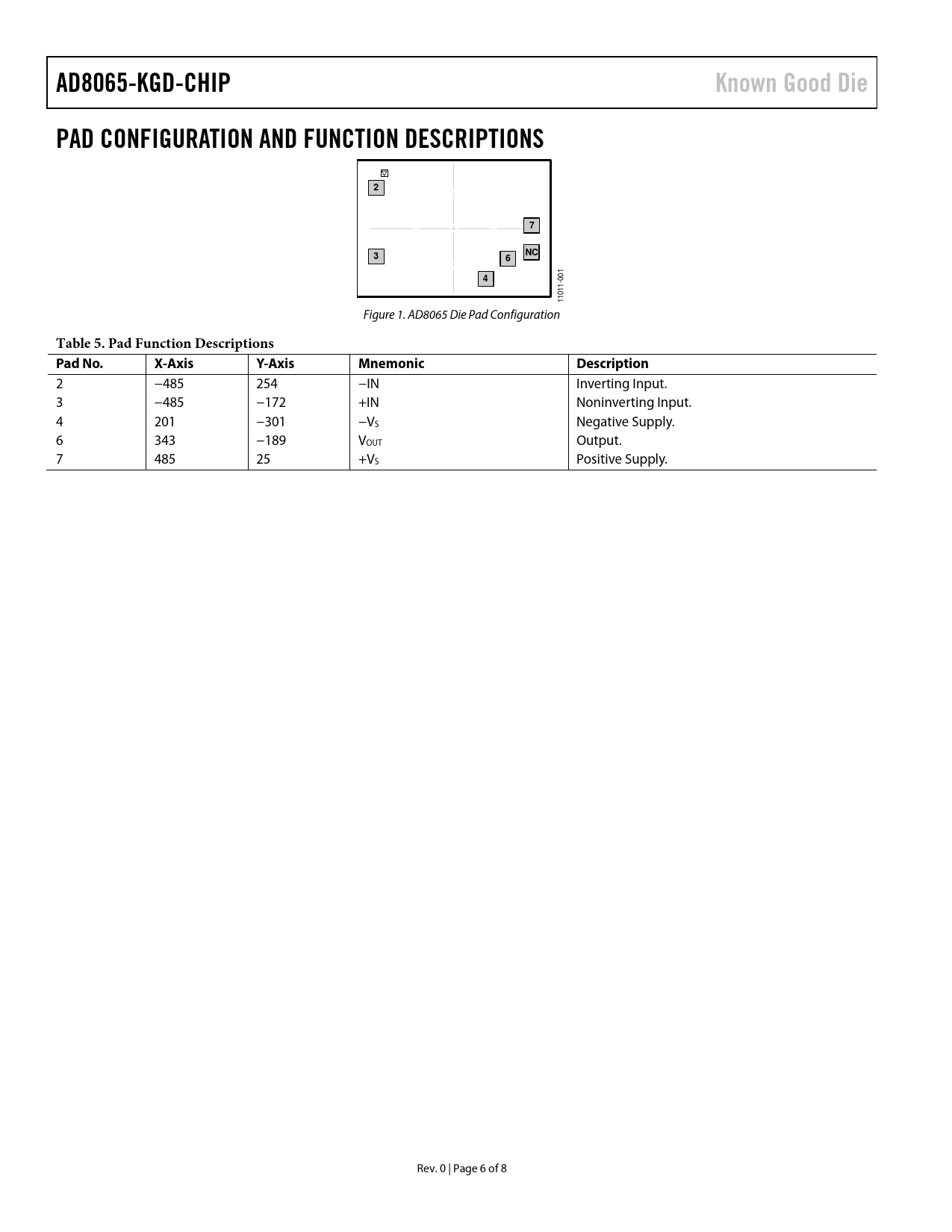

AD8065-KGD-CHIP. Known Good Die. PAD CONFIGURATION AND FUNCTION DESCRIPTIONS. Table 5. Pad Function Descriptions Pad No. X-Axis
Modelllinie für dieses Datenblatt
Textversion des Dokuments
AD8065-KGD-CHIP Known Good Die PAD CONFIGURATION AND FUNCTION DESCRIPTIONS 2 7 NC 3 6 4
001 1- 1 10 1 Figure 1. AD8065 Die Pad Configuration
Table 5. Pad Function Descriptions Pad No. X-Axis Y-Axis Mnemonic Description
2 −485 254 −IN Inverting Input. 3 −485 −172 +IN Noninverting Input. 4 201 −301 −VS Negative Supply. 6 343 −189 VOUT Output. 7 485 25 +VS Positive Supply. Rev. 0 | Page 6 of 8 Document Outline Features Applications General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pad Configuration and Function Descriptions Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide
