Datasheet AD8599 (Analog Devices) - 9
| Hersteller | Analog Devices |
| Beschreibung | Ultralow Distortion, Ultralow Noise Op Amp (Dual) |
| Seiten / Seite | 11 / 9 — DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/16604 |
| Dateiformat / Größe | PDF / 67 Kb |
| Dokumentensprache | Englisch |
DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/16604
Modelllinie für dieses Datenblatt
Textversion des Dokuments

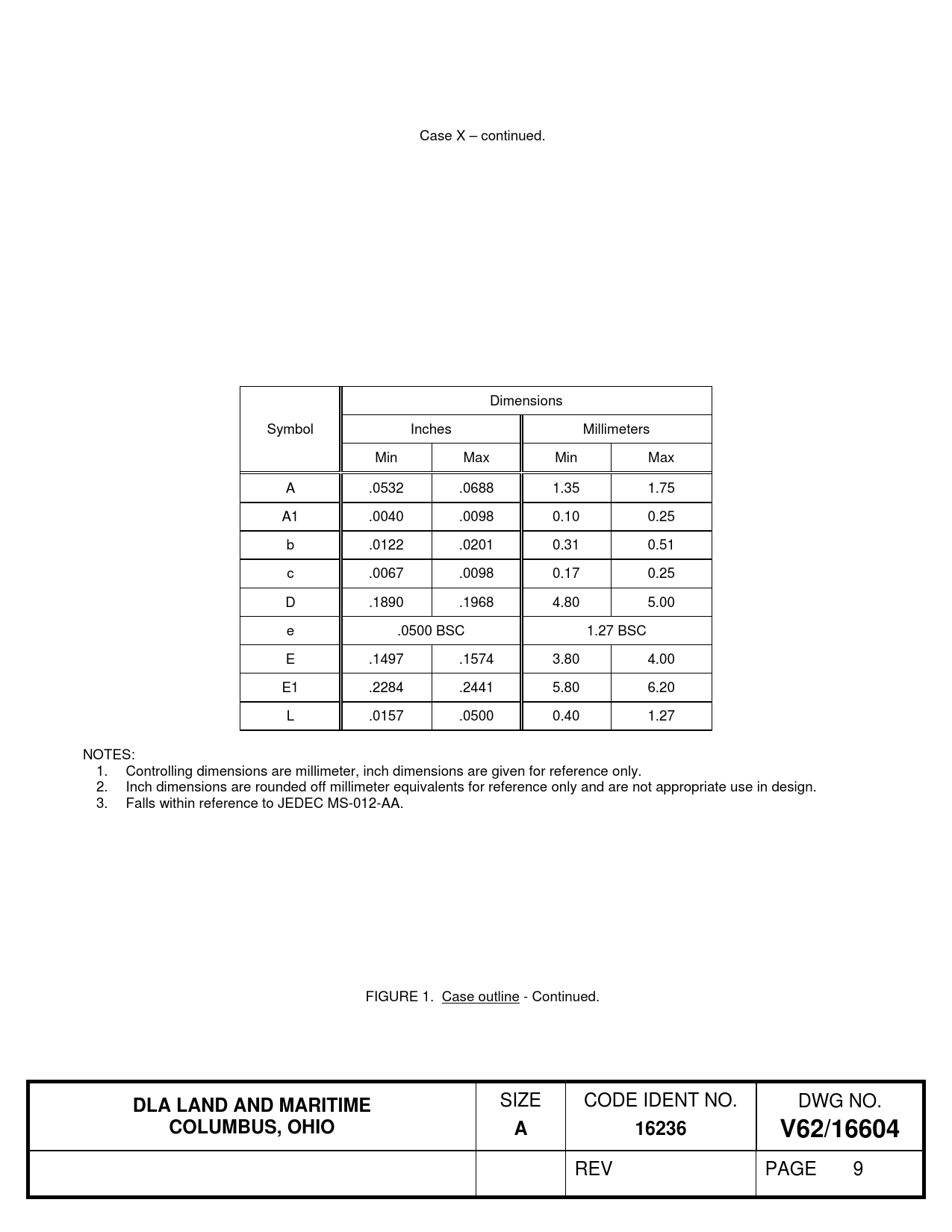

Case X – continued. Dimensions Symbol Inches Millimeters Min Max Min Max A .0532 .0688 1.35 1.75 A1 .0040 .0098 0.10 0.25 b .0122 .0201 0.31 0.51 c .0067 .0098 0.17 0.25 D .1890 .1968 4.80 5.00 e .0500 BSC 1.27 BSC E .1497 .1574 3.80 4.00 E1 .2284 .2441 5.80 6.20 L .0157 .0500 0.40 1.27 NOTES: 1. Controlling dimensions are millimeter, inch dimensions are given for reference only. 2. Inch dimensions are rounded off millimeter equivalents for reference only and are not appropriate use in design. 3. Falls within reference to JEDEC MS-012-AA. FIGURE 1. Case outline - Continued.
