Datasheet EL817 (Everlight)

HerstellerEverlight
Beschreibung4 Pin DIP Phototransistor Photocoupler
Seiten / Seite13 / 1 — 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER. EL817 Series. Features:. …
Dateiformat / GrößePDF / 846 Kb
DokumentenspracheEnglisch

4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER. EL817 Series. Features:. Description. Applications

Datasheet EL817 Everlight

Textversion des Dokuments

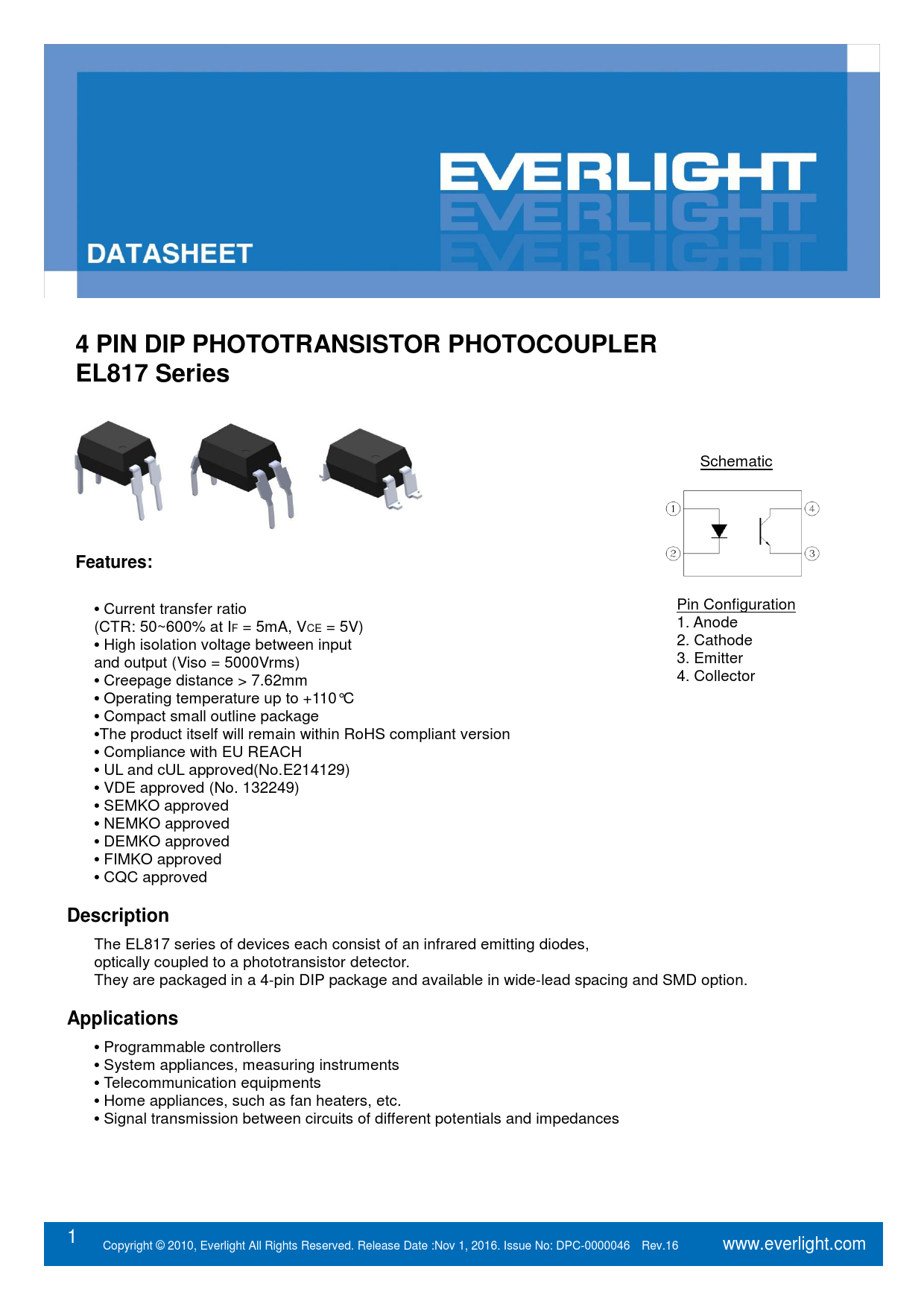

4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER EL817 Series
Schematic
Features:
Current transfer ratio Pin Configuration (CTR: 50~600% at I 1. Anode F = 5mA, VCE = 5V)

High isolation voltage between input 2. Cathode and output (Viso = 5000Vrms) 3. Emitter

Creepage distance > 7.62mm 4. Collector

Operating temperature up to +110°C

Compact small outline package

The product itself will remain within RoHS compliant version

Compliance with EU REACH

UL and cUL approved(No.E214129)

VDE approved (No. 132249)

SEMKO approved

NEMKO approved

DEMKO approved

FIMKO approved

CQC approved
Description
The EL817 series of devices each consist of an infrared emitting diodes, optically coupled to a phototransistor detector. They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option.
Applications
Programmable controllers

System appliances, measuring instruments

Telecommunication equipments

Home appliances, such as fan heaters, etc.

Signal transmission between circuits of different potentials and impedances 1 Copyright © 2010, Everlight All Rights Reserved. Release Date :Nov 1, 2016. Issue No: DPC-0000046 Rev.16 www.everlight.com
